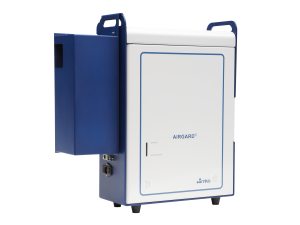

AIRGARD® CWA/HPM/TIC Ambient Air Analyzer
Overview
AIRGARD® and AIRGARD® Plus ambient air analyzers are ultra-sensitive, Fourier Transform Infrared Spectroscopy (FTIR) based gas analyzers designed to rapidly detect toxic gases. These analyzers are capable of detecting parts per billion (ppb) levels of most HPMs and TICs below Threshold Limit Values (TLV) and/or Immediately Dangerous to Life or Health (IDLH) levels within 20 seconds.
- Single-digit parts per billion (ppb) detection of a broad range of threats
- Rapid response - typically less than 20 seconds
- Ethernet connectivity for remote monitoring
- Compact and rugged design for reliable performance
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
AIRGARD-CWA-TIC AIRGARD® CWA/TIC AIRGARD® CWA/TIC, Ambient FTIR Air Analyzer |
|
|||||
|
|
AIRGARD-HPA-TIC AIRGARD® HPA/TIC AIRGARD® HPA/TIC, Ambient FTIR Air Analyzer |
|
|||||
|
AIRGARD® Plus CWA/TIC, Ambient FTIR Air Analyzer, with Electrochemical Sensors
|
AIRGARD-PLUS AIRGARD® Plus AIRGARD® Plus CWA/TIC, Ambient FTIR Air Analyzer, with Electrochemical Sensors |
|
Specifications
-
TypeAIRGARD® CWA/TIC
-
CommunicationTCP/IP (Ethernet)
1 USB port
xML Standard Protocol -
Dimensions18.4 (width) x 25.4 (height) x 7.5 (length) inches
-
Power Requirements120 VAC, 50/60 Hz, 3A, 240 VAC available
-
Weight75 pounds (34.1 kg)
-
Operating Temperature10° to 40°C
-
Operating HumidityUp to 65%
-
ComplianceCE
Features
Resources
Application Notes
- CWA/TIC Detection (98.5 kB, PDF)
- AIRGARD® Plus CWA/TIC Detection (114.1 kB, PDF)
Literature
- AIRGARD® HPA/TIC Ambient Air Analyzer (184.2 kB, PDF)
- AIRGARD® CWA/TIC Ambient Air Analyzer (139.9 kB, PDF)
- AIRGARD® Plus CWA/TIC Ambient Air Analyzer with Ancillary Electrochemical Sensors (163.7 kB, PDF)
