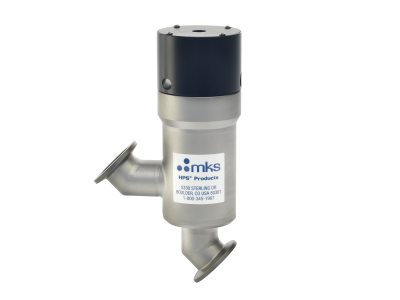

HCV High-cycle Bellows Vacuum Isolation Valves
Overview
HCV High-cycle Bellows Vacuum Isolation Valves are small vacuum valves expressly designed for long life in demanding applications. The HCV isolation valve has a small profile, is light, low in cost and is easy to maintain. The HCV valve can be purchased with a high conductance stainless body or without (internal configuration) if being designed to fit directly into the product.
- NW25 - NW50

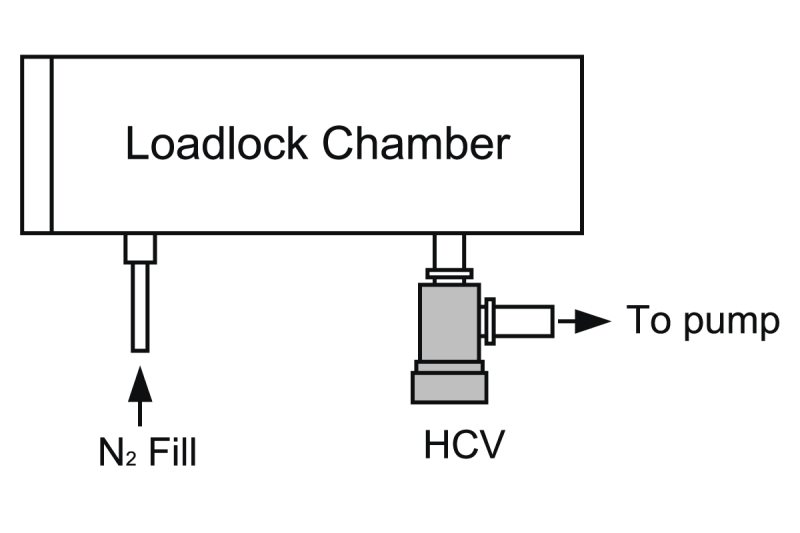

- HV load lock pumping or high cycle applications
- 10,000,000 cycle rating (clean environments)
- Compact low profile, compatible with small footprint designs
- Internal configuration reduces size and can be integrated into load lock chambers
- Spring to close, air to open pneumatic valve, for safety
Products
Configuration Options
The following options are available for High Cycle Valves (HCV)
Ordering Code Example: HCV50-AK-CLV-120
| Configuration Option | Option Code |
|---|---|
| HCV Vacuum Isolation Valve | HCV |
| Flange Size | |
| NW25 | 25 |
| NW40 | 40 |
| NW50 | 50 |
| Body Configuration | |
| Angle | A |
| Inline | I |
| Flange Type | |
| ISO-KF | K |
| Actuator Type | |
| Normally Closed Pneumatic (No Limit Switch) | CN |
| Normally Closed Pneumatic (Limit Switch) | CL |

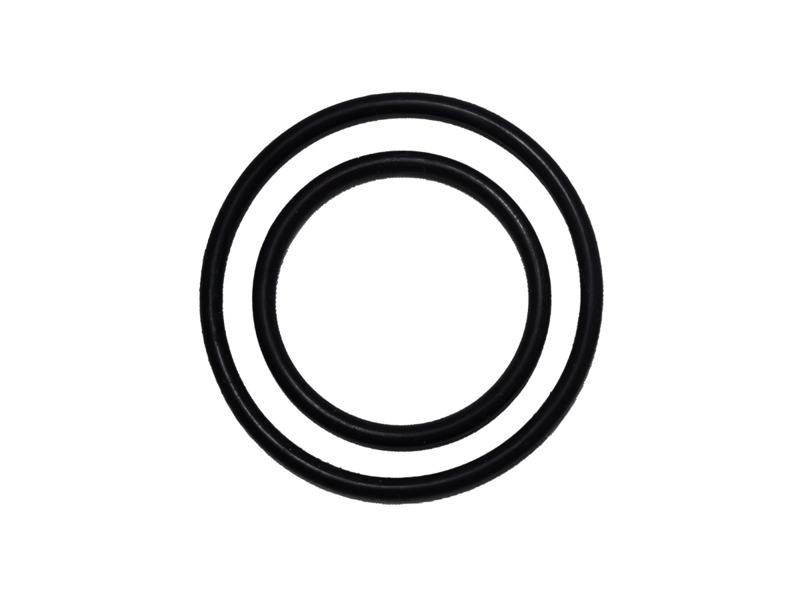

| Seal Type | |
| Viton® | V |
| Kalrez® | K |
| Chemraz® | Z |

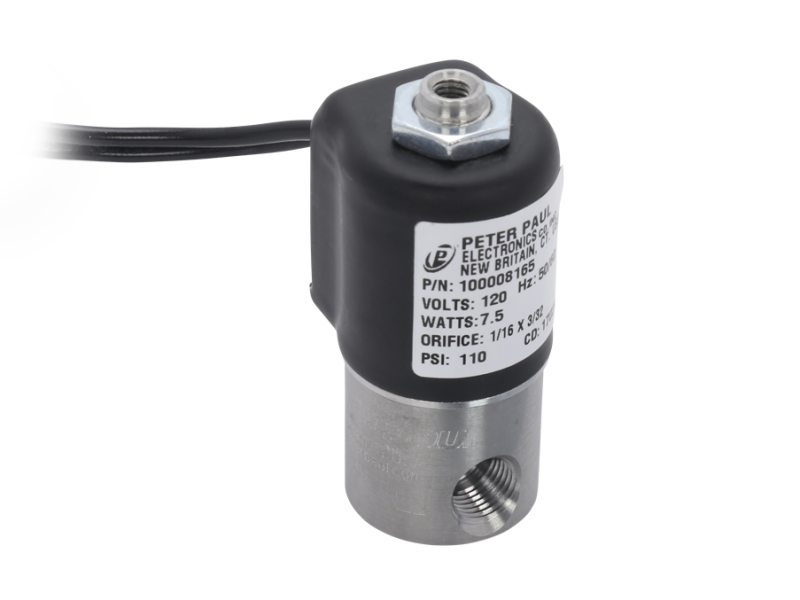

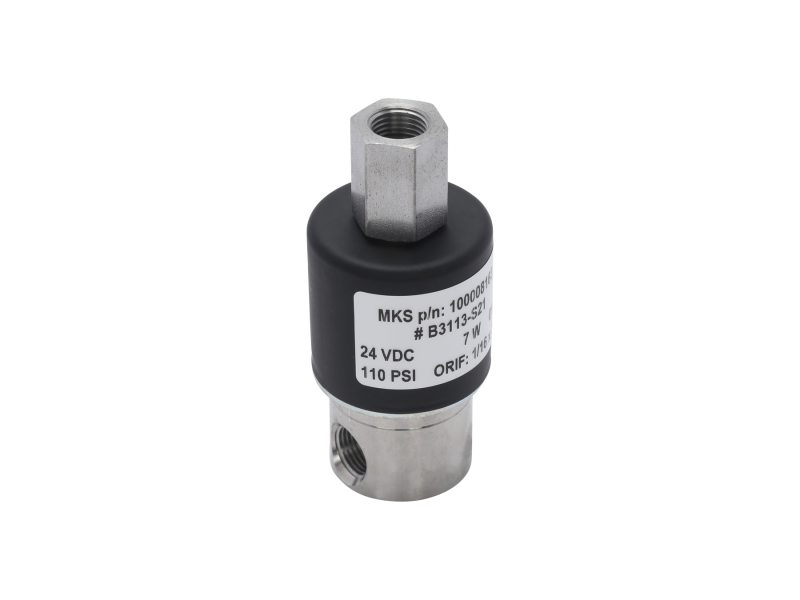

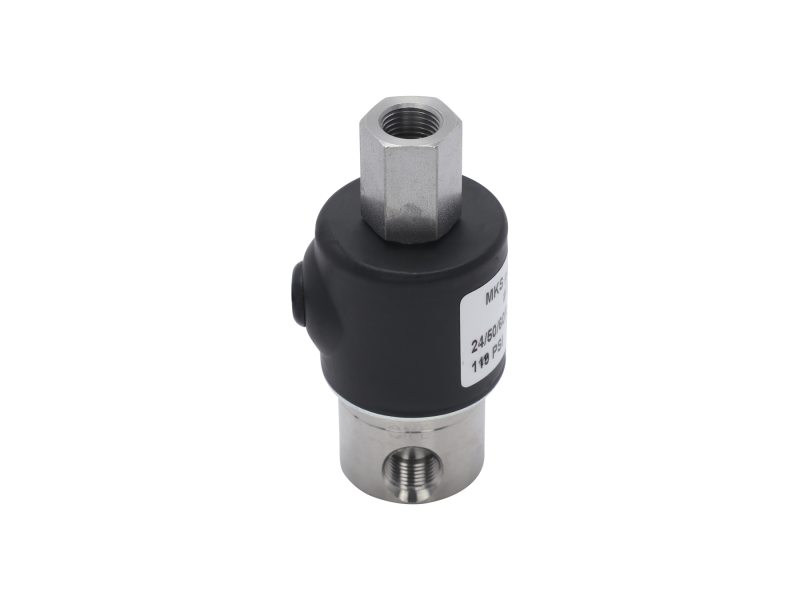

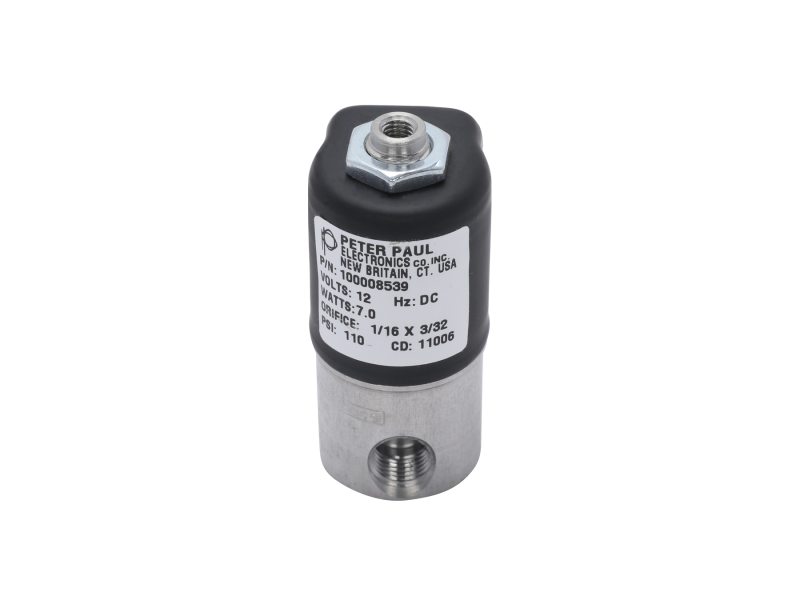

| Solenoid | |
| 12 VDC | 12D |
| 24 VDC | 24D |
| 24 VAC 50/60 Hz | 24A |
| 120 VAC 50/60 Hz | 120 |
| 240 VAC 50/60 Hz | 240 |
| 1/8 inch NPT | None |
Specifications
-
TypeHigh Cycle Valve
-
Vacuum RangeAtmosphere to 1.0 x 10-9 Torr
-
Port SizeNW25, NW40, NW50
-
Helium Leak Rate1.0 x 10-9 std cc/sec
-
Cylinder Volume1.2 - 160 msec, depending on configuration
-
Cylinder Air Pressure90 psig ±30 psig
-
Limit Switch Rating5A - 250 VAC
-
Single Pole, Single Throw5A - 30 VDC
-
Blow-By Pressure80 - 45 psi, depending on configuration
-
Operating Temperature80°C (max)
-
Typical Life10,000,000 cycles in clean non-corrosive environments
-
Weight1.6 - 6.4 pounds, depending on configuration
Features
Resources
Literature
- High Cycle Valves (HCV) (851.7 kB, PDF)
Manuals
- High Cycle Valve Manual (486.6 kB, PDF)
