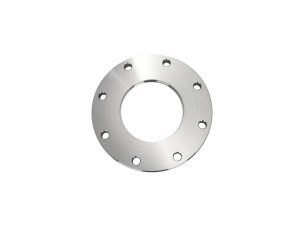

ISO-BF Bored Vacuum Flanges
Overview
ISO-BF bored bolted flanges feature a bore for standard inch tube and piping diameters. They are infinitely rotatable and compatible with NW63 to NW630 size ISO-BF bolted vacuum flanges. Bolted flanges are joined using our ISO flange bolt and nut set.
- Compatible with standard inch size tube and piping
- 304 Stainless Steel construction
- NW63 to NW630 bolted flange sizes
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
100762406 ISO-BF Bored Bolted Flange, NW63, 2.5 in. Bore, 304 Stainless Steel |
|
$101 |
|
|||
|
100762408 ISO-BF Bored Bolted Flange, NW80, 3.0 in. Bore, 304 Stainless Steel |
|
$142 |
|
|||
|
100762410 ISO-BF Bored Bolted Flange, NW100, 4.0 in. Bore, 304 Stainless Steel |
|
$158 |
|
|||
|
|
100762416 ISO-BF Bored Bolted Flange, NW160, 6.0 in. Bore, 304 Stainless Steel | $539 |
|
||||
|
|
100762420 ISO-BF Bored Bolted Flange, NW200, 8.0 in. Bore, 304 Stainless Steel | $710 |
|
||||
|
|
100762425 ISO-BF Bored Bolted Flange, NW250, 10 in. Bore, 304 Stainless Steel | $1,243 |
|
||||
|
|
100762432 ISO-BF Bored Bolted Flange, NW320, 12.75 in. Bore, 304 Stainless Steel | $3,126 |
|
||||
|
|
100762440 ISO-BF Bored Bolted Flange, NW400, 16 in. Bore, 304 Stainless Steel | $3,437 |
|
||||
|
|
100762450 ISO-BF Bored Bolted Flange, NW500, 20 in. Bore, 304 Stainless Steel | $3,241 |
|
||||
|
|
100762463 ISO-BF Bored Bolted Flange, NW630, 24 in. Bore, 304 Stainless Steel | $6,784 |
|
Specifications
-
Component TypeBored Flange
-
SeriesSeries 76
-
Flange TypeISO-BF
-
Material304 Stainless Steel
Features
Resources
Literature
- Series 31 ISO-KF Vacuum Components & Fittings (1.1 MB, PDF)
