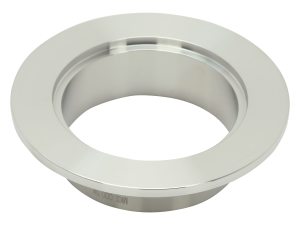

ISO-KF Stainless Steel Short Weld Stub Vacuum Flanges

ISO-KF Stainless Steel Short Weld Stub Vacuum Flanges

Products
Features
Resources
Contact Us

Overview

Stainless Steel short weld stubs have a 13 or 19 mm tube stub and a NW10 to NW50 size ISO-KF vacuum flange. They are used to butt-weld an ISO-KF flange to Stainless Steel tubing.

13 or 19 mm butt-weld stub
304 Stainless Steel construction
NW10 to NW50 flange sizes

See All Features

Products

		Compare	Description	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Flange Size	Tube OD	Length	Availability	Featured Item	Price		Brand
		100310300 ISO-KF Weld Stub Flange, NW10, 0.5 in. Tube OD, 0.5 in. Length, 304 S.S. $11.91 Show	100310300 ISO-KF Weld Stub Flange, NW10, 0.5 in. Tube OD, 0.5 in. Length, 304 S.S.	UNIVERSAL	0.0	1.0	0.0		0.0	NW10	0.5 in.	0.50 in. (12.7 mm)	Show		$11.91
		100310301 ISO-KF Weld Stub Flange, NW16, 0.5 in. Tube OD, 0.5 in. Length, 304 S.S. $11.91 Show	100310301 ISO-KF Weld Stub Flange, NW16, 0.5 in. Tube OD, 0.5 in. Length, 304 S.S.	UNIVERSAL	0.0	1.0	0.0		0.0	NW16	0.5 in.	0.50 in. (12.7 mm)	Show		$11.91
		100310303 ISO-KF Weld Stub Flange, NW25, 1.0 in. Tube OD, 0.5 in. Length, 304 S.S. $13.89 Show	100310303 ISO-KF Weld Stub Flange, NW25, 1.0 in. Tube OD, 0.5 in. Length, 304 S.S.	UNIVERSAL	0.0	1.0	0.0		0.0	NW25	1.0 in.	0.50 in. (12.7 mm)	Show		$13.89
		100310305 ISO-KF Weld Stub Flange, NW40, 1.5 in. Tube OD, 0.75 in. Length, 304 S.S. $18.08 Show	100310305 ISO-KF Weld Stub Flange, NW40, 1.5 in. Tube OD, 0.75 in. Length, 304 S.S.	UNIVERSAL	0.0	1.0	0.0		0.0	NW40	1.5 in.	0.75 in. (19.05 mm)	Show		$18.08
		100310306 ISO-KF Weld Stub Flange, NW50, 2.0 in. Tube OD, 0.75 in. Length, 304 S.S. $27 Show	100310306 ISO-KF Weld Stub Flange, NW50, 2.0 in. Tube OD, 0.75 in. Length, 304 S.S.	UNIVERSAL	0.0	1.0	0.0		0.0	NW50	2.0 in.	0.75 in. (19.05 mm)	Show		$27
		100310311 ISO-KF Weld Stub Flange, NW16, 0.75 in. Tube OD, 0.5 in. Length, 304 S.S. $11.91 Show	100310311 ISO-KF Weld Stub Flange, NW16, 0.75 in. Tube OD, 0.5 in. Length, 304 S.S.	UNIVERSAL	0.0	1.0	0.0		0.0	NW16	0.75 in.	0.50 in. (12.7 mm)	Show		$11.91

Show All

Specifications

Component Type

Short Weld Stub Vacuum Flange
Series

Series 31
Material

304 Stainless Steel

Flange Type

ISO-KF
Wall Thickness

0.065 in. (1.7 mm)

Features

Resources

Literature

Series 31 ISO-KF Vacuum Components & Fittings (1.1 MB, PDF)

Need help?

Contact an Applications Specialist by sending us an email
