Compare Description Drawings, CAD & Specs Flange Size Tube OD Outer Diameter Bore Diameter Inner Diameter Availability Price
100318301
$12.68
100318301 NW16 0.5 in. 0.61 in. (15 mm) 0.51 in. (13 mm) 0.45 in. (11 mm) $12.68
100318303
$12.79
100318303 NW25 1.0 in. 1.13 in. (29 mm) 1.02 in. (26 mm) 0.87 in. (22 mm) $12.79
100318305
$16.98

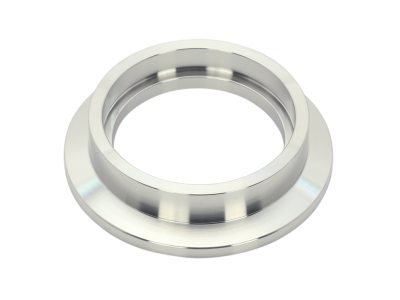

100318305 NW40 1.5 in. 1.75 in. (44 mm) 1.50 in. (38.1 mm) 1.37 in. (35 mm) $16.98
100318306
$26
100318306 NW50 2.0 in. 2.25 in. (57 mm) 2.02 in. (51 mm) 1.87 in. (47 mm) $26
100318311
$12.68
100318311 NW16 0.625 in. 0.77 in. (20 mm) 0.64 in. (16 mm) 0.58 in. (15 mm) $12.68
100318321
$12.08

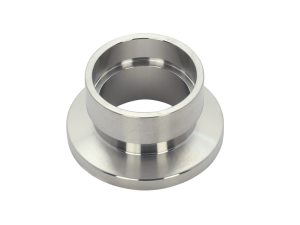

100318321 NW16 0.75 in. 0.87 in. (22 mm) 0.76 in. (19 mm) 0.68 in. (17 mm) $12.08

Specifications

  • Component Type
    Weld Socket Flange
  • Series
    Series 31
  • Material
    304 Stainless Steel
  • Flange Type
    ISO-KF
  • Length
    0.5 in. (12.7 mm)

Features
