ISO-MF Flange Bellows Sections

ISO-MF Flange Bellows Sections

Products
Features
Resources
Contact Us

Overview

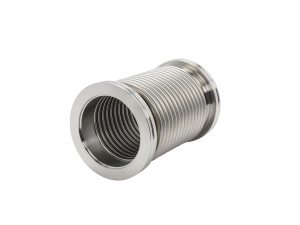

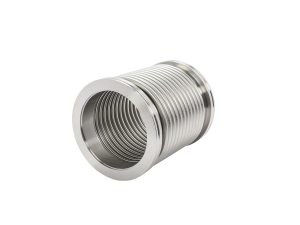

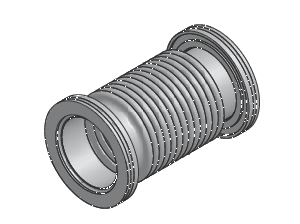

Stainless Steel bellows sections have NW63 to NW250 size ISO-MF vacuum flanges on each end and can be extended and bent to custom lengths and angles for flexible vacuum connections.

Flexible bellows design for bending and contraction
Stainless Steel construction
NW63 to NW250 ISO-MF flange sizes

See All Features

Products

		Compare	Description	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Flange Size	Free Length	Compressed Length	Availability	Featured Item	Price		Brand
		100763506G Bellows Hose, NW63 Size ISO-MF Flange, 115-150 mm, Stainless Steel $213 Show	100763506G Bellows Hose, NW63 Size ISO-MF Flange, 115-150 mm, Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	NW63	5.90 in. (150 mm)	4.50 in. (115 mm)	Show		$213
		100763508G Bellows Hose, NW80 Size ISO-MF Flange, 115-150 mm, Stainless Steel $198 Show	100763508G Bellows Hose, NW80 Size ISO-MF Flange, 115-150 mm, Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	NW80	5.90 in. (150 mm)	4.50 in. (115 mm)	Show		$198
		100763510G Bellows Hose, NW100 Size ISO-MF Flange, 115-150 mm, Stainless Steel $195 Show	100763510G Bellows Hose, NW100 Size ISO-MF Flange, 115-150 mm, Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	NW100	5.90 in. (150 mm)	4.50 in. (115 mm)	Show		$195
		100763516G Bellows Hose, NW160 Size ISO-MF Flange, 145-200 mm, Stainless Steel $380 Show	100763516G Bellows Hose, NW160 Size ISO-MF Flange, 145-200 mm, Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	NW160	7.90 in. (200 mm)	5.70 in. (145 mm)	Show		$380
		100763520G Bellows Hose, NW200 Size ISO-MF Flange, 175-250 mm, Stainless Steel $889 Show	100763520G Bellows Hose, NW200 Size ISO-MF Flange, 175-250 mm, Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	NW200	9.80 in. (250 mm)	6.90 in. (175 mm)	Show		$889
		100763525G Bellows Hose, NW250 Size ISO-MF Flange, 205-300 mm, Stainless Steel $1,462 Show	100763525G Bellows Hose, NW250 Size ISO-MF Flange, 205-300 mm, Stainless Steel	UNIVERSAL	0.0	1.0	0.0		0.0	NW250	11.80 in. (300 mm)	8.10 in. (205 mm)	Show		$1,462

Show All

Specifications

Component Type

Bellows Vacuum Hose
Series

Series 76

Flange Type

ISO-MF
Material

Stainless Steel

Features

Resources

Literature

Series 76 ISO-Universal Vacuum Components & Fittings (2.8 MB, PDF)

Need help?

Contact an Applications Specialist by sending us an email
