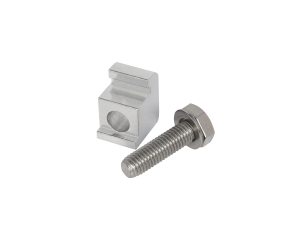

ISO-MF Single Claw Vacuum Flange Clamps
Overview
- Join ISO-MF flange to tapped flange or bolt ring
- Aluminum clamp with Stainless Steel hardware
- NW63 to NW500 flange sizes
- Torque to 7-10 lb-ft
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
100761006 CLAMP,1-CLAW,NW63-100,AL Single Claw Flange Clamp, ISO-MF, Sizes NW63 to NW100, M8 Thread |
|
$3.27 |
|
|||
|
100761016 CLAMP,1-CLAW,NW160-250,AL Single Claw Flange Clamp, ISO-MF Sizes NW160 to NW250, M10 Thread |
|
$8.38 |
|
|||
|
100761032 Single Claw Flange Clamp, ISO-MF Size NW320, M12 Thread | $11.14 |
|
||||
|
|
100761040 CLAMP,1-CLAW,NW400,AL Single Claw Flange Clamp, ISO-MF Sizes NW400 to NW500, M12 Thread | $11.47 |
|
Specifications
| Models |
CLAMP,1-CLAW,NW63-100,AL |
CLAMP,1-CLAW,NW160-250,AL |
|
CLAMP,1-CLAW,NW400,AL |
|
|---|---|---|---|---|---|
| Component Type | Clamp | Clamp | Clamp | Clamp | |
| Flange Type | ISO-MF | ISO-MF | ISO-MF | ISO-MF | |
| Flange Size | NW63 to NW100 | NW160 to NW250 | NW320 | NW400 or NW500 | |
| Bolt Size | M8 | M10 | M12 | M12 | |
| Material | Aluminum | Aluminum | Aluminum | Aluminum | |
| Dimension "A" | 1.20 in. (30 mm) | 1.25 in. (32 mm) | 1.57 in. (40 mm) | 1.57 in. (40 mm) | |
| Dimension "B" | 0.39 in. (10 mm) | 0.39 in. (10 mm) | 0.72 in. (18 mm) | 0.72 in. (18 mm) | |
| Dimension "C" | 0.62 in. (16 mm) | 0.80 in. (20 mm) | 1.04 in. (26 mm) | 1.04 in. (26 mm) |
Features
Resources
Literature
- Series 76 ISO-Universal Vacuum Components & Fittings (2.8 MB, PDF)
