Overview

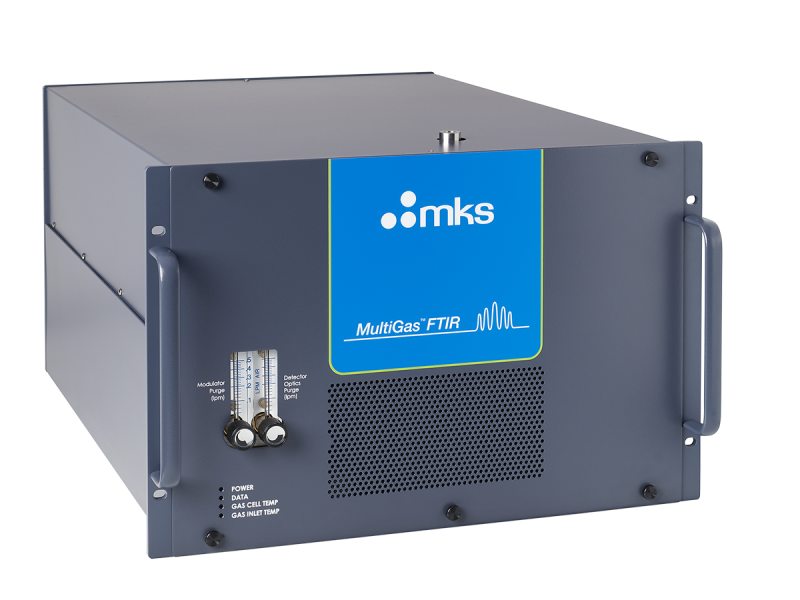

MultiGas 2030 Analyzers are FTIR-based analyzers capable of ppb sensitivity for multiple gas species in a variety of applications, such as automotive emissions measurement, stack emissions monitoring, process monitoring, ambient air monitoring, purity monitoring, and selective catalytic reduction performance monitoring. The MultiGas 2030 Analyzer can perform analysis in gas streams that contain up to 40% water and can simultaneously analyze and display more than 30 gases. With permanently stored calibration spectra, the need for costly gas cylinders is reduced. In addition, operators will find the robust, fully automated MultiGas 2030 Analyzer easy to operate and maintain.

Field technicians are not required for routine maintenance, simplifying user serviceability
Simultaneous analysis of more than 30 gases
Permanent & transferable calibration spectra reduces the need for gas cylinders
10-100 ppb sensitivity for many toxic gases
Patented, linearized detector response assures all instruments maintain the same calibration
User-friendly software for simple operation by reduces the need for highly-trained operators

See All Features

Products

Compare	Description	Compatibility	rankScore		Measurement Technique	Measurable Gases & Vapors	Measurable Range	Availability
MULTIGAS-2030G MultiGas 2030G FTIR Gas Analyzer MultiGas 2030G On-line FTIR Gas Analyzer Contact Us	MULTIGAS-2030G MultiGas 2030G FTIR Gas Analyzer MultiGas 2030G On-line FTIR Gas Analyzer	UNIVERSAL	1.0	1.0	FTIR Spectrometry	Most molecules except for He, Ar, N2, H2, and O2	Concentration setting between 10ppb and 100% Full Scale	Contact Us
MULTIGAS-2030-10Hz MultiGas 2030 10 Hz FTIR Gas Analyzer MultiGas 2030 10Hz FTIR Gas Analyzer Show	MULTIGAS-2030-10Hz MultiGas 2030 10 Hz FTIR Gas Analyzer MultiGas 2030 10Hz FTIR Gas Analyzer	UNIVERSAL	1.0	2.0	FTIR Spectrometry	Most molecules except for Ar, He, N2, H2, and O2	Dependent upon gas, from ppm to %. Refer to Engine and Vehicle Application Package.	Show
MULTIGAS-2031 MultiGas 2031 Purity FTIR Gas Analyzer MultiGas 2031 Purity FTIR Gas Analyzer, for Real-Time Trace Impurity Detection Contact Us	MULTIGAS-2031 MultiGas 2031 Purity FTIR Gas Analyzer MultiGas 2031 Purity FTIR Gas Analyzer, for Real-Time Trace Impurity Detection	UNIVERSAL	1.0	3.0	FTIR Spectrometry	Most molecules except for N2, H2, and O2	Full scale concentration setting between 10ppb and 100% Full Scale Spectral Resolution	Contact Us
MULTIGAS-2030-1065-READY MultiGas™ 2030 1065-Ready MultiGas™ 2030 1065-Ready Engine & Vehicle Emissions Measurement and Certification Analyzer Contact Us	MULTIGAS-2030-1065-READY MultiGas™ 2030 1065-Ready MultiGas™ 2030 1065-Ready Engine & Vehicle Emissions Measurement and Certification Analyzer	UNIVERSAL	1.0	4.0	FTIR Spectrometry	Most molecules except for N2, H2, and O2	Dependent upon gas, from ppm to %. Refer to Engine and Vehicle Application Package.	Contact Us
MULTIGAS-2030-1065-READY-LV MultiGas™ 2030 LV 1065-Ready MultiGas™ 2030 LV 1065-Ready, 5 Hz Engine & Vehicle Emissions, Low Volume Gas Cell Contact Us	MULTIGAS-2030-1065-READY-LV MultiGas™ 2030 LV 1065-Ready MultiGas™ 2030 LV 1065-Ready, 5 Hz Engine & Vehicle Emissions, Low Volume Gas Cell	UNIVERSAL	1.0	5.0	FTIR Spectrometry	Most molecules except for Ar, He, N2, H2, and O2	Dependent upon gas, from ppm to %.	Contact Us
MULTIGAS-2030-CEM-CERT MultiGas™ 2030 CEM-Cert MultiGas™ 2030 CEM-Cert Continuous Emissions Monitoring, MGS300 Certification Contact Us	MULTIGAS-2030-CEM-CERT MultiGas™ 2030 CEM-Cert MultiGas™ 2030 CEM-Cert Continuous Emissions Monitoring, MGS300 Certification	UNIVERSAL	1.0	7.0	FTIR Spectrometry	NO, NO2, N2O, SO2, CO, CO2, CH4, HCl, HF, NH3 , H2O		Contact Us
MULTIGAS-2030-CEM MultiGas™ 2030 CEM MultiGas™ CEM, Continuous Emissions Monitoring Contact Us	MULTIGAS-2030-CEM MultiGas™ 2030 CEM MultiGas™ CEM, Continuous Emissions Monitoring	UNIVERSAL	1.0	9.0	FTIR Spectrometry	Emission species including: NO, NO2, N2O, SO2, CO, CO2, CH4, HCl,HF, NH3 and H2O		Contact Us

Show All

Specifications

Type

FTIR Analyzer
Measurement Technique

FTIR Spectrometry
Measurable Gases & Vapors

Most molecules except for He, Ar, N2, H2, and O2
Measurable Range

Concentration setting between 10ppb and 100% Full Scale
FTIR

2102 Process FTIR
Spectral Resolution

0.5 – 16 cm^-1
Scan Speed

1 scan/sec @ 0.5 cm^-1
Scan Time

1 - 300 sec
Infrared Source

Silicon Carbide
Reference Laser

Helium Neon (15798.2 cm^-1)
Detector

LN-cooled MCT; TE-cooled MCT
Purge Pressure

20 psig (1.5 bar) max.
Spectrometer Purge Flow

0.2 L/min of dry nitrogen or CO2 free clean dry air with dewpoints below -70°C
Optics Purge Flow

0.2 L/min of dry nitrogen or CO2 free clean dry air with dewpoints below -70°C
Pressure Transducer

MKS Baratron capacitance manometer

Purge Connection

Swagelok quick connect
Communication

RJ-45 Ethernet
Dimensions

17.5 x 12.5 x 25.5 in. (width, height, depth)
Power Requirements

120 or 240 VAC, 50/60 Hz, 3 Amps
Weight

110 lbs. (50 kg)
Sample Temperature

Ambient to 191°C (calibration temperature dependent)
Sample Flow

0.2 - 60 LPM (model code dependent)
Sample Pressure

0.01 - 4 atm (calibration pressure dependent)
Gas Cell Materials

Nickel coated Al, Welded 316 stainless steel optional, dursan coating
Fittings

0.25 in. Swagelok, 0.25 in. VCR
Tubing

Heated 0.25 in. stainless steel, Heated 0.375 in. stainless steel
Mirrors

Nickel plated aluminum substrate, with rugged gold coating
Windows

ZnSe, CaF, BaF2, (others available)
O-rings

Kalrez, Viton (others available)
