UHV Vacuum Gauges for Accelerator Physics

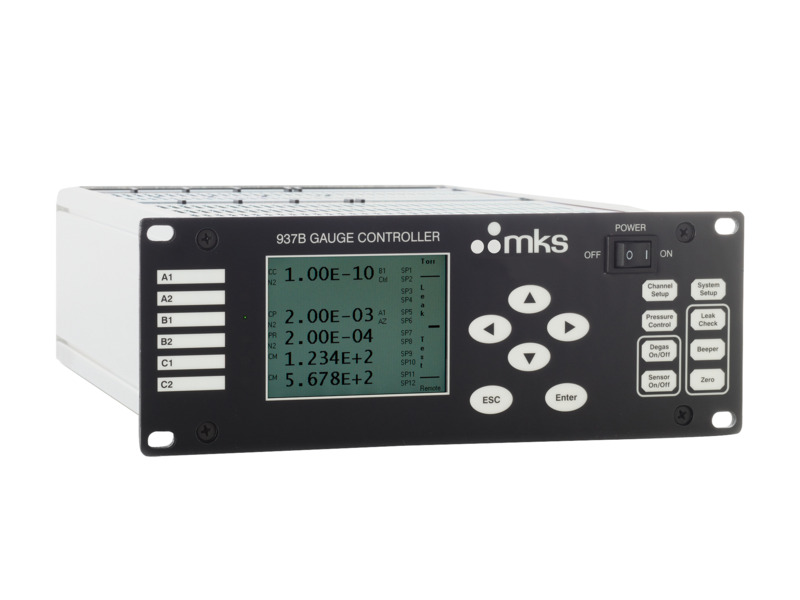

Ideally suited for High Energy Physics (HEP) applications, the Series 937B ultra high vacuum gauging system incorporates the technologies of the cold cathode and convection Pirani sensors. The 937B operates as many as six sensors simultaneously and measures pressures from 10-11 to 760 Torr.
The Series 937B combination vacuum gauge system is part of the family of vacuum gauges, and will operate as many as six sensors simultaneously. Every controller is configured to the user’s exact requirements by selecting sensor type. Units of pressure are user configurable, in Torr, millibar, Pascal or microns. RS232 and RS485 are standard on the 937B, with Profibus as an option. The UHV gauging system can be used for applications requiring any of the following: high temperature bakeout, radiation-resistance; or 10-11 Torr measurements. The vacuum measurement sensors can be installed on linear accelerators, booster rings, storage rings, beamlines and vacuum pumping systems.
| Compare | Description | Avail. | Price | Qty. | |
|---|---|---|---|---|---|
 | 937B-EU-NANANA-NABase Vacuum Gauge Controller, RS232 and RS485, Series 937B, EU Region | ||||
| 937B-US-NANANA-NABase Vacuum Gauge Controller, RS232 and RS485, Series 937B, US Region |
| Compare | Description | Avail. | Price | Qty. | |
|---|---|---|---|---|---|
 | 100018446Vacuum Sensor Card, Cold Cathode, Series 937B and 946 Controllers | ||||
| 100015132Vacuum Sensor Card, Dual Convection Pirani, Series 937B and 946 Controllers | ||||
| 100015940Profibus Communications Board, for Use with Series 937B Controller | ||||
| 100018448Vacuum Sensor Card, Fast Response, Cold Cathode, TTL Board, Series 937B and 946 Controllers |
| Compare | Description | Avail. | Price | Qty. | |
|---|---|---|---|---|---|

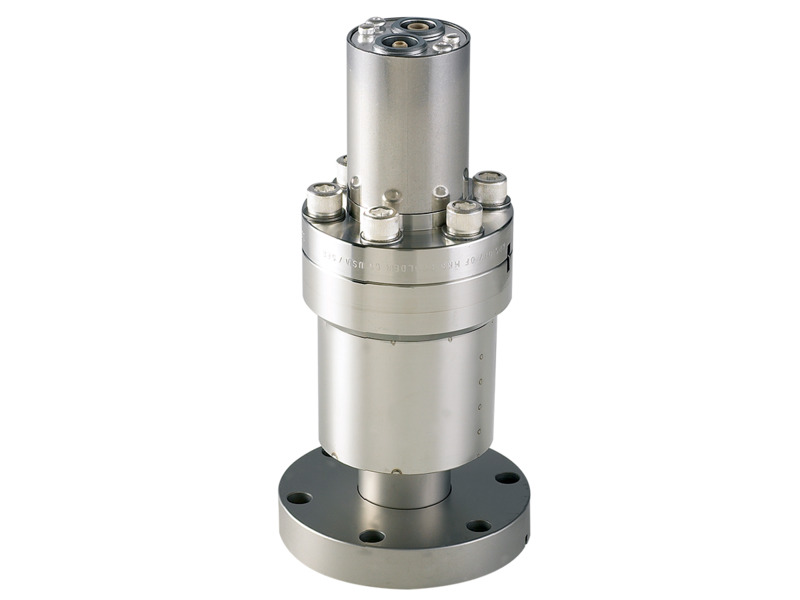

 | 104220006Cold Cathode Sensor, 2.75 in. CF, LEMO Connector | ||||
| 104220008Cold Cathode Sensor, 2.75 in. CF, LEMO Connector with Field Emitter | ||||

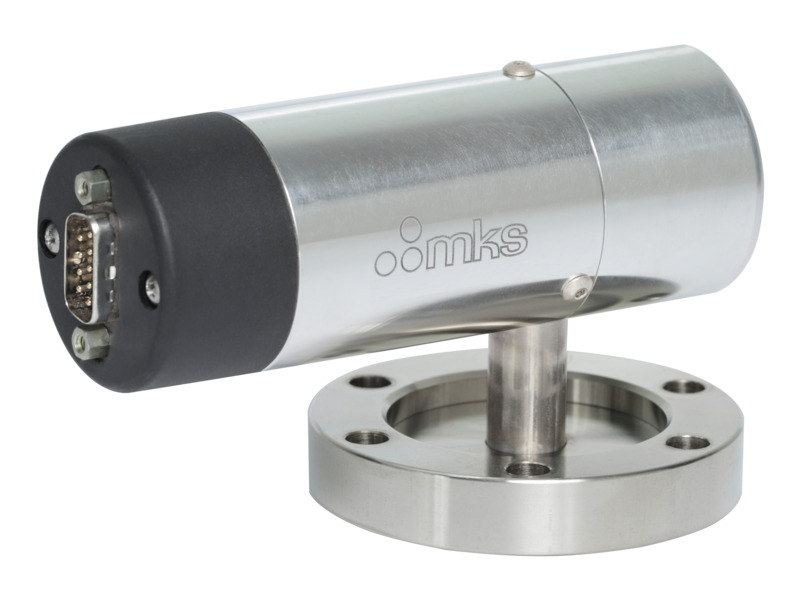

 | 103170024SHPirani Vacuum Sensor, Convection-Enhanced, 0.001 - 1000 Torr, 2.75 in. CF |
| Compare | Description | Avail. | Price | Qty. | |
|---|---|---|---|---|---|
 | 100014318-10Vacuum Gauge Cable, 422 Sensor to 937B Controller, LEMO/BNC/SHC Connectors, 10 ft., Radiation Resistant | ||||
| 100012372Vacuum Gauge Cable, 422 Sensor to 937B Controller, LEMO/BNC/SHC Connectors, 10 ft., High-temperature | ||||
| 103170006SHVacuum Gauge Cable, 345 or 317 Sensors to 945, 947, 937B, 946 Controllers, 10 ft. |
Learn More:
- Download the UHV Vacuum Gauges for Accelerator Physics brochure
- Review all the 937B Digital Combination Vacuum Gauge Controller capabilities.
- Learn more about the 422 Cold Cathode Sensor here.
- See all the 317 Convection-Enhanced Pirani Vacuum Pressure Sensors available from MKS.
Need help?
Contact an Applications Specialist by sending us an email
