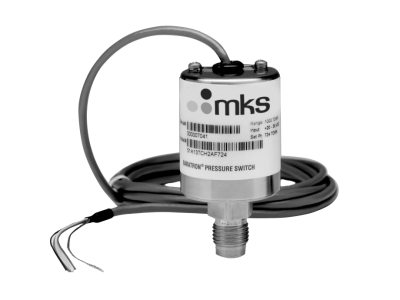

Baratron® 41C Single-End Gauge Pressure Switches
Overview
The 41C Single-end 10 - 26,000 Torr Pressure Switch offers accurate and reliable protection for vacuum vacuum/pressure processes. Designed for applications where a DC signal output is not required, these switches provide relay outputs that are readily interfaced with alarms, valve actuators, computers, process controllers, load locks and other protection devices. The 41C is referenced to atmospheric pressure. The trip point on can be set to trip above, below (reverse calibration), or exactly at current atmospheric pressure.
- Single-end configuration referenced to atmospheric pressure
- Superb set point accuracy with low hysteresis
- All-metal, all-welded construction exposes only stainless steel and Inconel® for corrosion resistance
- Switch relay can be set to energize above or below set point for fail-safe operation
- High reliability reduces downtime
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
Pressure Switch, Single-ended, 10 Torr, 4VCR Male, 9-Pin Type D Male, Referenced to Atmospheric Pressure
$557.00
|
41C11DCA2BA003 Pressure Switch, Single-ended, 10 Torr, 4VCR Male, 9-Pin Type D Male, Referenced to Atmospheric Pressure | $557.00 |
|
|||
|
Pressure Switch, Single-ended, 10 Torr, 4 VCR Female, Flying Leads, Referenced to Atmospheric Pressure
$557.00
|
41C11DCD2BF003 Pressure Switch, Single-ended, 10 Torr, 4 VCR Female, Flying Leads, Referenced to Atmospheric Pressure | $557.00 |
|
|||
|
Pressure Switch, Single-ended, 10 Torr, 0.25 in. NPT Male, Flying Leads, Referenced to Atmospheric Pressure
$557.00
|
41C11TFB2AF2.2 Pressure Switch, Single-ended, 10 Torr, 0.25 in. NPT Male, Flying Leads, Referenced to Atmospheric Pressure | $557.00 |
|
|||
|
Pressure Switch, Single-ended, 1000 Torr, NW16 ISO-KF, 9-Pin Type D Male, Referenced to Atmospheric Pressure
$557.00
|
41C13DGA2AA040 Pressure Switch, Single-ended, 1000 Torr, NW16 ISO-KF, 9-Pin Type D Male, Referenced to Atmospheric Pressure | $557.00 |
|
Configuration Options
The following options are available for the 41C Baratron® Single-End Pressure Switch.
Ordering Code Example: 41C11TCA1AA005
| Configuration Option | Option Code |
|---|---|
| 41C Single-End Pressure Switch | 41C |
Full Scale Ranges Available (Contact Applications Engineering for other engineering units) |
|
| 10 Torr | 11T |
| 30 Torr | 31T |
| 100 Torr | 12T |
| 500 Torr | 52T |
| 1000 Torr | 13T |
| 20 psi | 21P |
| 50 psi | 51P |
| 100 psi | 12P |
| 250 psi | RDP |
| 500 psi | 52P |
| 10 Torr (reverse calibration) | 11D |
| 30 Torr (reverse calibration) | 31D |
| 100 Torr (reverse calibration) | 12D |
| 500 Torr (reverse calibration) | 52D |
| 1000 Torr (reverse calibration) | 13D |
| 20 psi (reverse calibration) | 21C |
| 50 psi (reverse calibration) | 51C |
| 100 psi (reverse calibration) | 12C |
| 250 psi (reverse calibration) | RDC |
| 500 psi (reverse calibration) | 52C |
Fittings |
|
| NW16 ISO-KF | GA |
| 0.125 in. NPT male | FE |
| 0.25 in. NPT male | FB |
| 4 VCR fixed male | CA |
| 4 VCR female | CD |
Input Voltage |
|
| 10-20 VDC | 1 |
| 20-30 VDC | 2 |
Relay Mode |
|
| Energizes with pressure above the set point | A |
| Energizes with pressure below the set point | B |
Connector |
|
| 9-pin Type "D" male | A |
| Flying leads - 2 ft. shielded cable | F |
Trip Point* |
|
| Three digit value (in same units as Full Scale ranges) | xxx |
* For a trip point of 000 (atmospheric pressure), use a reverse calibration Full Scale range code
Specifications
-
TypePressure Switch
-
ConfigurationSingle-Ended
-
Accuracy±0.5% of Full Scale (± temperature coefficient)
-
Trip Point Range5% to 100% of Full Scale
-
Trip Point Dead Band±3% of Full Scale
-
Response Time<20 msec
-
Internal Volume3.3 cc
-
Temperature Coefficient±0.07% of Full Scale/°C
-
Materials Exposed to Process GasesInconel and 316L stainless steel
-
Overpressure2 x Full Scale or 45 psia, whichever is greater
-
OutputsElectromechanical relay - SPDT (isolated) contacts rated up to 1 Amp @ 30 VDC resistive.
-
Power Requirements20-30 VDC
-
Ambient Operating Temperature0-50°C
-
ComplianceCE, UL recognized* (cULus E520864), EN/IEC CB Approved to all National Deviations *standard MKS part numbers only
Features
Resources
Literature
- 41C, 42C, 51C, 52C Pressure Switches (2 MB, PDF)
Manuals
- MKS 41C, 42C, 51C, & 52C Pressure Switches Manual (705.4 kB, PDF)
- 41, 42, 51, 52 Vacuum/Pressure Switch Pin-outs (23.6 kB, PDF)
