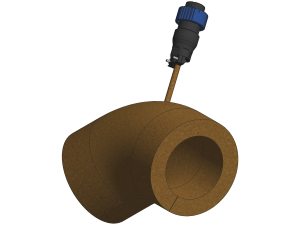

240 VAC Polyimide 45 Degree Elbow Heater Jackets
Overview
- Compatible with ISO and Buttweld 45 elbows
- Polyimide materials for heater and insulation
- 200-240 VAC power requirement
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
Heater Jacket, Polyimide, fits ISO 45 Degree Elbow, 2 in. Diameter Tubing, 240V
$690
|
495020262-1150 Heater Jacket, Polyimide, fits ISO 45 Degree Elbow, 2 in. Diameter Tubing, 240V | $690 |
|
|||
|
Heater Jacket, Polyimide, fits Weld 45 Elbow with Tangents, 2 in. Tubing, 240V
$742
|
495020265-1150 Heater Jacket, Polyimide, fits Weld 45 Elbow with Tangents, 2 in. Tubing, 240V | $742 |
|
|||
|
495025264-1150 Heater Jacket, Polyimide, fits Weld 45 Degree Elbow, 2.5 in. OD Tube, 240V | $765 |
|
||||
|
|
Heater Jacket, Polyimide, fits Weld 45 Degree Elbow with Flange on one side, 3.0 in. Tubing, 240V
$818
|
495030260-1150 Heater Jacket, Polyimide, fits Weld 45 Degree Elbow with Flange on one side, 3.0 in. Tubing, 240V | $818 |
|
|||
|
|
Heater Jacket, Polyimide, fits ISO 45 Degree Elbow, 3 in. Diameter Tubing, 240V
$829
|
495030262-1150 Heater Jacket, Polyimide, fits ISO 45 Degree Elbow, 3 in. Diameter Tubing, 240V | $829 |
|
|||
|
|
Heater Jacket, Polyimide, fits Weld 45 Degree Elbow, 3 in. Diameter Tubing, 240V
$818
|
495030264-1150 Heater Jacket, Polyimide, fits Weld 45 Degree Elbow, 3 in. Diameter Tubing, 240V | $818 |
|
|||
|
|
Heater Jacket, Polyimide, fits Weld 45 Elbow with Tangents, 3 in. Tubing, 240V
$842
|
495030265-1150 Heater Jacket, Polyimide, fits Weld 45 Elbow with Tangents, 3 in. Tubing, 240V | $842 |
|
|||
|
|
Heater Jacket, Polyimide, fits Weld 45 Degree Elbow, with Flange on one side, 3.5 in. 240V
$857
|
495035260-1150 Heater Jacket, Polyimide, fits Weld 45 Degree Elbow, with Flange on one side, 3.5 in. 240V | $857 |
|
|||
|
|
Heater Jacket, Polyimide, fits Weld 45 Degree Elbow, 3.5 in. Diameter Piping, 240V
$857
|
495035264-1150 Heater Jacket, Polyimide, fits Weld 45 Degree Elbow, 3.5 in. Diameter Piping, 240V | $857 |
|
|||
|
|
Heater Jacket, Polyimide, fits Weld 45 Degree Elbow with Flange on one side, 4.0 in. Tubing, 240V
$903
|
495040260-1150 Heater Jacket, Polyimide, fits Weld 45 Degree Elbow with Flange on one side, 4.0 in. Tubing, 240V | $903 |
|
|||
|
|
Heater Jacket, Polyimide, fits ISO 45 Degree Elbow, 4 in. Diameter Tubing, 240V
$951
|
495040262-1150 Heater Jacket, Polyimide, fits ISO 45 Degree Elbow, 4 in. Diameter Tubing, 240V | $951 |
|
|||
|
|
Heater Jacket, Polyimide, fits Weld 45 Degree Elbow, 4 in. Diameter Tubing, 240V
$903
|
495040264-1150 Heater Jacket, Polyimide, fits Weld 45 Degree Elbow, 4 in. Diameter Tubing, 240V | $903 |
|
|||
|
|
Heater Jacket, Polyimide, fits Weld 45 Elbow with Tangents, 4 in. Tubing, 240V
$927
|
495040265-1150 Heater Jacket, Polyimide, fits Weld 45 Elbow with Tangents, 4 in. Tubing, 240V | $927 |
|
|||
|
|
Heater Jacket, Polyimide, fits Weld 45 Degree Elbow with Flange on one side, 4.5 in. Tubing, 240V
$944
|
495045260-1150 Heater Jacket, Polyimide, fits Weld 45 Degree Elbow with Flange on one side, 4.5 in. Tubing, 240V | $944 |
|
|||
|
|
Heater Jacket, Polyimide, fits Weld 45 Degree Elbow, 4.5 in. Diameter Piping, 240V
$944
|
495045264-1150 Heater Jacket, Polyimide, fits Weld 45 Degree Elbow, 4.5 in. Diameter Piping, 240V | $944 |
|
Specifications
-
SeriesSeries 49
-
TypeHeater Jacket
-
Insulation MaterialPolyimide
-
Component Type45° Elbow
-
Temperature Range35 - 200°C
-
Pre-Set Temperature150°C Standard
-
Voltage Requirements200-240 VAC
-
Heater ConnectorsCircular 6 Contact Locking Bayonet
-
Housing MaterialsController: Injection Molded
-
Controller DimensionsØ2.2 in. x 3.7 in.
-
Operating Temperature0 to 60°C
-
ComplianceCE, SEMI S2
Features
Accessories
240 VAC Heater Jacket Power Kits
Heater jacket power kits includes a power cord and a Series 49 power junction block. The junction block supplies power to a chain of heater jackets and provides for communications pass thru to adjacent upstream and downstream chains of heaters.
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|
 |
20021381-001 Power Kit, fits Series 49UL Heater Jacket, 8 ft. 240 VAC Cable and Series 49UL Power Adapter | $175 |
|
||||
| |
20021382-001 Power Kit, fits Series 49UL Heater Jacket, 15 ft. 240 VAC Cable and Series 49UL Power Adapter | $175 |
|
User Interface Communications Kit
The communications kit includes a 24 in. communication cable and a USB to Micro USB adapter. Its used for setting up an monitoring a chain of heater jackets with a user supplied tablet running the Series 49 software application.
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|
| |
20014265-001 Communications Kit, Series 49UL Heaters, Includes Communication Cable and USB Adapter | $175 |
|
