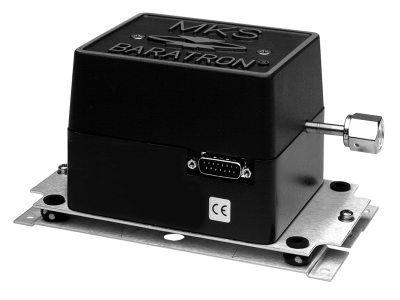

AA06A Baratron® Absolute Pressure Sensor

AA06A Baratron® absolute pressure sensors are single-ended dual-electrode/AC bridge devices that are extremely stable and designed to minimize the effect of temperature changes. Full Scale ranges are available from 25,000 Torr down to 0.1 Torr. Each range measures down to 1 part in 106 Full Scale with selected percent Reading accuracy limited by this resolution and with accuracies ranging from 0.25% to 0.05% of Reading. They are constructed of Inconel® and stainless steel, allowing use with many wet, dirty, or corrosive gases.

Note: The AA06A/AD06A require the use of an MKS 670C signal conditioner (Legacy 670B/270s are also compatible) to provide the various voltages to the AA06A/AD06A and to convert the sensor level signals from the AA06A/AD06A to a pressure reading.

Absolute pressure measurement
Ranges from 0.1 to 25,000 Torr
Highest accuracy pressure measurement instrument available
Six decades of measurement eliminates several transducers with limited resolution

See All Features

Show Filters:

Showing 10 of 16 total products

Description	Compatibility	Full Scale Range	Accuracy	Fitting Type	Price
AA06A.1TRBAbsolute Reference Pressure Sensor, 0.1 mmHg, 0.08% Accuracy, 4 VCR-F	UNIVERSAL	0.1 mmHg	0.08% of Reading	4 VCR female	$5,077
AA06A.1TRCAbsolute Reference Pressure Sensor, 0.1 mmHg, 0.12% Accuracy, 4 VCR-F	UNIVERSAL	0.1 mmHg	0.12% of Reading	4 VCR female	$4,712
AA06A01TRAAbsolute Reference Pressure Sensor, 1 mmHg, 0.05% Accuracy, 4 VCR-F	UNIVERSAL	1 mmHg	0.05% of Reading	4 VCR female	$4,774
AA06A01TRBAbsolute Reference Pressure Sensor, 1 mmHg, 0.08% Accuracy, 4 VCR-F	UNIVERSAL	1 mmHg	0.08% of Reading	4 VCR female	$4,439
AA06A01TRCAbsolute Reference Pressure Sensor, 1 mmHg, 0.12% Accuracy, 4 VCR-F	UNIVERSAL	1 mmHg	0.12% of Reading	4 VCR female	$4,073
AA06A11TRAAbsolute Reference Pressure Sensor, 10 mmHg, 0.05% Accuracy, 4 VCR-F	UNIVERSAL	10 mmHg	0.05% of Reading	4 VCR female	$4,774
AA06A11TRBAbsolute Reference Pressure Sensor, 10 mmHg, 0.08% Accuracy, 4 VCR-F	UNIVERSAL	10 mmHg	0.08% of Reading	4 VCR female	$4,439
AA06A11TRCAbsolute Reference Pressure Sensor, 10 mmHg, 0.12% Accuracy, 4 VCR-F	UNIVERSAL	10 mmHg	0.12% of Reading	4 VCR female	$4,073
AA06A12TRAAbsolute Reference Pressure Sensor, 100 mmHg, 0.05% Accuracy, 4 VCR-F	UNIVERSAL	100 mmHg	0.05% of Reading	4 VCR female	$4,774
AA06A12TRBAbsolute Reference Pressure Sensor, 100 mmHg, 0.08% Accuracy, 4 VCR-F	UNIVERSAL	100 mmHg	0.08% of Reading	4 VCR female	$4,439

Show All

Configuration Options

The following options are available for AA06A Baratron® Absolute Pressure Sensors
Ordering Code Example: AA06A11TRC

Configuration Option	Option Code
AA06A Baratron® Absolute Pressure Sensor	AA06A
Pressure Range
0.1 mmHg	.1T
1 mmHg	01T
10 mmHg	11T
100 mmHg	12T
1000 mmHg	13T
5000 mmHg	53T
10000 mmHg	14T
15000 mmHg	RBT
20000 mmHg	24T
25000 mmHg	RCT
Fittings (compatible with)
4 VCR female	R
Accuracy (Unidirectional Calibration)
±0.12% of Reading	C
±0.08% of Reading	B
±0.05% of Reading (1-1000 mmHg ranges only)	A

	Description
	AA06A Absolute Capacitance Manometer, High Accuracy, 0.1-1000 Torr, 4 VCR-F

Specifications

Measurement Type
Absolute
Full Scale Pressure Ranges
0.1, 1, 10, 100, 1000, 5000, 10000, 15000, 20000, or 25000 mmHg Full Scale
Fitting Type
4 VCR female
Accuracy
0.05%, 0.08%, or 0.12% of Reading ±zero/span coefficient
Resolution
1 part in 10⁶ Full Scale

Operating Temperature
Temperature regulated at 45°C
Materials Exposed to Process Gases
Inconel, Stainless Steel
Volume
2.5 or 14 cc
Overpressure Limit
40 - 45 psia or 125% of Full Scale
Compliance
CE

Accessories

Description	Compatibility	Price
¹	UNIVERSAL		Learn More
670CD21Electronics/Display, RS232	UNIVERSAL	$5,169
RCB270S-2-10Manometer Cable, 670 Display to 690, 698, AA06A, AD06A Manometers, 10 ft., RoHS, Shielded	UNIVERSAL	$473
RCB270S-2-20Manometer Cable, 670 Display to 690, 698, AA06A, AD06A Manometers, 20 ft., RoHS, Shielded	UNIVERSAL	$506
