AA08B Micro-Baratron® High Pressure, Ultraclean, Flow-through, Pressure Transducers
Overview
The AA08B Micro-Baratron® is a higher accuracy, flow-through pressure transducer offering superior value and performance. The building block design of Micro-Baratron® pressure transducers allow custom configuration. A highly accurate and stable sensor with sophisticated electronics optimize performance with EMI/RFI insensitive, high level output. The AA08B offers enhanced accuracy, long term stability and low temperature coefficients for repeatability important in today's gas measurement applications.
- Flow-through configuration for in-line pressure measurement
- Incoloy® wetted surface for superior corrosive gas & liquid compatibility
- Highest overpressure ratio tolerances on the market
- Accuracy specified in percentage of reading for superior results in lower pressure ranges
- Capacitance technology at a competitive price
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
Pressure Transducer, 100 psia, Flow-through, 0-10 VDC, 4 VCR Female, 15-pin HD
$1,228.00
|

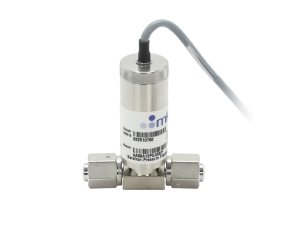

AA08B12PCJ2GC1 Pressure Transducer, 100 psia, Flow-through, 0-10 VDC, 4 VCR Female, 15-pin HD | $1,228.00 |
|
|||
|
Pressure Transducer, 100 psia, Flow-through, 0-10 VDC, 4 VCR Female, 15-pin HD, LDM-C
$1,663.00
|
AA08B12PCJ2GT1 Pressure Transducer, 100 psia, Flow-through, 0-10 VDC, 4 VCR Female, 15-pin HD, LDM-C | $1,663.00 |
|
|||
|
Pressure Transducer, 1000 psia, Flow-through, 0-5 VDC, 4 VCR Male, DB15, LDM-C
$1,634.00
|

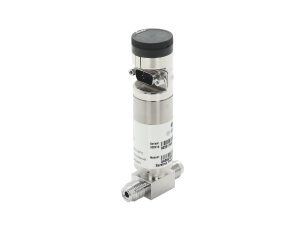

AA08B13PCH3GW1 Pressure Transducer, 1000 psia, Flow-through, 0-5 VDC, 4 VCR Male, DB15, LDM-C | $1,634.00 |
|
|||
|
|
Pressure Transducer, 1000 psia, Flow-through, 0-10 VDC, 1.125 inch W-seal, Bendix 4-pin
|
AA08B13PMF2GD1 Pressure Transducer, 1000 psia, Flow-through, 0-10 VDC, 1.125 inch W-seal, Bendix 4-pin |
|
||||
|
|
Pressure Transducer, 1000 Torr, Flow-through, 0-10 VDC, 4 VCR-M, 15-pin HD on Flying Lead
$1,634.00
|
AA08B13TCA2GT1 Pressure Transducer, 1000 Torr, Flow-through, 0-10 VDC, 4 VCR-M, 15-pin HD on Flying Lead | $1,634.00 |
|
|||
|
|
Pressure Transducer, 1000 Torr, Flow-through, 0-5 VDC, 1.125 inch C-seal, 15-pin HD on Flying Lead
|
AA08B13TMD3GC1 Pressure Transducer, 1000 Torr, Flow-through, 0-5 VDC, 1.125 inch C-seal, 15-pin HD on Flying Lead |
|
||||
|
|
Pressure Transmitter, 3000 psia, Flow-through, 4-20 mA, 0.25 in. Weld Stubs, Flying Leads
$1,432.00
|
AA08B33PBE4GL4 Pressure Transmitter, 3000 psia, Flow-through, 4-20 mA, 0.25 in. Weld Stubs, Flying Leads | $1,432.00 |
|
|||
|
|
Pressure Transducer, 3000 psia, Flow-through, 0-10 VDC, 4 VCR male, DB9 on Flying Lead
$1,201.00
|
AA08B33PCH2GA1 Pressure Transducer, 3000 psia, Flow-through, 0-10 VDC, 4 VCR male, DB9 on Flying Lead | $1,201.00 |
|
|||
|
|
Pressure Transducer, 250 psia, Flow-through, 0-10 VDC, 4 VCR Male, DB9 on Flying Lead
$1,200.00
|
AA08BRDPCH2GA1 Pressure Transducer, 250 psia, Flow-through, 0-10 VDC, 4 VCR Male, DB9 on Flying Lead | $1,200.00 |
|
Configuration Options
The following options are available for the AA08B Micro-Baratron® High Pressure Flow-Though Pressure Transducer.
Ordering Code Example: AA08B33PCB2GA1
| Configuration Option | Option Code |
|---|---|
| AA08B Single-ended Pressure Transducer | AA08B |
Pressure Range Full Scale* |
|
| 1000 Torr | 13T |
| 100 psia | 12P |
| 250 psia | RDP |
| 1000 psia | 13P |
| 3000 psia | 33P |
Fittings |
|
| 0.25 in. weld stub (1.85 in. face-to-face) | BE |
| 4 VCR male, nonrotatable (2.78 in. face-to-face) | CA |
| 4 VCR male, nonrotatable (2.24 in. face-to-face) | CH |
| 4 VCR female (2.95 in. face-to-face) | CJ |
| 4 VCR male, nonrotatable / 0.25 in. weld stub | CL |
| 4 VCR female (3.045 in. face-to-face) | CM |
| 1.5 in. C-seal surface mount | MA |
| 1.5 in. W-seal surface mount | MC |
| 1.125 in. C-seal surface mount | MD |
| 1.125 in. W-seal surface mount | MF |
Analog Output |
|
| 0-10 VDC | 2 |
| 0-5 VDC | 3 |
| 4-20 mA | 4 |
| Accuracy | |
| 1% of Reading | G |
Connectors |
|
| 9-pin type D at end of 9” flying lead | A |
| 15-pin high density type D at end of 9” flying lead | C |
| Bendix 4-pin at end of 9” flying lead | D |
| 6’ flying leads | F |
| 10’ flying leads | L |
| Bendix 4-pin 4-20 mA on pins A&B | H |
| LDM-C (Red LED), 0-5 VDC and 0-10 VDC with high density D connector | T |
| LDM-C (with Blank Cover), 0-5 VDC and 0-10 VDC with high density D connector | W |
Environmental |
|
| Standard enclosure (indoor use) | 1 |
| Optional NEMA 4 enclosure for water, ice and dust | 4 |
* Other engineering units available (i.e. KPa). Consult Applications Engineering for additional information
Specifications
-
TypePressure Transducer
-
ConfigurationFlow-through
-
Measurement TypeAbsolute
-
Full Scale Pressure1000 Torr to 3000 psia
-
Accuracy1.0% of Reading
-
Fitting Type0.25 in. weld stub (1.85 in. face-to-face)
4 VCR male, nonrotatable (2.78 in. face-to-face)
4 VCR male, nonrotatable (2.24 in. face-to-face)
4 VCR female (2.95 in. face-to-face)
4 VCR male, nonrotatable / 0.25 in. weld stub
4 VCR female (3.045 in. face-to-face)
1.5 in. C-seal surface mount
1.5 in. W-seal surface mount
1.125 in. C-seal surface mount
1.125 in. W-seal surface mount -
Zero Temperature Coefficient0.02% of Full Scale/°C, 50 psia to 3000 psia
0.04% of Full Scale/°C, 1000 Torr -
Span Temperature Coefficient0.04% of Reading/°C, 50 psia to 3000 psia
0.08% of Reading/°C, 1000 Torr
-
Overpressure Limit1.5 x Full Scale for ranges from 1000 Torr to 500 psi
1.2 x Full Scale for ranges from 501-3000 psi -
Burst Pressure10 x Full Scale for ranges from 1000 Torr to 500 psi
5 x Full Scale for ranges from 501-3000 psi -
Exposed MaterialsIncoloy®
-
Surface Finish≤5µ in Ra
-
Power Requirements13 to 32 VDC @ 10 mA max.
-
Ambient Operating Temperature0-50°C
-
ComplianceCE
