Alter® CM 130 Compact, Air-cooled Microwave Power Supply for 300W, 2.45 GHz Magnetrons

The CM 130 magnetron power supply is a compact, air-cooled, switch-mode power supply with an integrated filament transformer designed to drive a 300 W magnetron. The CM 130 is able to power and control TO300 magnetrons with a maximum power of 300 Watts at 2.45 GHz.

Compact and lightweight form factor suitable for installations where the space saving is mandatory
Highly competitive alternative to larger/heavier traditional L-C power supplies
High efficiency power supply design requiring only air cooling simplifies installation and reduces cost
Low output ripple makes it suitable for laboratory and professional oven equipment
System designed for easy assembly inside an electrical enclosure

See All Features

	Compare	Description	Compatibility	Drawings, CAD & Specs	Power Output	Power Requirements	Line Frequency	Efficiency	Avail.	Price
		CM-130Microwave Power Supply, 300 W, 2.45 GHz Magnetron, Alter CM-130	UNIVERSAL		540 W	140 - 250 VAC	50/60 Hz	92%

Specifications

Type
CM 130 Microwave Power Supply
Power Output
540 Watts (maximum)
Input Voltage
140 - 250 VAC
Line Frequency
50/60 Hz
Efficiency
92%
Output Current
180 mA max (corresponding to approx. 300 Wrf)
or 60 mA max (corresponding to 90 Wrf)
Alarm Management
In the event of an alarm condition, the alarm contact opens, the output power is switched off and the alarm contact is latched. A reset procedure is required to turn the unit back on.

Dimensions
Width 190 mm (7.5 inches)
Height, total (mm) 127 mm (5.0 inches)
Length, total (mm) 284 mm (11.2 inches)
Weight
3.7 kg / 8.1 lbs.
Cooling
Forced air, 80 m³/h
Ambient Operating Temperature
40°C/104°F (max)
Compliance
CE, Directive EMC and LV, through norms EN61010-1, EN61000-6-4, EN61000-6-2
Preferred Microwave Magnetron Head
TxA10 (Open frame head, waveguide size WR340) Other manufacturer's electrically compatible heads

Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		AG340Microwave Tuner, Air-Cooled, Manual, 3-Stub, 2450 MHz	UNIVERSAL
		DC1340Microwave Directional Coupler, Single Channel, 2450 MHz	UNIVERSAL

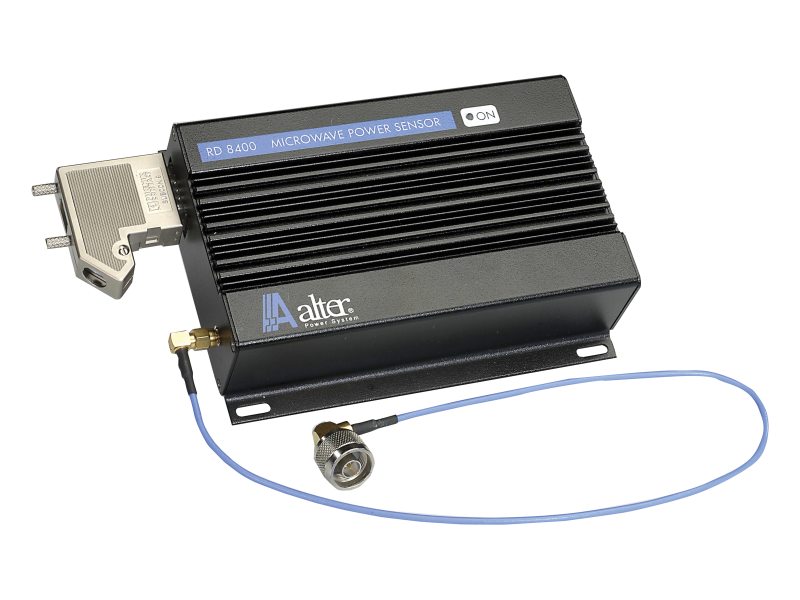

		RD8400A1Microwave Linear Power Sensor, Single Channel, 2450 MHz	UNIVERSAL
		RD8400A2Microwave Linear Power Sensor, Dual Channel, 2450 MHz	UNIVERSAL
