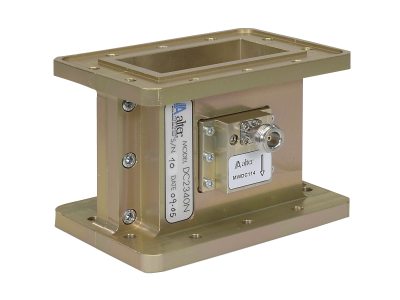

The DC 2340 is a dual directional coupler designed for sampling forward and reverse power in 2450 MHz industrial applications. The DC 1340 is the single channel version. Both are manufactured in a compact aluminum block, alodine finishing, with standard end flanges style R26 for WR340 waveguide.
- Precise sensor for microwave power
- Rugged design
- Sample forward and reverse power in 2450 MHz industrial applications See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | DC1340Microwave Directional Coupler, Single Channel, 2450 MHz |
Specifications
- TypeDC 2340, DC 1340 Directional Couplers
- VSWR1.25 max
- Directivity25 dB
- Flange TypeR 26 (IEC 153)
- Maximum Power6 kW
- Coupling Factor60 dB ±1 dB
- Output ConnectorN female (standard) SMA-F on request
- Waveguide SizeWR340
- Operating Frequency2450MHz, ±25MHz
- Dimensions100 x 99mm
- WeightDC2340: 1 kg.
DC1340: 0.9 kg.
Resources
Literature
Alter® DC 2340 & DC 1340 Directional Couplers(627.7 kB, PDF)
