Alter® RD8400 Linear Power Sensor

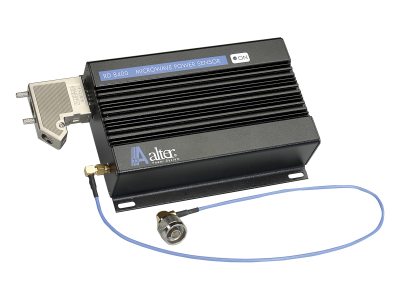

The Alter® RD8400 Linear Power Sensor is able to measure the power of a microwave signal at 2.45 GHz. It has a 0 - 10 V output signal proportional to the reading. The RD8400 is able to detect either the value of the continuous power or the peak value of the mean power. The RD8400 receives the power signal through a coax cable provided with standard connectors and sends the output signal through a "D" type connector, without using an external diode detector.

Compact and shielded aluminum box
Direct mount on isolator
0 – 10V output signal

See All Features

	Compare	Description	Compatibility	Drawings, CAD & Specs	Type	Operating Frequency	Number of Channels	For Use With	Avail.	Price
		RD8400A1Microwave Linear Power Sensor, Single Channel, 2450 MHz	UNIVERSAL		Microwave Linear Power Sensor	2450 MHz, ±50MHz	1	Microwave Generators 2 - 10 kW, 2.450 GHz
		RD8400A2Microwave Linear Power Sensor, Dual Channel, 2450 MHz	UNIVERSAL		Microwave Linear Power Sensor	2450 MHz, ±50MHz	2	Microwave Generators 2 - 10 kW, 2.450 GHz

Specifications

Type
RD8400 Linear Power Sensors
Operating Frequency
2450 MHz, ±50MHz
Dimensions
173 x 130 x 45 mm
Ambient Temperature
5 to 40°C
Weight
0.5 kg.
Coax Cable
600mm standard, other lengths available.
Protection
IP20

Input Voltage
12 - 24 VDC
Input Signal Range
-30 to +10 dBm
Error at Different Values of Frequency
±1% max
Different Attenuation Value for Each Channel
Yes
Outputs
1 or 2, not correlated
Output Signal
0 - 10 VCC

Resources

Literature

Alter® RD8400 Linear Power Sensor(519 kB, PDF)
