Overview

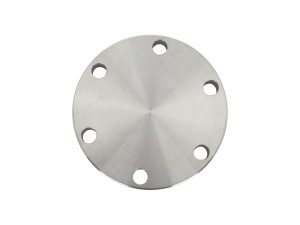

These single-sided non-rotatable ultrahigh vacuum (UHV) blank CF flanges feature tapped or thru bolt holes and are joined to rotatable CF flanges. Non-rotatable CF flanges provide better knife edge protection. Blank flanges are used to close of unused CF ports.

Non-rotatable single-sided CF flange
Blank to close off unused CF ports
Tapped or thru flange bolt holes

See All Features

Products

Compare	Description	Compatibility	rankScore	Flange Size	Thickness	Bolt Holes	Number of Holes	Availability	Price
100881000 Blank CF Flange, 1.33 in., Nonrotatable, Thru Bolt Holes $35 Show	100881000 Blank CF Flange, 1.33 in., Nonrotatable, Thru Bolt Holes	UNIVERSAL	1.0	1.33 in.	0.30 in.	Thru Holes	6	Show	$35
100881007 Blank CF Flange, 1.33 in., Nonrotatable, 8-32 Tapped Holes $28 Show	100881007 Blank CF Flange, 1.33 in., Nonrotatable, 8-32 Tapped Holes	UNIVERSAL	1.0	1.33 in.	0.30 in.	Tapped	6	Show	$28
100882000 Blank CF Flange, 2.125 in., Nonrotatable, Thru Bolt Holes $484 Show	100882000 Blank CF Flange, 2.125 in., Nonrotatable, Thru Bolt Holes	UNIVERSAL	1.0	2.125 in.	0.5 in.	Thru Holes	4	Show	$484
100882005 Blank CF Flange, 2.125 in., Nonrotatable, 1/4-28 Tapped Holes $50 Show	100882005 Blank CF Flange, 2.125 in., Nonrotatable, 1/4-28 Tapped Holes	UNIVERSAL	1.0	2.125 in.	0.5 in.	Tapped	4	Show	$50
100883000 Blank CF Flange, 2.75 in., Nonrotatable, Thru Bolt Holes $60 Show	100883000 Blank CF Flange, 2.75 in., Nonrotatable, Thru Bolt Holes	UNIVERSAL	1.0	2.75 in.	0.5 in.	Thru Holes	6	Show	$60
100883007 Blank CF Flange, 2.75 in., Nonrotatable, 1/4-28 Tapped Holes $47 Show	100883007 Blank CF Flange, 2.75 in., Nonrotatable, 1/4-28 Tapped Holes	UNIVERSAL	1.0	2.75 in.	0.5 in.	Tapped	6	Show	$47
100884000 Blank CF Flange, 3.375 in., Nonrotatable, Thru Bolt Holes $99 Show	100884000 Blank CF Flange, 3.375 in., Nonrotatable, Thru Bolt Holes	UNIVERSAL	1.0	3.375 in.	0.69 in.	Thru Holes	8	Show	$99
100884003 Blank CF Flange, 3.375 in., Nonrotatable, 5/16-24 Tapped Holes $193 Show	100884003 Blank CF Flange, 3.375 in., Nonrotatable, 5/16-24 Tapped Holes	UNIVERSAL	1.0	3.375 in.	0.69 in.	Tapped	8	Show	$193
100885000 Blank CF Flange, 4.5 in., Nonrotatable, Thru Bolt Holes $128 Show	100885000 Blank CF Flange, 4.5 in., Nonrotatable, Thru Bolt Holes	UNIVERSAL	1.0	4.5 in.	0.69 in.	Thru Holes	8	Show	$128
100885004 Blank CF Flange, 4.5 in., Nonrotatable, 5/16-24 Tapped Holes $110 Show	100885004 Blank CF Flange, 4.5 in., Nonrotatable, 5/16-24 Tapped Holes	UNIVERSAL	1.0	4.5 in.	0.69 in.	Tapped	8	Show	$110
100885500 Blank CF Flange, 4.625 in., Nonrotatable, Thru Bolt Holes $126 Show	100885500 Blank CF Flange, 4.625 in., Nonrotatable, Thru Bolt Holes	UNIVERSAL	1.0	4.625 in.	0.75 in.	Thru Holes	10	Show	$126
100885502 Blank CF Flange, 4.625 in., Nonrotatable, 5/16-24 Tapped Holes $205 Show	100885502 Blank CF Flange, 4.625 in., Nonrotatable, 5/16-24 Tapped Holes	UNIVERSAL	1.0	4.625 in.	0.75 in.	Tapped	10	Show	$205
