Compare Description Drawings, CAD & Specs Flange Size Tube OD Inner Diameter Length Availability Price
100316903
$107
100316903 NW25 0.5 in. 0.41 in. (10 mm) 2.4 in. (61 mm) $107
100316905
$431

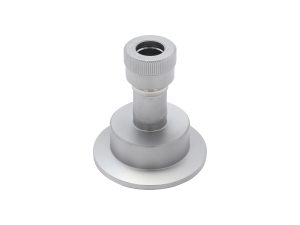

100316905 NW40 0.5 in. 0.41 in. (10 mm) 2.6 in. (66 mm) $431
100316906
$830
100316906 NW50 1.5 in. 1.25 in. (32 mm) 3.0 in. (76.2 mm) $830
100316910
$1,469
100316910 NW10 0.5 in. 0.41 in. (10 mm) 2.1 in. (53 mm) $1,469
100316911
$260

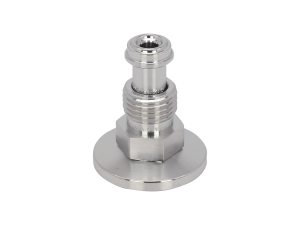

100316911 NW16 0.25 in. 0.19 in. (5 mm) 1.4 in. (36 mm) $260
100316913
$447
100316913 NW25 0.75 in. 0.62 in. (16 mm) 2.5 in. (64 mm) $447
100316915
$695
100316915 NW40 0.75 in. 0.62 in. (16 mm) 2.8 in. (71 mm) $695
100316916
$785
100316916 NW50 2.0 in. 2.01 in. (51 mm) 3.4 in. (87 mm) $785
100316921
$300
100316921 NW16 0.5 in. 0.41 in. (10 mm) 2.4 in. (61 mm) $300
100316923
$500
100316923 NW25 1.0 in. 0.88 in. (22 mm) 2.4 in. (61 mm) $500
100316925
$511
100316925 NW40 1.0 in. 0.88 in. (22 mm) 2.8 in. (71 mm) $511
100316926
$1,338
100316926 NW50 0.75 in. 0.62 in. (16 mm) 2.8 in. (71 mm) $1,338
100316931
$733
100316931 NW16 0.75 in. 0.62 in. (16 mm) 2.4 in. (61 mm) $733
100316935
$647
100316935 NW40 1.5 in. 1.25 in. (32 mm) 2.9 in. (74 mm) $647
100316936
$552
100316936 NW50 1.0 in. 0.88 in. (22 mm) 2.8 in. (71 mm) $552
100316945
$458
100316945 NW40 1.125 in. 1.14 in. (29 mm) 2.9 in. (74 mm) $458
100316946
$346
100316946 NW50 1.125 in. 1.14 in. (29 mm) 2.9 in. (74 mm) $346

Specifications

  • Component Type
    Pipe Compression Fitting Adapter
  • Series
    Series 31
  • Material
    Stainless Steel
  • Flange Type
    ISO-KF
