Compare Description Drawings, CAD & Specs Flange Size NPT Fitting Size Inner Diameter Length Availability Price
100316801
$61
100316801 NW16 0.125 in. Male 0.19 in. (5 mm) 1.57 in. (40 mm) $61
100316803
$117
100316803 NW25 0.125 in. Male 0.19 in. (5 mm) 1.57 in. (40 mm) $117
100316805
$129

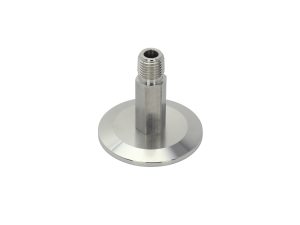

100316805 NW40 0.25 in. Male 0.26 in. (7 mm) 1.97 in. (50 mm) $129
100316806
$91
100316806 NW50 0.25 in. Male 0.26 in. (7 mm) 1.97 in. (50 mm) $91
100316811
$79

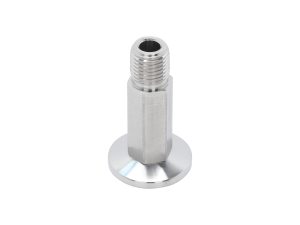

100316811 NW16 0.25 in. Male 0.26 in. (7 mm) 1.97 in. (50 mm) $79
100316813
$86
100316813 NW25 0.25 in. Male 0.26 in. (7 mm) 1.97 in. (50 mm) $86
100316815
$181

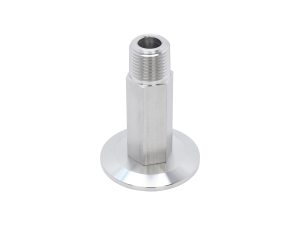

100316815 NW40 0.5 in. Male 0.45 in. (11 mm) 2.95 in. (75 mm) $181
100316816
$188
100316816 NW50 0.5 in. Male 0.45 in. (11 mm) 2.95 in. (75 mm) $188
100316823
$139
100316823 NW25 0.5 in. Male 0.45 in. (11 mm) 2.95 in. (75 mm) $139
100316825
$110
100316825 NW40 0.75 in. Male 0.78 in. (20 mm) 2.95 in. (75 mm) $110
100316826
$185
100316826 NW50 0.75 in. Male 0.78 in. (20 mm) 2.95 in. (75 mm) $185
100316833
$104
100316833 NW25 0.75 in. Male 0.78 in. (20 mm) 2.95 in. (75 mm) $104
100316835
$155
100316835 NW40 1.0 in. Male 0.88 in. (22 mm) 2.95 in. (75 mm) $155
100316836
$263
100316836 NW50 1.0 in. Male 0.88 in. (22 mm) 2.95 in. (75 mm) $263
100316844
$149
100316844 NW40 1.25 in. Male 1.12 in. (28 mm) 2.0 in. (50.8 mm) $149
100316845
$162
100316845 NW40 1.5 in Male 1.34 in. (34 mm) 2.0 in. (50.8 mm) $162
100316846
$170
100316846 NW50 2.0 in. Male 1.87 in. (47 mm) 2.0 in. (50.8 mm) $170

Specifications

  • Component Type
    Male NPT Pipe Adapter
  • Series
    Series 31
  • Material
    Stainless Steel
  • Flange Type
    ISO-KF
