RPS-CH24P1 Remote Plasma Source for High Flow Applications
Overview

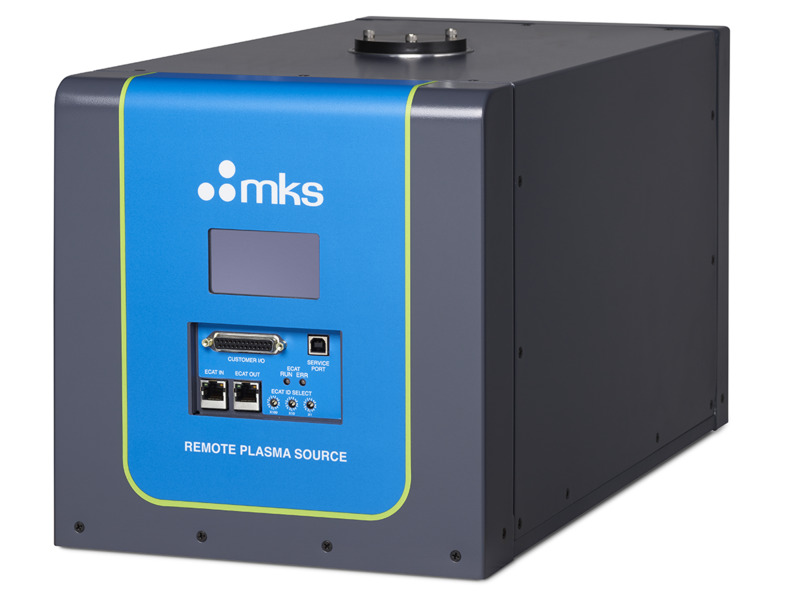

The RPS-CH24P1, 24 kW remote plasma source is designed for use with larger Atomic Layer Deposition (ALD) and Quad-style Chemical Vapor Deposition (CVD) chambers used in Semiconductor, Flat Panel Display, or Photovoltaic (PV) processes. A split-powered DC/RF design consisting of a rack mounted DC power supply and a 24 kW RF remote toroidal applicator head provides highly efficient destruction of NF3 molecules for chamber clean applications or high flow mixed gas species applications.
- Compact split applicator power design provides easy integration to OEM process chambers
- Increased Fluorine radical output shortens clean time cycles
- EtherCAT® communication enables fast, reliable data streaming and unit control
- A new plasma block assembly results in fast turn maintenance
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
RPS-CH24P1-P24C Remote Plasma Source, 24 kW, High Flow Applications |
|
Specifications
-
TypeRPS-CH24P1 Remote Plasma Source
-
Power Output24 kW
-
RF Frequency400 kHz
-
Accuracy±1% to power set point
-
Gas Supply During IgnitionAr
-
NF3 Operation Reactant Output1-25 slm 20T
-
Compatible SpeciesNF3, O2, N2, Ar
-
Mixed Species Space30-90 slm
-
THD<15%
-
Inlet Gas ConnectionKF40
-
Outlet Gas ConnectionKF50
-
Cooling Water RequiredRemote Head: 3 gpm (11.36 Lpm)
DC Power Supply: 2 gpm (7.57 Lpm) -
Control InterfaceAnalog: DB25
Digital: EtherCAT -
Power Requirements208 V, 3 phase 50/60 Hz, 75 Amps RMS max phase
-
DimensionsRemote Head: 22.02 x 10.76 x 11.1 in. (55.93 x 27.33 x 28.19 cm)
Power Supply: 21.24 x 19.00 x 7.0 in. (53.95 x 48.26 x 17.78 cm) -
WeightRemote Head: 100 lbs. (45.36 kg)
Power Supply: 62 lbs. (28.12 kg) -
ComplianceSEMI F47
Features
Resources
Literature
Drawings & CADs
- RPS-CH24P1 Remote Plasma Source Dimensional Drawings (387 kB, PDF)
Ultra-High Velocity
