Spinning Rotor Vacuum Gauge Transfer Standard
Overview

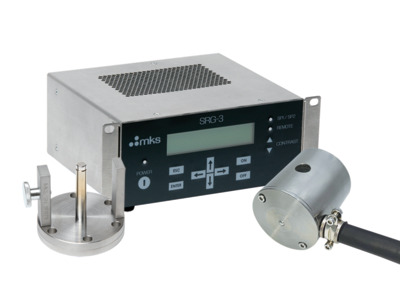

The Spinning Rotor Gauge is a high-vacuum gauge that operates by measuring the amount of viscous drag on a magnetically-levitated spinning ball, which is directly related to the number of molecules in the chamber. It is commonly used for calibration and metrology of other high-vacuum gauge sensors such as cold cathode and hot-filament ionization tubes. Its accuracy specification of 1% of reading is guaranteed over the range of 1 x 10-2 Torr (mbar) to 5 x 10-7 Torr (mbar).
- Transfer standard for calibration in 10-2 to 10-7 Torr vacuum range, DKD traceable
- Overall measurement range up to 1 Torr/mbar (with reduced accuracy)
- Insensitive to ionization effects from other vacuum gauges
- Stainless steel wetted surfaces
- Multiple outputs such as RS232, USB, high-resolution analog, and discrete trip relays
- CE and RoHS compliant
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|

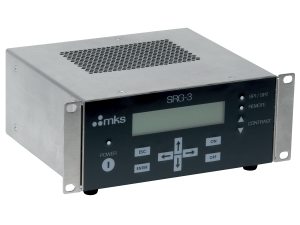

SRG3-EL Electronics Module, Spinning Rotor Gauge | $19,782.00 |
|
||||
|
SRG-SH700-V3 Measurement Head, Spinning Rotor Vacuum Gauge System, Includes Cable | $4,379.00 |
|
||||
|
SRG-BF-CAL Ball and Flange Assembly, Spinning Rotor Vacuum Gauge System, Calibrated | $2,095.00 |
|
||||
|
|
SRG-BF Ball and Flange Assembly, Spinning Rotor Vacuum Gauge System, Not Calibrated | $1,302.00 |
|
Specifications
-
Measurement Range5 x 10-5 to 100 Pa
-
Accuracyup to 1 Pa: 1% of measuring value + U
1 to 100 Pa: increasing up to 10% of measured value (typical) -
StabilityBetter than 1% per year
-
Display4½ digit LCD display
-
Display UnitsPa, mbar, or Torr
-
Analog Output0-10 VDC, into 2kΩ min. load, linear or logarithmic
-
Relays2 SPDT relays, adjustable, nominal switching capacity (resitive load): 1A 30VDC, 0.5A 25VAC
-
Digital CommunicationRS-232, USB (USB 2.0 compatible)
-
Flange Type2¾ CF, made of stainless steel, bakeable up to 450°C (without measuring head)
-
Operating TemperatureElectronics: 10-40°C
Measuring head: 10-50°C ball/flange assembly bakeable to 450°C -
EnclosureHalf 19-inch rack mount or table top, 241 x 185 x 88 mm
-
WeightElectronics: 2.5 kg
Measuring head: 0.6 kg
Measuring flange: 0.5 kg -
Power Requirements85 to 256 VAC, 47-63 Hz
-
Wetted MaterialsBall and Flange
-
ComplianceCE
