Sorry, this product is no longer offered for sale. The recommended replacement product is t2b-ethercat-exhaust-throttle-valves.

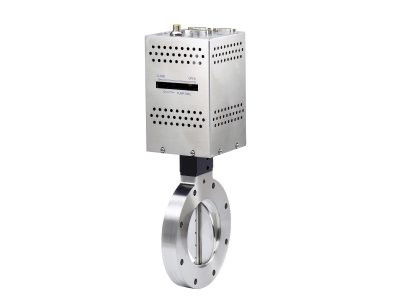

The T3B High-speed Exhaust Throttle Valves are specifically designed for applications where a simple pressure control system is desired. The T3B integrates all control, communication, and driver circuits within a throttle valve assembly, thereby eliminating the need for mounting a separate pressure control electronics module. The self-tuning control algorithm and high-speed operation drives the system to set point fast and with minimum overshoot, and ensures repeatable process recipes without operator involvement.
Specifications
- TypeT3B High Speed Exhaust Throttle Valves
- Accuracy0.25% of set point, or 5mV (whichever is greater)
- Control Range0.0001%-100% Full Scale (with Dual Transducer Input)
- Operating TemperatureMotor and Electronics: 0 to 40°C
Valve Body: 0 to 105°C, 150°C (optional) - Storage Temperature-20 to 80°C
- Seal MaterialKalrez®, Chemraz®
Others upon request
- Power RequirementsDeviceNet: 11-25 VDC
Valve Power: 24 VDC @ <100 W maximum - Valve SpeedHigh speed, direct drive non-sealing: <0.2 seconds (available in 4 inch and smaller sizes only)
Standard speed, geared drives or F-seal versions: <0.5 - 1.0 seconds (size dependent) - Input-Output SignalsAnalog I/O: Pressure input (dual channel)- Nominally ±10 VDC, ±5 VDC and ±1 VDC are selectable
Discrete I/O: Alarm trip point outputs - (2) relays @ 2.0A @ 30 VDC with status LEDs - Connectors15-pin female Type "D" each channel (Analog)
- SwitchesValve Open & Valve Close
- ComplianceCE
Resources
Manuals
T3B/T3P Throttle Valve RS-232 Interface Supplemental Manual(1.1 MB, PDF) T3B Throttle Valve DeviceNet™ Manual(570.6 kB, PDF) T3B Throttle Valve Analog/TTL Manual(526.6 kB, PDF) T3B Throttle Valve RS-232 Manual(533.5 kB, PDF) T3B/T3P Throttle Valve DeviceNet™ Interface Supplemental Manual(484.1 kB, PDF)
Drawings & CADs
T3BiA & T3BiB Dimensional Drawing(100.7 kB, PDF)
Literature
T3B High Speed Exhaust Throttle Valve (Archive)(213.5 kB, PDF)
Device Description Files
T3B Throttle Valve EDS file for REAL number data types(197.1 kB, EDS) T3B Throttle Valve EDS file for INTEGER number data types(197.1 kB, EDS)
