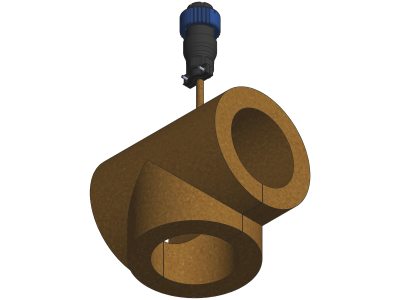

240 VAC Polyimide Tee Fitting Heater Jackets
Overview
- Compatible with ISO and Buttweld tee fittings
- Polyimide materials for heater and insulation
- 200-240 VAC power requirement
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
Heater Jacket, Polyimide, fits ISO Flanged Tee, 1.5 in. Diameter Tubing, 240V
$748
|
495015238-1150 Heater Jacket, Polyimide, fits ISO Flanged Tee, 1.5 in. Diameter Tubing, 240V | $748 |
|
|||
|
|
495015239-1150 Heater Jacket, Polyimide, fits Buttweld Tee, 1.5 in. Diameter Tubing, 240V | $748 |
|
||||
|
|
Heater Jacket, Polyimide, fits ISO Flanged Tee, 2.0 in. Diameter Tubing, 240V
$834
|
495020238-1150 Heater Jacket, Polyimide, fits ISO Flanged Tee, 2.0 in. Diameter Tubing, 240V | $834 |
|
|||
|
|
495020239-1150 Heater Jacket, Polyimide, fits Buttweld Tee, 2.0 in. Diameter Tubing, 240V | $842 |
|
||||
|
|
Heater Jacket, Polyimide, fits ISO Flanged Tee, 2.5 in. Diameter Tubing, 240V
$985
|
495025238-1150 Heater Jacket, Polyimide, fits ISO Flanged Tee, 2.5 in. Diameter Tubing, 240V | $985 |
|
|||
|
|
495025239-1150 Heater Jacket, Polyimide, fits Buttweld Tee, 2.5 in. Diameter Tubing, 240V | $985 |
|
||||
|
|
Heater Jacket, Polyimide, fits ISO Flanged Tee, 3.0 in. Diameter Tubing, 240V
$888
|
495030238-1150 Heater Jacket, Polyimide, fits ISO Flanged Tee, 3.0 in. Diameter Tubing, 240V | $888 |
|
|||
|
|
495030239-1150 Heater Jacket, Polyimide, fits Buttweld Tee, 3.0 in. Diameter Tubing, 240V | $893 |
|
||||
|
|
Heater Jacket, Polyimide, fits ISO Flanged Tee, 4.0 in. Diameter Tubing, 240V
$1,119
|
495040238-1150 Heater Jacket, Polyimide, fits ISO Flanged Tee, 4.0 in. Diameter Tubing, 240V | $1,119 |
|
|||
|
|
Heater Jacket, Polyimide, fits Buttweld Tee, 4.0 in. Diameter Tubing, 240V
$1,065
|
495040239-1150 Heater Jacket, Polyimide, fits Buttweld Tee, 4.0 in. Diameter Tubing, 240V | $1,065 |
|
Specifications
-
SeriesSeries 49
-
TypeHeater Jacket
-
Insulation MaterialPolyimide
-
Component TypeTee
-
Temperature Range35 - 200°C
-
Pre-Set Temperature150°C Standard
-
Voltage Requirements200-240 VAC
-
Heater ConnectorsCircular 6 Contact Locking Bayonet
-
Housing MaterialsController: Injection Molded
-
Controller DimensionsØ2.2 in. x 3.7 in.
-
Operating Temperature0 to 60°C
-
ComplianceCE, SEMI S2
Features
Accessories
240 VAC Heater Jacket Power Kits
Heater jacket power kits includes a power cord and a Series 49 power junction block. The junction block supplies power to a chain of heater jackets and provides for communications pass thru to adjacent upstream and downstream chains of heaters.
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|
 |
20021381-001 Power Kit, fits Series 49UL Heater Jacket, 8 ft. 240 VAC Cable and Series 49UL Power Adapter | $175 |
|
||||
| |
20021382-001 Power Kit, fits Series 49UL Heater Jacket, 15 ft. 240 VAC Cable and Series 49UL Power Adapter | $175 |
|
User Interface Communications Kit
The communications kit includes a 24 in. communication cable and a USB to Micro USB adapter. Its used for setting up an monitoring a chain of heater jackets with a user supplied tablet running the Series 49 software application.
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|
| |
20014265-001 Communications Kit, Series 49UL Heaters, Includes Communication Cable and USB Adapter | $175 |
|
Resources
Literature
- Series 49UL Thermal Management System (2.4 MB, PDF)
Manuals
- Series 49UL Quick Start Guide (542.5 kB, PDF)
- Series 49 UL User Manual (1.4 MB, PDF)
