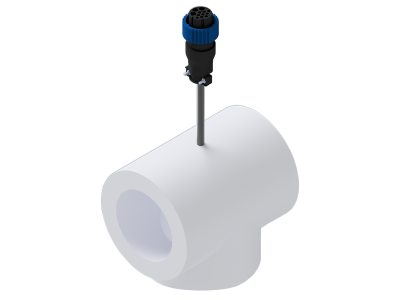

Tee Fitting 240 VAC PTFE Heater Jacket

Compare	Description	Compatibility	rankScore	Tube OD	Modulus	Flange Type	For Use With	Availability	Price
494015229-2150 Heater Jacket, PTFE-Teflon®, fits 29 in. Long, 1.5 in. Diameter Tubing, 240V $1,264 Show	494015229-2150 Heater Jacket, PTFE-Teflon®, fits 29 in. Long, 1.5 in. Diameter Tubing, 240V	UNIVERSAL	1.0	1.50 in. (38.1 mm)				Show	$1,264
494015230-2150 Heater Jacket, PTFE-Teflon®, fits 30 in. Long, 1.5 in. Diameter Tubing, 240V $1,315 Show	494015230-2150 Heater Jacket, PTFE-Teflon®, fits 30 in. Long, 1.5 in. Diameter Tubing, 240V	UNIVERSAL	1.0	1.50 in. (38.1 mm)				Show	$1,315
494015239-1150 Heater Jacket, PTFE-Teflon®, fits Buttweld Tee, 1.5 in. Diameter Tubing, 240V $806 Show	494015239-1150 Heater Jacket, PTFE-Teflon®, fits Buttweld Tee, 1.5 in. Diameter Tubing, 240V	UNIVERSAL	1.0	1.50 in. (38.1 mm)	2.19 in. (55.6 mm)	Buttweld	10023T150	Show	$806
494020238-1150 Heater Jacket, PTFE-Teflon®, fits ISO Flanged Tee, 2.0 in. Diameter Tubing, 240V $911 Show	494020238-1150 Heater Jacket, PTFE-Teflon®, fits ISO Flanged Tee, 2.0 in. Diameter Tubing, 240V	UNIVERSAL	1.0	2.00 in. (50.8 mm)	2.38 in. (60.5 mm)	ISO-KF	100314606	Show	$911
494020239-1150 Heater Jacket, PTFE-Teflon®, fits Buttweld Tee, 2.0 in. Diameter Tubing, 240V $916 Show	494020239-1150 Heater Jacket, PTFE-Teflon®, fits Buttweld Tee, 2.0 in. Diameter Tubing, 240V	UNIVERSAL	1.0	2.00 in. (50.8 mm)	2.94 in. (74.7 mm)	Buttweld	10023T200	Show	$916
494025238-1150 Heater Jacket, PTFE-Teflon®, fits ISO Flanged Tee, 2.5 in. Diameter Tubing, 240V $968 Show	494025238-1150 Heater Jacket, PTFE-Teflon®, fits ISO Flanged Tee, 2.5 in. Diameter Tubing, 240V	UNIVERSAL	1.0	2.50 in. (63.5 mm)	2.56 in. (65.0 mm)	ISO-MF	100761406	Show	$968
494025239-1150 Heater Jacket, PTFE-Teflon®, fits Buttweld Tee, 2.5 in. Diameter Tubing, 240V $980 Show	494025239-1150 Heater Jacket, PTFE-Teflon®, fits Buttweld Tee, 2.5 in. Diameter Tubing, 240V	UNIVERSAL	1.0	2.50 in. (63.5 mm)	2.94 in. (74.7 mm)	Buttweld	10023T250	Show	$980
494030238-1150 Heater Jacket, PTFE-Teflon®, fits ISO Flanged Tee, 3.0 in. Diameter Tubing, 240V $1,084 Show	494030238-1150 Heater Jacket, PTFE-Teflon®, fits ISO Flanged Tee, 3.0 in. Diameter Tubing, 240V	UNIVERSAL	1.0	3.00 in. (76.2 mm)	3.00 in. (76.2 mm)	ISO-MF	100761408	Show	$1,084
494030239-1150 Heater Jacket, PTFE-Teflon®, fits Buttweld Tee, 3.0 in. Diameter Tubing, 240V $1,084 Show	494030239-1150 Heater Jacket, PTFE-Teflon®, fits Buttweld Tee, 3.0 in. Diameter Tubing, 240V	UNIVERSAL	1.0	3.00 in. (76.2 mm)	3.19 in. (81.0 mm)	Buttweld	10023T300	Show	$1,084
494040238-1150 Heater Jacket, PTFE-Teflon®, fits ISO Flanged Tee, 4.0 in. Diameter Tubing, 240V $1,234 Show	494040238-1150 Heater Jacket, PTFE-Teflon®, fits ISO Flanged Tee, 4.0 in. Diameter Tubing, 240V	UNIVERSAL	1.0	4.00 in. (101.6 mm)	3.38 in. (85.9 mm)	ISO-MF	100761410	Show	$1,234
494040239-2150 Heater Jacket, PTFE-Teflon®, fits Buttweld Tee, 4.0 in. Diameter Tubing, 240V $1,234 Show	494040239-2150 Heater Jacket, PTFE-Teflon®, fits Buttweld Tee, 4.0 in. Diameter Tubing, 240V	UNIVERSAL	1.0	4.00 in. (101.6 mm)	3.81 in. (96.8 mm)	Buttweld	10023T400	Show	$1,234

Specifications

Series

Series 49
Type

Heater Jacket
Insulation Material

PTFE Teflon-woven
Component Type

Tee
Temperature Range

35 - 200°C
Pre-Set Temperature

150°C Standard

Voltage Requirements

200-240 VAC
Heater Connectors

Circular 6 Contact Locking Bayonet
Housing Materials

Controller: Injection Molded
Controller Dimensions

Ø2.2 in. x 3.7 in.
Operating Temperature

0 to 60°C
Compliance

CE, SEMI S2

Accessories

240 VAC Heater Jacket Power Kits

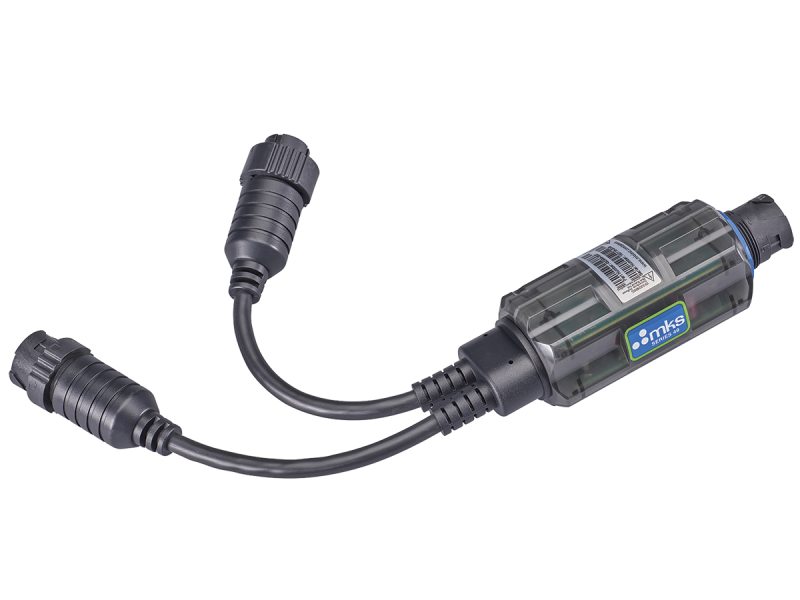

Heater jacket power kits includes a power cord and a Series 49 power junction block. The junction block supplies power to a chain of heater jackets and provides for communications pass thru to adjacent upstream and downstream chains of heaters.

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		20021381-001 Power Kit, fits Series 49UL Heater Jacket, 8 ft. 240 VAC Cable and Series 49UL Power Adapter	UNIVERSAL		Show	$175
		20021382-001 Power Kit, fits Series 49UL Heater Jacket, 15 ft. 240 VAC Cable and Series 49UL Power Adapter	UNIVERSAL		Show	$175

User Interface Communications Kit

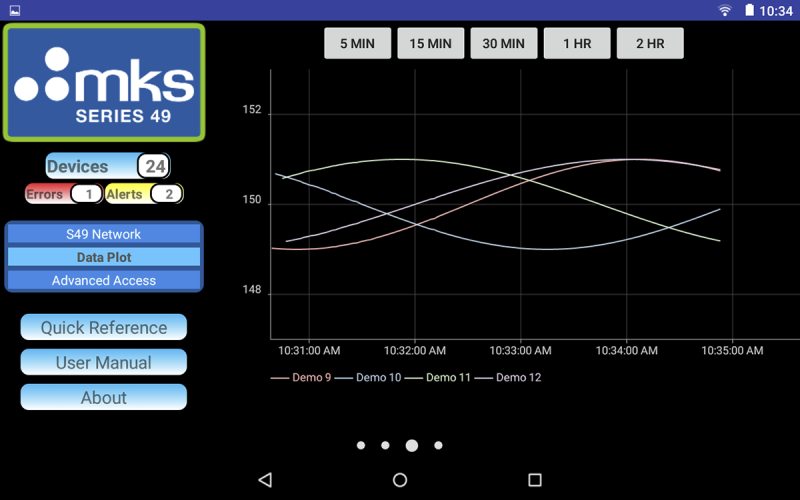

The communications kit includes a 24 in. communication cable and a USB to Micro USB adapter. Its used for setting up an monitoring a chain of heater jackets with a user supplied tablet running the Series 49 software application.

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		20014265-001 Communications Kit, Series 49UL Heaters, Includes Communication Cable and USB Adapter	UNIVERSAL		Show	$175
