CompactPCI Power Supply Cards
Model: AS00722-04
CompactPCI Power Supply Cards
Model: AS00722-04
Overview
Overview

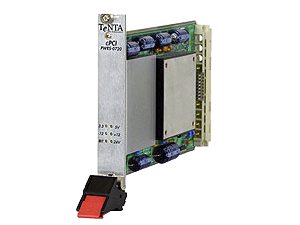

The AS00722-04 cPCI Power Supply Card provides all necessary power for a 3U CompactPCI system. The board provides power signals through the P47 connector with BIT test to the cPCI backplane. The card form factor, physical dimensions and BUS interface complies with CompactPCI (cPCI) Specification PICMG 2.0 R2.1.
Technical Specs
- TypePower Supply Card
- Power Requirements24 VDC Input
- Form FactorPlug in Eurocard, 3U Height, 8 HP Width (1 slot), IEEE (1101.1, 101.10 and P1101.11)
- Front Panel Dimension128.5 x 20.32 x 2.5 mm (height x depth x thick)
- PCB Dimensions100 x 160 x 1.6 mm (3.9370 x 6.2992 x 0.0629 in.) (height x depth x thick)
- Rear ConnectorsP47
- Front Panel Indicators6 LEDs, 24 V Input Power, 3.3 V output, 5 V output, +12 V output, -12 V output, BIT test (for future use)
- Operating Temperature0 - 70°C
- Storage Temperature-40 - 85°C
- Humidity5 - 95% non-condensing
- Weight300 g (0.66 lb)
Technical Specs
- TypePower Supply Card
- Power Requirements24 VDC Input
- Form FactorPlug in Eurocard, 3U Height, 8 HP Width (1 slot), IEEE (1101.1, 101.10 and P1101.11)
- Front Panel Dimension128.5 x 20.32 x 2.5 mm (height x depth x thick)
- PCB Dimensions100 x 160 x 1.6 mm (3.9370 x 6.2992 x 0.0629 in.) (height x depth x thick)
- Rear ConnectorsP47
- Front Panel Indicators6 LEDs, 24 V Input Power, 3.3 V output, 5 V output, +12 V output, -12 V output, BIT test (for future use)
- Operating Temperature0 - 70°C
- Storage Temperature-40 - 85°C
- Humidity5 - 95% non-condensing
- Weight300 g (0.66 lb)
