Specifications

  • Type

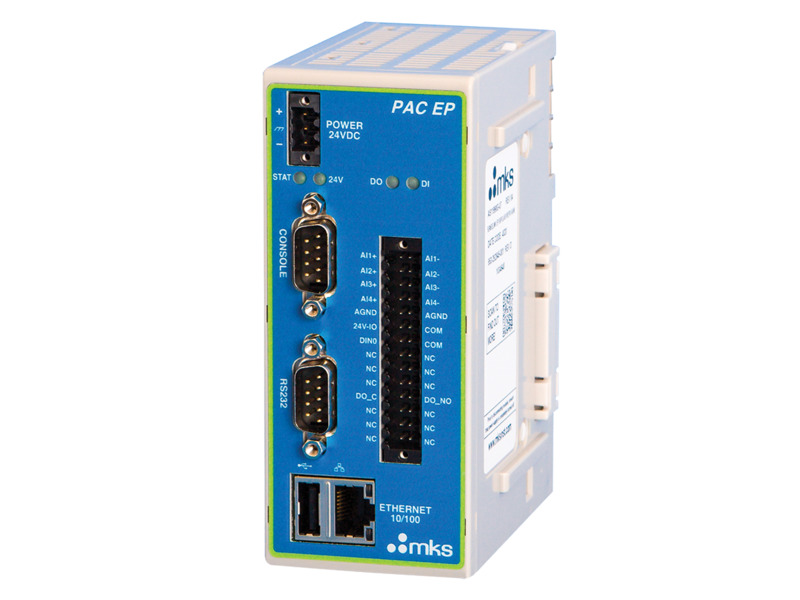

    PAC Endpoint I/O
  • Power Consumption
    Device: 24VDC, ±10%, 0.5A(max), 0.3A(typical)
    AIO Power: Internally powered. No external power required.
  • Connector
    Power: 3 pin with polarity and locking (mating connector provided)
    I/O: D-sub 50 pin female
    Network: 10/100BaseT, RJ45 connector
  • Digital I/O
    Number of DI: 1, Active low, internal pull-up to 24VDC
    Max DI Current: 30 mA
    Number of DO: 1, Dry contact relay, 1A max
  • Analog Input
    Number of Inputs: 4 Differential analog inputs
    Input Range: 0 to +10V
    Resolution: 16-bit
    Filtering: 200Hz ±20%, 6dB/octave Min
    Impedance: 10 MΩ
  • Analog Output
    Number of Outputs: 0
  • Communication
    Ethernet
  • Front Panel Indicators
    Network: Status LEDs on RJ45
    System Status: System Ready(green), 24VDC Health (Green)
    Digital Input/Output Points: DO On/Off Status(Green), DI On/Off Status(Green)
  • Operating Temperature
    0-50°C
  • Storage Temperature
    -40 to 85°C
  • Humidity
    5-85% non-condensing
  • Dimensions
    4.921 x 2.066 x 3.633 in. (125 x 52.5 x 92.3 mm)
  • Weight
    0.661 lb (300 g)
