Specifications

  • Type

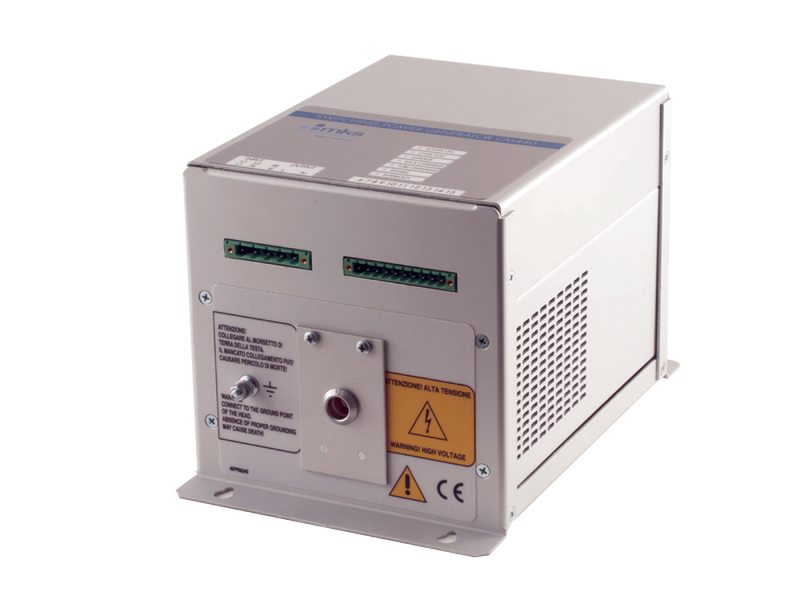

    Microwave Power Supply
  • Power Output
    1450 W
  • Power Requirements
    190 - 265 VAC
  • Line Frequency
    50/60 Hz
  • Efficiency
    90%
  • Output Current
    350 mA
  • Alarm Management
    In the event of an alarm condition, the alarm contact opens, the output power is switched off and the alarm contact is latched. A reset procedure is required to turn the unit back on.
  • Dimensions
    180 x 178 x 280 mm (7.1 x 7.1 x 11 inches) (width x height x depth)
  • Weight
    5.6 kg (12.4 lbs.)
  • Cooling
    Forced air, 80 m3/h
  • Ambient Operating Temperature
    40°C (104°F) (max.)
  • Compliance
    CE mark, Directive EMC and LV, through norms, EN61010-1, EN61000-6-4, EN61000-6-2
  • Preferred Microwave Magnetron Head
    TMx09 (Closed head, waveguide size WR340)
  • Compatible with
    1.0 kW, 2.45 GHz Magnetron
