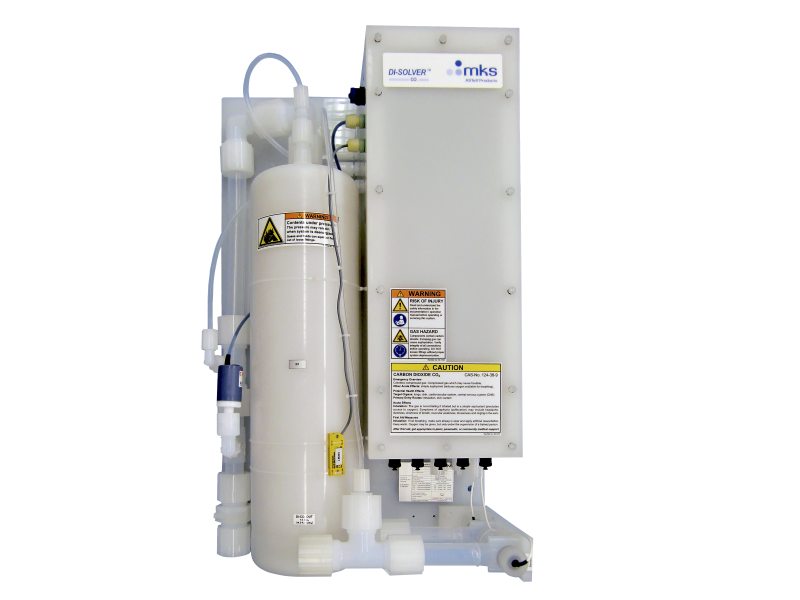

DI-CO2 Water Delivery System

Type

Disolved CO2 System
Flow Rate

Minimum total flow: 0.5 L/min (0.1 gpm), Maximum total flow: 90 L/min (15.8 gpm)
Communication

Binary in/out (dry contacts), RS232, analog out, USB
Power Requirements

24 VDC, 60 W
Accuracy

Typical maximum deviation from set point: Steady state flow: ±3%, Fluctuating flow: ±10% for flow changes <4 L/min per sec
UPW Temperature Range

20 - 50°C
Outlet Pressure

1.0 - 3.0 barg (0.1 - 0.3 MPag, 14.5 - 43.5 psig), depending on UPW supply pressure

Conductivity/Resistivity Range

Minimum conductivity 5 µS/cm, max. resistivity 200 kOhm*cm Maximum conductivity 50 µS/cm, min resistivity 20 kOhm*cm, for System Pressure greater than or equal to 2 barg
Measurement

Available with integrated or external sensor
Connection

Super 300 Type Pillar Fitting or Flaretek®
Plumbing Materials

Liquid contacted surfaces: PFA, PVDF
Cabinet Material

PVDF, C-PVC or FRPP
Dimensions

386 x 650 x 232 mm (WxHxD) (approximate)
Weight

17.3 kg (empty), 23.3 kg (filled with water) (approximate)
