Industrial Absolute Pressure Transducers
These industrial Baratron® capacitance manometers feature absolute pressure measurement, industrial enclosures, and higher operating temperature ranges for industrial applications.
AA09A 1-25,000 Torr Baratron® Absolute Pressure Transducer with Bakeable Sensor
- All-metal sensor eliminates problems associated with glass, mercury, and liquid gauges
- Useable resolution of 1 part in 10,000 minimizes the number of transducers for a wide range of pressures
- Remote electronics allow sensor to operate at temperatures up to 150°C
750D 20-3000 PSIA Baratron® Absolute Capacitance Manometers
- 20 to 3000 psia full scale ranges with ±1% of reading accuracy
- 4-20 mA, 0-5 VDC or 0-10 VDC output proportional to absolute pressure
- Overpressure limit of two times Full Scale or 45 psia with no performance degradation
R750D 10-3000 PSIG Baratron® Absolute Capacitance Manometers with Trip Relays
- 10 Torr (13 mbar) to 3000 PSI (204 bar) ranges with ±1% of reading accuracy
- 0 to 10 VDC analog output proportional to absolute pressure
- Two independently-adjusted trip point relays

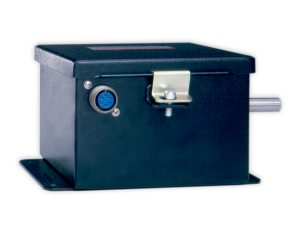

220DA 1-25000 Torr Heated (45°C) Baratron® Absolute Capacitance Manometer
- Temperature controlled to 45°C for 0.15% of reading accuracy
- Simultaneous 0-10 VDC and 4-20 mA outputs proportional to absolute pressure
- NEMA 1 enclosure for sensor protection in harsh industrial environments
