New AA09A 1-25,000 Torr Baratron® Absolute Pressure Transducer with Bakeable Sensor
New AA09A 1-25,000 Torr Baratron® Absolute Pressure Transducer with Bakeable Sensor

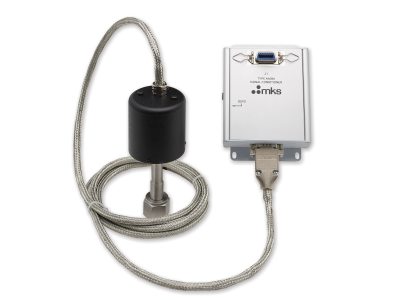

The AA09A Baratron® capacitance manometer employs a high temperature sensor which can operate at up to 150°C (bakeable to 200°C) for critical processing applications. Based on Baratron capacitance manometer technology, the sensors wetted surfaces are Inconel® for excellent resistance to corrosive gases. The sensor and electronics of the AA09A are separated by an eight foot cable, which allows the electronics to be mounted away from sources of heat. The AA09A can be used with MKS power supplies, display units, and pressure controllers, or the user’s compatible power supply/readout devices.
- All-metal sensor eliminates problems associated with glass, mercury, and liquid gauges
- Useable resolution of 1 part in 10,000 minimizes the number of transducers for a wide range of pressures
- Remote electronics allow sensor to operate at temperatures up to 150°C
- Sensor is capable of handling any corrosive gases compatible with Inconel and stainless steel See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | AA09A01TCE0Absolute Pressure Transducer, 1 Torr, 0.5%, 0-10 VDC, 8 VCR-F, Remote Electronics | |||||
| AA09A11TCE0Absolute Pressure Transducer, 10 Torr, 0.5%, 0-10 VDC, 8 VCR-F, Remote Electronics | |||||
| AA09A12TCE0Absolute Pressure Transducer, 100 Torr, 0.5%, 0-10 VDC, 8 VCR-F, Remote Electronics | |||||
| AA09A13TCE0Absolute Pressure Transducer, 1000 Torr, 0.5%, 0-10 VDC, 8 VCR-F, Remote Electronics |
Configuration Options
The following options are available for AA09A Baratron® Pressure Transducers with Remote Electronics
Ordering Code Example: AA09AXXXXXX
| Configuration Option | Option Code |
|---|---|
| AA09A Baratron Absolute Pressure Transducer with Remote Electronics | AA09A |
Pressure Range Full Scale* |
|
| 1 Torr | 01 |
| 2 Torr | 02 |
| 10 Torr | 11 |
| 100 Torr | 12 |
| 1000 Torr | 13 |
| 5000 Torr | 53 |
| 10,000 Torr | 14 |
| 15,000 Torr | RB |
| 20,000 Torr | 24 |
| 25,000 Torr | RC |
Units of Measure |
|
| Torr/mmHG | T |
| mbar | M |
| KPa | K |
| Pa | L |
Fitting Type |
|
| Straight tube, 0.5 in. OD (≤1000 Torr) | BA |
| 8 VCR female | CE |
| Mini Conflat, Rotatable | HA |
| NW16-KF (≤1000 Torr) | GA |
Accuracy |
|
| Standard 0.5% of Reading | 0 |
Specifications
- TypePressure Transducer
- Sensor TypeIndustrial Capacitance Manometer
- Measurement TypeAbsolute
- Full Scale Range1, 2, 10, 100, 1000, 5000, 10000, 15000, 20000, and 25000 Torr
- Accuracy0.5% of Reading
- Resolution0.01% of Full Scale
- Analog Output0 to 10 VDC into >10k Ω
- Electrical Connector14-pin micro
- Zero Temperature Coefficient0.02% Full Scale/°C
- Span Temperature Coefficient0.04% of Reading
- Operating Temperature RangeSensor: 0 - 150°C (bakeable to 200°C with cable removed)
Preamp: 0 - 50°C - Exposed MaterialsInconel and 316 SS
- Volume7.0 cc
- Power Requirements±15 VDC @ 35mA regulated to ±5%
- ComplianceCE
