225 Auto-Soft Flow Actuated Check Valves
Overview

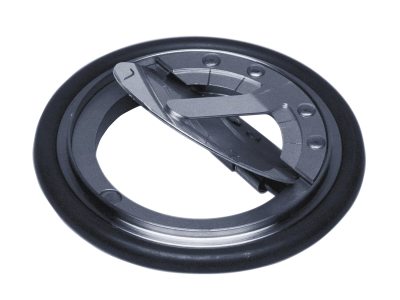

The Series 225 Auto-Soft is a flow-actuated check valve used for throttling roughing pumps during initial evacuation. Auto-Soft check valves close very quickly at the start of system evacuation and open automatically upon reaching a set pressure differential. This leaves the pumping line open for the balance of the pumping process.
- NW40 - NW50
- Operates automatically without electrical or other external power
- Reduces particulate contamination by reducing system turbulence during venting
Products
Specifications
-
TypeCheck Valve for Automatic Soft Starts
-
O-ringViton®
-
Operating Temperature100°C max.
-
Tube Outer DiameterNW40, NW50
-
Required Clearance0.3 - 1.0 inches, depending on configuration
-
Spring MaterialElgiloy®
-
Closing FlowNW40: 6 CFM/sec, NW50: 12 CFM/sec
-
Ring, Tabs, Stop & Axel MaterialType 304 stainless steel
-
Vane MaterialInconel® 625
-
Bearing MaterialTeflon®
-
Closing TimeNW40: 10 ms, NW50: 12 ms
-
Opening PressureNW40: 2 Torr, NW50: 3 Torr
-
Pumpdown TimeTypical increase in pumpdown time is 3 times.
Times were measured using a pump capacity of 27 CFM for NW 40, 70 CFM for NW 50 and a volume of 100 liters.
