370 Stabil-Ion® Hot-cathode Ionization Vacuum Gauges
Overview

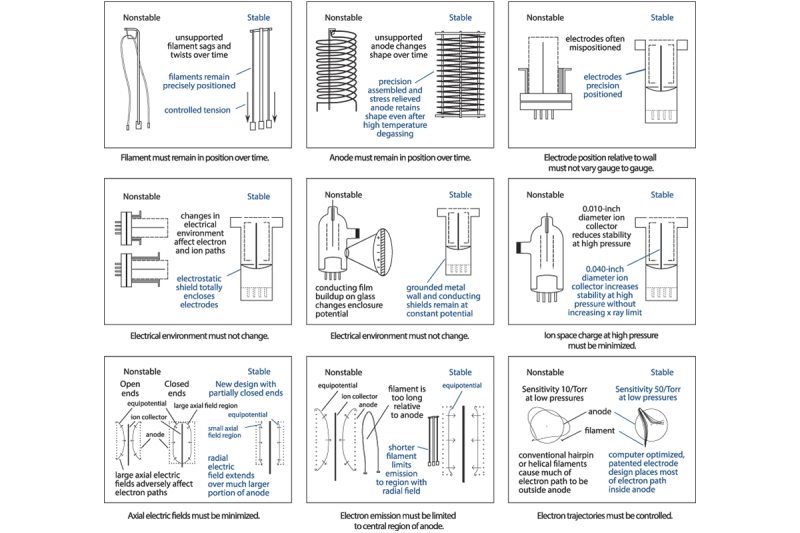

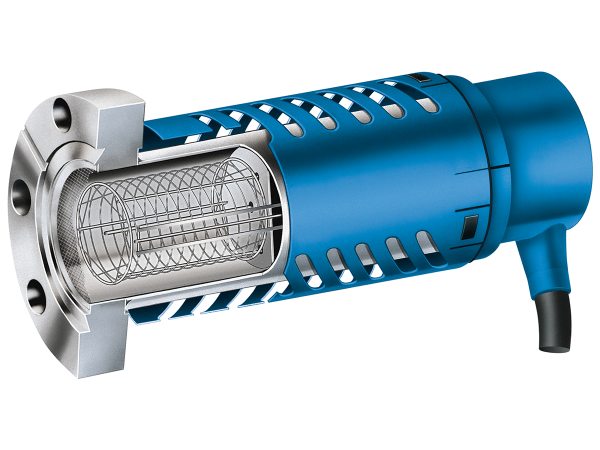

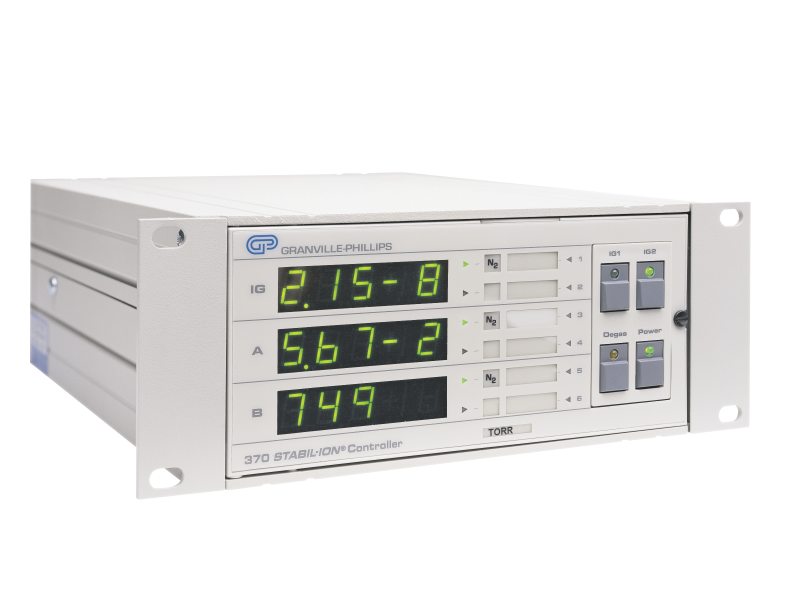

Granville-Phillips® 370 Stabil-Ion® Bayard-Alpert Vacuum Gauges are the most accurate Bayard-Alpert style hot-cathode ionization vacuum pressure gauges featuring an all metal gauge tube that eliminates glass breakage, glass decomposition, or helium permeation. A complete electrostatic shield and grounded metal gauge tube housing provide a stable electrical environment and shield against external electrical influences.
- Ionization gauge for accurate vacuum measurement from the 10-11 Torr range
- Convectron Gauge option extends pressure measurement to atmosphere
- Stabil-Ion Gauge has memory module with calibration data
- Ultra-clean gauge construction allows rapid response during pumpdown
- Dual filaments increase equipment uptime
Products
Specifications
| Models |
|
|
|
|---|---|---|---|
| Sensor Type | Bayard-Alpert Hot Cathode | Bayard-Alpert Hot Cathode | |
| Measurement Range | 2.0 x 10-10 to 999 Torr | 2.0 x 10-11 to 999 Torr | |
| Accuracy | 1 x 10-8 - 1 x 10-4 Torr, ±4% of reading (for N2) | 1 x 10-8 - 1 x 10-4 Torr, ±4% of reading (for N2) | |
| Repeatability | 1 x 10-8 Torr to 1 x 10-4, Torr ±3% of reading | 1 x 10-8 Torr to 1 x 10-4, Torr ±3% of reading | |
| Analog Output | 1 volt/decade, logarithmic, 0 - 10 Vdc | 1 volt/decade, logarithmic, 0 - 10 Vdc | |
| Fitting Type | CF Flange | CF Flange | |
| Flange Size | 2.75 in. | 2.75 in. | |
| Electron Bombardment Degas | 40 Watts, 1 - 30 minutes (adjustable) | 40 Watts, 1 - 30 minutes (adjustable) | |
| Emission Current | 0.1 mA and 4.0 mA | 0.1 mA and 4.0 mA | |
| Operating Temperature | 0 - 40°C | 0 - 40°C | |
| Storage Temperature | -40 - 70°C | -40 - 70°C | |
| Power Requirements | 90 - 130 VAC, 180 - 250 VAC, 50 - 60 Hz, 220 W max | 90 - 130 VAC, 180 - 250 VAC, 50 - 60 Hz, 220 W max | |
| Compliance | CE | CE |
Features
Resources
Literature
- Vacuum Measurement Product Guide (711.5 kB, PDF)
- 370 Stabil-Ion® Vacuum Gauge and Controller (458 kB, PDF)
Manuals
- 370 Stabil-Ion® Controller Vacuum Measurement System Manual (1.7 MB, PDF)
- 370 Stabil-Ion® Gauge Controller with RS-485 Interface Option (333.1 kB, PDF)
- 370 Stabil-Ion® Gauge Installed Internal to Vacuum Chamber (427.6 kB, PDF)
