Overview

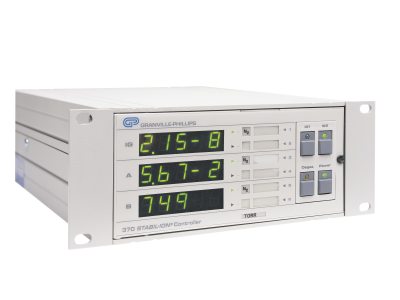

The Granville-Phillips® 370 Stabil-Ion® Vacuum Gauge Controller is a rack-mounted controller providing unmatched ionization gauge performance for the all-metal 370 Stabil-Ion® Gauge, delivering the long-term performance of a spinning rotor gauge at a fraction of the cost using calibration on a chip.

Noise-immune, all-metal, rack-mount controller for Stabil-Ion & Convectron gauges
Bright, easy-to-read, flicker-free, 3-line, green LED display
Digital display in Torr, Millibar, or Pascal
Up to six process control set point relays are available
RS-232 or RS-485 interface allows easy integration

See All Features

Products

Compare	Description	Compatibility	rankScore	Compatible with	Interface	Relays	Units	Electrical Plug	Availability	Price
370501-000-M1 Vacuum Gauge Controller, Stabil-Ion, mBar Units, 120 VAC Cord $3,618 Show	370501-000-M1 Vacuum Gauge Controller, Stabil-Ion, mBar Units, 120 VAC Cord	UNIVERSAL	1.0	370 Stabil-Ion Gauge	No	0	mbar	North America & Japan 120 VAC	Show	$3,618
370501-000-M2 Vacuum Gauge Controller, Stabil-Ion, mBar Units, 240 VAC Cord $3,618 Show	370501-000-M2 Vacuum Gauge Controller, Stabil-Ion, mBar Units, 240 VAC Cord	UNIVERSAL	1.0	370 Stabil-Ion Gauge	No	0	mbar	North America 240 VAC	Show	$3,618
370501-000-M3 Vacuum Gauge Controller, Stabil-Ion, mBar Units, 220 VAC Cord, Europe $3,618 Show	370501-000-M3 Vacuum Gauge Controller, Stabil-Ion, mBar Units, 220 VAC Cord, Europe	UNIVERSAL	1.0	370 Stabil-Ion Gauge	No	0	mbar	Europe 220 VAC	Show	$3,618
370501-000-M4 Vacuum Gauge Controller, Stabil-Ion, mBar Units, 240 VAC Cord, UK $3,618 Show	370501-000-M4 Vacuum Gauge Controller, Stabil-Ion, mBar Units, 240 VAC Cord, UK	UNIVERSAL	1.0	370 Stabil-Ion Gauge	No	0	mbar	UK 240 VAC	Show	$3,618
370501-010-T1 Vacuum Gauge Controller, Stabil-Ion, Torr Units, Dual Convectron, 120V $4,253 Show	370501-010-T1 Vacuum Gauge Controller, Stabil-Ion, Torr Units, Dual Convectron, 120V	UNIVERSAL	1.0	370 Stabil-Ion and 275 Convectron Gauges	No	0	Torr	North America & Japan 120 VAC	Show	$4,253
370501-020-T1 Vacuum Gauge Controller, Stabil-Ion, Torr Units, Convectron & Manometer, 120V $4,568 Show	370501-020-T1 Vacuum Gauge Controller, Stabil-Ion, Torr Units, Convectron & Manometer, 120V	UNIVERSAL	1.0	370 Stabil-Ion, 275 Convectron, and Capacitance Manometers	No	0	Torr	North America & Japan 120 VAC	Show	$4,568
370501-A00-T1 Vacuum Gauge Controller, Stabil-Ion, Torr Units, RS232, 120 VAC Cord $4,185 Show	370501-A00-T1 Vacuum Gauge Controller, Stabil-Ion, Torr Units, RS232, 120 VAC Cord	UNIVERSAL	1.0	370 Stabil-Ion Gauge	RS232	0	Torr	North America & Japan 120 VAC	Show	$4,185
370501-A1A-T1 Vacuum Gauge Controller, Stabil-Ion, Torr Units, RS232, 120 VAC Cord $5,329 Show	370501-A1A-T1 Vacuum Gauge Controller, Stabil-Ion, Torr Units, RS232, 120 VAC Cord	UNIVERSAL	1.0	370 Stabil-Ion and 275 Convectron Gauges	RS232	2	Torr	North America & Japan 120 VAC	Show	$5,329
370501-B00-T1 Vacuum Gauge Controller, Stabil-Ion, Torr Units, RS485, 120 VAC Cord $4,284 Show	370501-B00-T1 Vacuum Gauge Controller, Stabil-Ion, Torr Units, RS485, 120 VAC Cord	UNIVERSAL	1.0	370 Stabil-Ion Gauge	RS485	0	Torr	North America & Japan 120 VAC	Show	$4,284
370501-B1A-T1 Vacuum Gauge Controller, Stabil-Ion, Torr, Dual Convectron, RS485, 2 Relays, 120V $5,392 Show	370501-B1A-T1 Vacuum Gauge Controller, Stabil-Ion, Torr, Dual Convectron, RS485, 2 Relays, 120V	UNIVERSAL	1.0	370 Stabil-Ion and 275 Convectron Gauges	RS485	2	Torr	North America & Japan 120 VAC	Show	$5,392
370501-B1B-T1 Vacuum Gauge Controller, Stabil-Ion, Torr, Dual Convectron, RS485, 6 Relays, 120V $5,518 Show	370501-B1B-T1 Vacuum Gauge Controller, Stabil-Ion, Torr, Dual Convectron, RS485, 6 Relays, 120V	UNIVERSAL	1.0	370 Stabil-Ion and 275 Convectron Gauges	RS485	6	Torr	North America & Japan 120 VAC	Show	$5,518

Show All

Specifications

Measurement Range

UHV Stabil-Ion Gauge (with Convectron): 2 x 10^-11 to 999 Torr; 3 x 10^-11 to 1.33 x 103 mbar; 3 x 10^-9 to 1.33 x 105 Pa
Extended Range Stabil-Ion Gauge with Convectron): 2 x 10^-10 to 999 Torr; 3 x 10^-10 to 1.3 x 10³ mbar;3 x 10^-8 to 1.3 x 10⁵ Pa
Display

3 digits, plus exponent, green LED
Units

Torr, mbar, or Pa
Power Requirements

90-130 Vac, or 180-250 VAC, 50/60 Hz, 220 W max
Communication Protocol

RS232, RS485
Analog Output

Stabil-Ion: 1 volt per decade, logarithmic, 0-10 VDC
Convectron option: 1 volt per decade, logarithmic, 0-7 VDC
Set Point Contact Rating

5 A at 250 Vac, 5 A at 30 Vac, resistive load
Set Point Configuration

Single pole, double throw (SPDT)

Accuracy

1 x 10^-8 Torr to 1 x 10^-4 Torr: ±4% of reading (N2)
Repeatability

1 x 10^-8 Torr to 1 x 10^-4 Torr: ±3% of reading
Emission Current

0.1 mA and 4.0 mA
Degas

Electron bombardment, 40 W, 1-30 minutes (adjustable)
Operating Temperature

0-40°C
Storage Temperature

-40 to 70°C
Case Materials

Aluminum extrusion, steel, plastic

Features

Accessories

Compatible Cables

Description	Compatibility	Avail.	Price
360116-10 Vacuum Gauge Cable, Stabil-Ion Gauge to Controller, 10 ft.	UNIVERSAL	Show	$387
360116-25 Vacuum Gauge Cable, Stabil-Ion Gauge to Controller, 25 ft.	UNIVERSAL	Show	$486
360116-50 Vacuum Gauge Cable, Stabil-Ion Gauge to Controller, 50 ft.	UNIVERSAL	Show	$740
360116-100 Vacuum Gauge Cable, Stabil-Ion Gauge to Controller, 100 ft.	UNIVERSAL	Show	$1,423
360116-200 Vacuum Gauge Cable, Stabil-Ion Gauge to Controller, 200 ft.	UNIVERSAL	Show	$2,360
