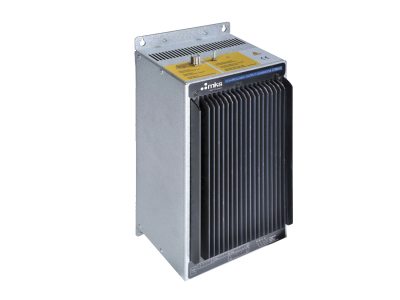

Alter® CR 840 Compact, Air-cooled, Resonant Microwave Power Supply for 2kW, 2.45 GHz Magnetrons

The CR 840 magnetron power supply is a compact, air-cooled, switch-mode power supply designed to drive most nominal 2 kW @ 2.45 GHz magnetron models. Depending on the model, power output can be variably adjusted from 10 to 100% using an external analog signal, a digital PWM signal, or with a simple digital ON-OFF signal.

Compact and lightweight form factor makes it ideal for installations where the space saving is critical
ON/OFF version is a highly competitive alternative to large & heavy, traditional L-C power supplies
High efficiency power supply design requires only air cooling for simple & low cost installation
Standard output ripple suitable for industrial heating applications
Stable filament control for in long magnetron life
Efficient power stage design results in very low harmonics and inrush current

See All Features

	Compare	Description	Compatibility	Drawings, CAD & Specs	Power Output	Power Requirements	Line Frequency	Efficiency	Avail.	Price
		CR-840Microwave Power Supply, 2 kW, 2.45 GHz Magnetron, Alter CR-840	UNIVERSAL		3000 W	3 x 400 V + N	50/60 Hz	92%

Specifications

Type
CR 840 Switch-mode Microwave Power Supply
Power Output
3000 W max
Input Voltage
3 x 400V + N
Line Frequency
50/60 Hz
Efficiency
92%
Output Current
750 mA max
Alarm Management
In the event of an alarm condition, the alarm contact opens, the output power is switched off and the alarm contact is latched. A reset procedure is required to turn the unit back on.

Dimensions
Width, 190 mm (7.48 inches)
Height, 168.5 mm (6.63 inches)
Length, 387 mm (15.24 inches)
Weight
10kg (22 lbs)
Cooling
Forced air, approx 80 m³/h
Ambient Operating Temperature
40° C (104° F) maximum
Compliance
CE
Preferred Microwave Magnetron Head
TMA20 (Closed head, air cooled, waveguide size WR340)
TM020 (Closed head, water cooled, waveguide size WR 340)
TI020 (Integral head, waveguide size WR340, includes isolator)
Other manufacturer's electrically compatible heads.

Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		DC1340Microwave Directional Coupler, Single Channel, 2450 MHz	UNIVERSAL
		AG340Microwave Tuner, Air-Cooled, Manual, 3-Stub, 2450 MHz	UNIVERSAL
		RD8400A1Microwave Linear Power Sensor, Single Channel, 2450 MHz	UNIVERSAL
		RD8400A2Microwave Linear Power Sensor, Dual Channel, 2450 MHz	UNIVERSAL
