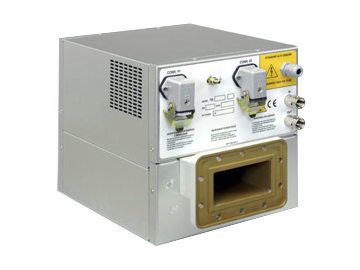

Alter® TM Closed Frame Microwave Magnetron Heads
Alter® TM Closed Frame Microwave Magnetron Heads
Alter® TM Series Microwave Heads are available with either air cooled magnetron (TMA) or water cooled magnetron (TM0), and power ranging from 1.0 kW up to 10 kW. These heads are designed for applications where the head will not have any further enclosure. Alter® TM Series Microwave Heads are easy to install - with connectors for line power and signals, and have been designed for the highest energy transfer to load, and when installed and used according the magnetron's manufacturers specification can be expected to reach the longest tube life. If power levels exceed 2 kW, it is recommended that an isolator be installed.
- Simple, rugged and cost-effective design
- Standard waveguide size WR 340, able to handle up to 10 kW power @ 2,450 MHz Microwave Power Systems
- Complete cable sets, with length on request, for easy "plug & play" with Alter® power supplies See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | ALTER-TMMicrowave Magnetron Head, Closed Frame , 2450 MHz |
Specifications
- TypeTM Series Closed Frame Magnetron Head
- CoolingTMA: Air
TM0, TM5810: Water - Power OutputTMA: 1, 1.2, 2, 3 kW
TM0: 1.2, 2, 3, 6, 10 kW
- Flange TypeTMA, TM0: R26
TM5810: R58 - FrequencyTMA, TM0: 2450 MHz
TM5810: 5800 MHz
Resources
Manuals
C150 & TM150 Manual(2.6 MB, PDF) TM060/TM061 Magnetron Head Manual(771.9 kB, PDF) TM 150 Magnetron Head Manual(449.9 kB, PDF) TM 066 & TM 100 Magnetron Head Manual(471.4 kB, PDF) TMA/TM0 Magnetron Head Manual(867.1 kB, PDF)
Drawings & CADs
TMO Microwave Head Dimensional Drawing(44.3 kB, PDF) TMA Microwave Head Dimensional Drawing(44.7 kB, PDF)
