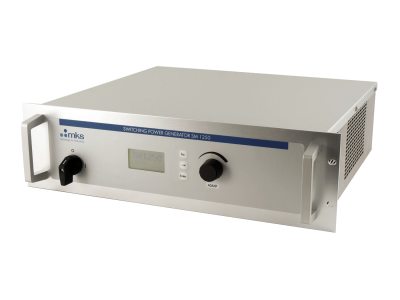

Alter® SM 1250 Air-cooled Switch Mode Microwave Power Supply for 3kW, 2.45 GHz Magnetrons

The SM 1250 magnetron power supply is a compact, air-cooled, switch-mode power supply designed to drive most nominal 3 kW @ 2.45 GHz magnetron models. For power control versatility, depending on the model, the output power of the SM 1250 can be variably adjusted from 10 to 100% using an external 1 to 10 VDC analog signal, or by remote control through a fieldbus interface or by front panel commands.

High efficiency power supply design requires only air cooling - simplifies installation & reduces cost
Low output ripple - suitable for most applications
Advanced filament control for low maintenance and long magnetron life
Efficient power stage design for low harmonics and inrush current
"Plug & Play" design for fast & easy installation

See All Features

	Compare	Description	Compatibility	Drawings, CAD & Specs	Power Output	Power Requirements	Line Frequency	Efficiency	Avail.	Price
		SM-1250Microwave Power Supply, Switch Mode, 3 kW, 2.45 GHz Magnetron	UNIVERSAL		4500 W (max.)	3 x 208V, 3 x 400V	50/60 Hz	92%

Specifications

Type
SM 1250 Switch-mode Microwave Power Supply
Power Output
4500 W max
Input Voltage
3 x 208VAC or 3 x 400VAC
Line Frequency
50/60 Hz
Efficiency
92%
Output Current
1000 mA max
Alarm Management
In the event of an alarm condition, the alarm contact opens, the output power is switched off and the alarm contact is latched. A reset procedure is required to turn the unit back on.

Dimensions
Width, Rack 447.4 mm (17.61 inches)
Width, Front Panel 483 mm (19.02 inches)
Height, Total 130.5 mm (3U, 5.14 inches)
Length, Total 420 mm (16.54 inches)
Weight
21kg (46 lbs)
Cooling
Forced air, approx 120 m³/h
Ambient Operating Temperature
40°C (104° F) max
Compliance
CE
Preferred Microwave Magnetron Head
TM031 (Closed head, waveguide size WR340), or TI031 Integral Head with Iso launcher, waveguide size WR340 (others if electrically compatible)

Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		AG340Microwave Tuner, Air-Cooled, Manual, 3-Stub, 2450 MHz	UNIVERSAL
		DC1340Microwave Directional Coupler, Single Channel, 2450 MHz	UNIVERSAL
		RD8400A1Microwave Linear Power Sensor, Single Channel, 2450 MHz	UNIVERSAL
		RD8400A2Microwave Linear Power Sensor, Dual Channel, 2450 MHz	UNIVERSAL
