Alter® SM 1280 Air-cooled Switch Mode Microwave Power Supply for 6kW, 2.45 GHz Magnetrons
Alter® SM 1280 Air-cooled Switch Mode Microwave Power Supply for 6kW, 2.45 GHz Magnetrons

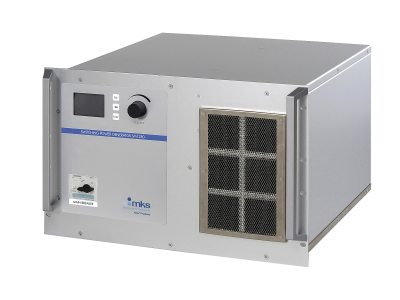

Alter® SM 1280 is an air-cooled power supply for 6 kW magnetron. It is able to power and control most types of magnetrons with nominal power of 6 kW @ 2.45 GHz. Output power can be adjusted continuously, from 10% up to 100%, using an external analog signal from 1 to 10VDC, by remote control via fieldbus interface, or with front panel commands (depending on the model).
- Proven design - more than a thousand units sold worldwide
- High efficiency design requires only air cooling
- Low output ripple, suitable for most applications, and stable filament control for long magnetron life
- Efficient power stage design for very low harmonics and inrush current
- "Plug & Play" design
- 208, 400 and 480 VAC input voltages available See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | SM-1280Microwave Power Supply, Switch Mode, 6 kW, 2.45 GHz Magnetron |
Specifications
- TypeSM 1280 Microwave Power Supply
- Power Output8500 W max
- Input Voltage3 x208V x400V x480V
- Line Frequency50/60 Hz
- Efficiency92%
- Output Current1150 mA max
- Alarm ManagementOpening alarm contact, emission of a 4 bit alarm code, the alarm is latched and requires a reset procedure
- DimensionsWidth, Rack 444 mm (17.5 inches)
Width, Front Panel 480 mm (19 inches)
Height, Total 310 mm (7U, 12.25 inches)
Length, Total 482 mm (19 inches) - Weight35kg (77 lbs)
- CoolingForced air, approx 200 m3/h
- Ambient Operating Temperature40°C (104° F) max
- ComplianceCE
- Preferred Microwave Magnetron HeadTM060 or TM066
