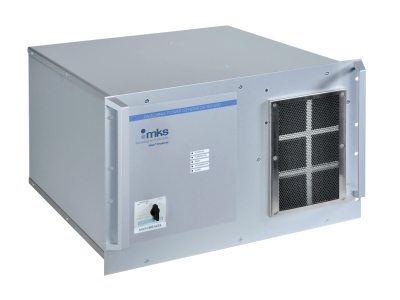

Alter® SM 1690 Air-cooled Switch Mode Microwave Power Supply for 10kW, 2.45 GHz Magnetrons
Alter® SM 1690 Air-cooled Switch Mode Microwave Power Supply for 10kW, 2.45 GHz Magnetrons
The SM 1690 magnetron power supply is an air-cooled power supply designed to drive the compact H915 magnetron with permanent magnet, with power of 10 kW @ 2.45 GHz. For power control versatility, the output power of the SM 1690 can be variably adjusted from 10 to 100% using an external 1 to 10 VDC analog signal, or by remote control through a fieldbus interface.
- High efficiency power supply design requires only air cooling to simplify installation & reduce cost
- Low output ripple suitable for most applications
- Advanced filament control for low maintenance and long magnetron life
- Efficient power stage design for low harmonics and inrush current
- "Plug & Play" design - fast & easy installation See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | SM-1690Microwave Power Supply, Switch Mode, 10 kW, 2.45 GHz Magnetron |
Specifications
- TypeSM 1690 Microwave Power Supply
- Power Output14 kW max
- Input Voltage3 x 400V or 3 x 480V
- Line Frequency50/60 Hz
- Efficiency92%
- Output Current1600 mA max
- Alarm ManagementOpening alarm contact, emission of a 4 bit alarm code, the alarm is latched and requires a reset procedure.
- DimensionsWidth, Rack 444 mm (17.5 inches)
Width, Front Panel 482 mm (18.98 inches)
Height, Total 301 mm (7U, 11.85 inches)
Length, Total 465 mm (18.31 inches) - Weight40kg (88 lbs)
- CoolingForced air, approx 200 m3/h
- Ambient Operating Temperature40°C (104° F) max
- ComplianceCE
- Preferred Microwave Magnetron HeadTM100 (others if electrically compatible)
Resources
Manuals
SM 1690 Magnetron Power Supply Manual(1 MB, PDF)
