Butt Weld Reducing Tee Fittings
Overview
- Butt weld reducing tee fittings
- 304 Stainless Steel construction
- 1 to 6 in. tubing with reduced size branch
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
10023100RT050 Reducing Tee Fitting, Buttweld, 1 to 0.5 in. O.D., 304 Stainless Steel |
|
$42 |
|
|||
|
10023100RT075 Reducing Tee Fitting, Buttweld, 1 to 0.75 in. O.D., 304 Stainless Steel |
|
$114 |
|
|||
|
10023150RT050 Reducing Tee Fitting, Buttweld, 1.5 to 0.5 in. O.D., 304 Stainless Steel |
|
$99 |
|
|||
|

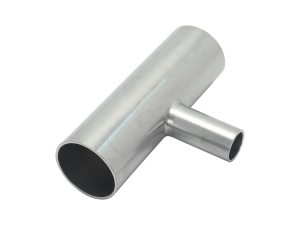

10023150RT075 Reducing Tee Fitting, Buttweld, 1.5 to 0.75 in. O.D., 304 Stainless Steel |
|
$93 |
|
|||
|

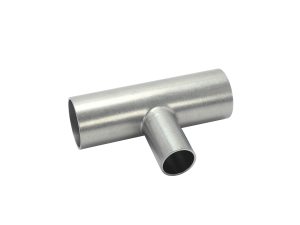

10023150RT100 Reducing Tee Fitting, Buttweld, 1.5 to 1 in. O.D., 304 Stainless Steel |
|
$41 |
|
|||
|
10023200RT050 Reducing Tee Fitting, Buttweld, 2 to 0.5 in. O.D., 304 Stainless Steel | $98 |
|
||||
|
|
10023200RT075 Reducing Tee Fitting, Buttweld, 2 to 0.75 in. O.D., 304 Stainless Steel |
|
$81 |
|
|||
|
10023200RT100 Reducing Tee Fitting, Buttweld, 2 to 1 inch O.D., 304 Stainless Steel |
|
$55 |
|
|||
|

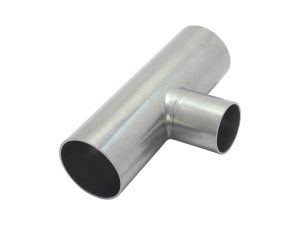

10023200RT150 Reducing Tee Fitting, Buttweld, 2 to 1.5 in. O.D., 304 Stainless Steel |
|
$64 |
|
|||
|

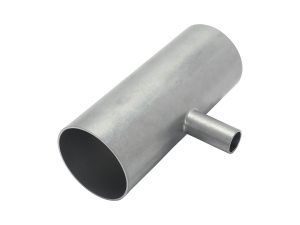

10023250RT075 Reducing Tee Fitting, Buttweld, 2.5 to 0.75 in. O.D., 304 Stainless Steel |
|
$103 |
|
|||
|
10023250RT150 Reducing Tee Fitting, Buttweld, 2.5 to 1.5 in. O.D., 304 Stainless Steel |
|
$82 |
|
|||
|

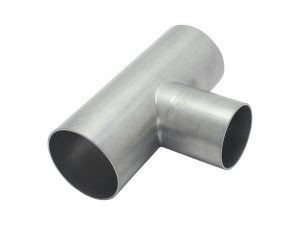

10023250RT200 Reducing Tee Fitting, Buttweld, 2.5 to 2 in. O.D., 304 Stainless Steel |
|
$121 |
|
|||
|
10023300RT075 Reducing Tee Fitting, Buttweld, 3 to 0.75 in. O.D., 304 Stainless Steel | $179 |
|
||||
|
|
10023300RT100 Reducing Tee Fitting, Buttweld, 3 to 1 inch O.D., 304 Stainless Steel |
|
$170 |
|
|||
|
10023300RT150 Reducing Tee Fitting, Buttweld, 3 to 1.5 in. O.D., 304 Stainless Steel |
|
$86 |
|
|||
|
10023300RT200 Reducing Tee Fitting, Buttweld, 3 to 2 inch O.D., 304 Stainless Steel |
|
$82 |
|
|||
|
|
10023300RT250 Reducing Tee Fitting, Buttweld, 3 to 2.5 in. O.D., 304 Stainless Steel | $484 |
|
||||
|
10023400RT075 Reducing Tee Fitting, Buttweld, 4 to 0.75 in. O.D., 304 Stainless Steel | $160 |
|
||||
|
|

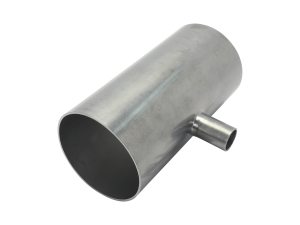

10023400RT100 Reducing Tee Fitting, Buttweld, 4 to 1 inch O.D., 304 Stainless Steel |
|
$173 |
|
|||
|

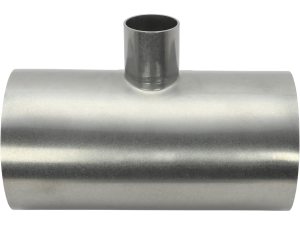

10023400RT150 Reducing Tee Fitting, Buttweld, 4 to 1.5 in. O.D., 304 Stainless Steel |
|
$105 |
|
|||
|

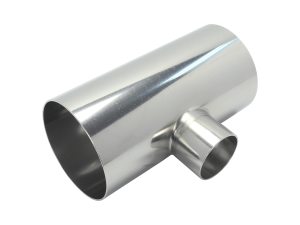

10023400RT200 Reducing Tee Fitting, Buttweld, 4 to 2 inch O.D., 304 Stainless Steel |
|
$122 |
|
|||
|
|
10023600RT075 Reducing Tee Fitting, Buttweld, 6 to 0.75 in. O.D., 304 Stainless Steel | $923 |
|
||||
|
|
10023600RT150 Reducing Tee Fitting, Buttweld, 6 to 1.5 in. O.D., 304 Stainless Steel | $281 |
|
||||
|
10023600RT400 Reducing Tee Fitting, Buttweld, 6 to 4 in. O.D., 304 Stainless Steel |
|
$320 |
|
Specifications
-
Component TypeReducing Tee
-
Fitting TypeButt Weld
-
SeriesSeries 23
-
Material304 Stainless Steel
Reducing Tee Fitting Dimensions
| Model | Tube OD | Wall Thickness | Wall 2 Thickness | Dimension "A" | Dimension "B" | ||
|---|---|---|---|---|---|---|---|
|
|
|
1.0 in. | 0.065 in. | 0.065 in. | 1.88 in. | 1.0 in. | |
|
|
|
1.0 in. | 0.065 in. | 0.065 in. | 1.88 in. | 2.0 in. | |
|
|
|
1.5 in. | 0.065 in. | 0.065 in. | 2.25 in. | 1.25 in. | |
|
|
|
1.5 in. | 0.065 in. | 0.065 in. | 2.25 in. | 2.25 in. | |
|
|
|
1.5 in. | 0.065 in. | 0.065 in. | 2.25 in. | 2.25 in. | |
|
|
|
2.0 in. | 0.065 in. | 0.065 in. | 3.0 in. | 1.5 in. | |
|
|
|
2.0 in. | 0.065 in. | 0.065 in. | 3.0 in. | 2.5 in. | |
|
|
|
2.0 in. | 0.065 in. | 0.065 in. | 3.0 in. | 2.5 in. | |
|
|
|
2.0 in. | 0.065 in. | 0.065 in. | 3.0 in. | 2.5 in. | |
|
|
|
2.5 in. | 0.065 in. | 0.065 in. | 3.0 in. | 2.75 in. | |
|
|
|
2.5 in. | 0.065 in. | 0.065 in. | 3.0 in. | 2.75 in. | |
|
|
|
2.5 in. | 0.065 in. | 0.065 in. | 3.0 in. | 3.25 in. | |
|
|
|
3.0 in. | 0.065 in. | 0.065 in. | 3.25 in. | 3.0 in. | |
|
|
|
3.0 in. | 0.065 in. | 0.065 in. | 3.25 in. | ||
|
|
|
3.0 in. | 0.065 in. | 0.065 in. | 3.25 in. | 3.0 in. | |
|
|
|
3.0 in. | 0.065 in. | 0.065 in. | 3.25 in. | 3.5 in. | |
|
|
|
3.0 in. | 0.065 in. | 0.065 in. | 3.25 in. | 3.25 in. | |
|
|
|
4.0 in. | 0.065 in. | 0.065 in. | 3.88 in. | 3.5 in. | |
|
|
|
4.0 in. | 0.065 in. | 0.065 in. | 3.88 in. | ||
|
|
|
4.0 in. | 0.065 in. | 0.065 in. | 3.88 in. | 3.5 in. | |
|
|
|
4.0 in. | 0.065 in. | 0.065 in. | 3.88 in. | 3.5 in. | |
|
|
|
6.0 in. | 0.083 in. | 0.065 in. | 5.0 in. | 4.5 in. | |
|
|
|
6.0 in. | 0.083 in. | 0.065 in. | 5.0 in. | 4.5 in. | |
|
|
|
6.0 in. | 0.083 in. | 0.083 in. | 5.0 in. | 4.88 in. |
