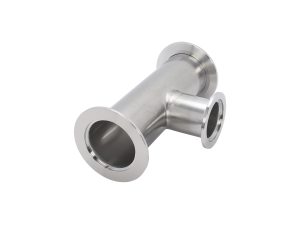

ISO-KF Flange Reducing Tee Fittings

ISO-KF Flange Reducing Tee Fittings

Products
Features
Resources
Contact Us

Overview

These reducing tee fittings have the same size ISO-KF vacuum flange on all two thru ports and a smaller flange on the branch port. Tees are a common component of vacuum piping systems and are used to provide a 90 degree branch.

Reducing tees with smaller branch port
304 Stainless Steel construction
NW25 to NW50 flange thru-ports

See All Features

Products

		Compare	Description	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Flange Size	Flange Size 2	Dimension "A"	Dimension "B"	Dimension "C"	Availability	Featured Item	Price		Brand
		100318403 Reducing Tee Fitting, NW25 ISO-KF Thru Ports, NW16 ISO-KF Branch $97 Show	100318403 Reducing Tee Fitting, NW25 ISO-KF Thru Ports, NW16 ISO-KF Branch	UNIVERSAL	0.0	1.0	0.0		0.0	NW25	NW16	3.94 in.	1.08 in.	1.97 in.	Show		$97
		100318405 Reducing Tee Fitting, NW40 ISO-KF Thru Ports, NW16 ISO-KF Branch $113 Show	100318405 Reducing Tee Fitting, NW40 ISO-KF Thru Ports, NW16 ISO-KF Branch	UNIVERSAL	0.0	1.0	0.0		0.0	NW40	NW16	5.12 in.	1.32 in.	2.56 in.	Show		$113
		100318406 Reducing Tee Fitting, NW50 ISO-KF Thru Ports, NW16 ISO-KF Branch $136 Show	100318406 Reducing Tee Fitting, NW50 ISO-KF Thru Ports, NW16 ISO-KF Branch	UNIVERSAL	0.0	1.0	0.0		0.0	NW50	NW16	5.51 in.	1.58 in.	2.76 in.	Show		$136
		100319814 Reducing Tee Fitting, NW50 ISO-KF Thru Ports, NW40 ISO-KF Branch $170 Show	100319814 Reducing Tee Fitting, NW50 ISO-KF Thru Ports, NW40 ISO-KF Branch	UNIVERSAL	0.0	1.0	0.0		0.0	NW50	NW40	6.29 in.	2.65 in.	3.15 in.	Show		$170
		100319815 Reducing Tee Fitting, NW50 ISO-KF Thru Ports, NW25 ISO-KF Branch $128 Show	100319815 Reducing Tee Fitting, NW50 ISO-KF Thru Ports, NW25 ISO-KF Branch	UNIVERSAL	0.0	1.0	0.0		0.0	NW50	NW25	6.29 in.	2.65 in.	3.15 in.	Show		$128
		100319816 Reducing Tee Fitting, NW40 ISO-KF Thru Ports, NW25 ISO-KF Branch $138 Show	100319816 Reducing Tee Fitting, NW40 ISO-KF Thru Ports, NW25 ISO-KF Branch	UNIVERSAL	0.0	1.0	0.0		0.0	NW40	NW25	4.80 in.	2.40 in.	2.40 in.	Show		$138

Show All

Notes:

Please see tee schematic for dimension callouts.

Specifications

Component Type

Reducing Tee
Series

Series 31

Material

304 Stainless Steel
Flange Type

ISO-KF

Features

Resources

Literature

Series 31 ISO-KF Vacuum Components & Fittings (1.1 MB, PDF)
