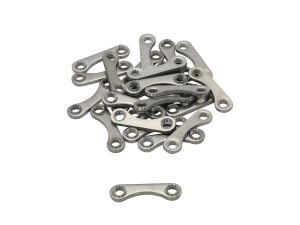

CF Ultra High Vacuum Flange Plate Nut Sets
Overview
- Fast and convenient for joining thru-hole flanges
- Assemble with a single wrench
- Sold in packs of 24
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
100889071 Plate Nut Set, 8-32, 1.33 inch CF Flange, Quantity 24 |
|
$152 |
|
|||
|
100889072 Plate Nut Set, 1/4-28, 2.75 inch CF Flange, Quantity 24 |
|
$152 |
|
|||
|
100889073 Plate Nut Set, 5/16-24, 3.375 inch CF Flange, Quantity 24 | $88 |
|
||||
|
100889074 Plate Nut Set, 5/16-24, 4.5 inch CF Flange, Quantity 24 | $88 |
|
Specifications
| Models |
|
|
|
|
|
|---|---|---|---|---|---|
| Series | Series 88 | Series 88 | Series 88 | Series 88 | |
| Component Type | Plate Nut Set | Plate Nut Set | Plate Nut Set | Plate Nut Set | |
| Quantity | 24 | 24 | 24 | 24 | |
| Flange Type | CF | CF | CF | CF | |
| Flange Size | 1.33 in. | 2.75 in. | 3.375 in. | 4.5 in. | |
| Thread | 8-32 | 1/4-28 | 5/16-24 | 5/16-24 | |
| Material | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | |

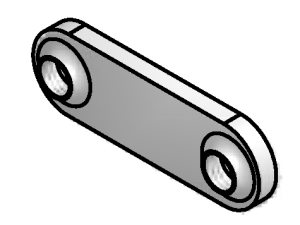

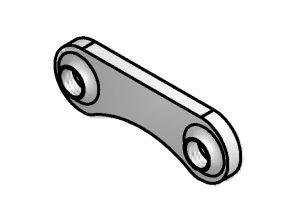

| Dimension "A" | 0.80 in. | 1.41 in. | 1.75 in. | 2.03 in. | |
| Dimension "B" | 0.30 in. | 0.50 in. | 0.50 in. | 0.50 in. | |
| Dimension "C" | 0.53 in. | 1.16 in. | 1.09 in. | 1.39 in. | |
| Dimension "D" | 0.15 in. | 0.18 in. | 0.22 in. | 0.22 in. |
