CF Ultra High Vacuum Flange Fasteners

A variety of fastening hardware is available, such as plate nuts, dodecagon (12 point head) bolts, and bolt and nut sets for joining tapped and thru-hole CF flanges. Plate nuts furnish the fastest, most convenient method to close CF flanges.

CF Ultra High Vacuum Flange Fasteners

A variety of fastening hardware is available, such as plate nuts, dodecagon (12 point head) bolts, and bolt and nut sets for joining tapped and thru-hole CF flanges. Plate nuts furnish the fastest, most convenient method to close CF flanges.

Showing 42 products in 7 families

Show Filters:

Showing 42 products in 7 families

View:

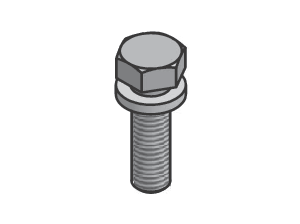

CF Flange Bolt Sets

Join thru hole CF flanges to tapped hole CF flanges
1 1/3 inch to 4 5/8 inch CF flange size
Sold in packs of 25

Show Top Products

	Compare	Description		Avail.	Price	Qty.
		100889031 Tapped Flange Bolt Set, 1.33 inch CF, 8-32 x 0.75 in., Quantity 25		Show	$23.37		100889031 Tapped Flange Bolt Set, 1.33 inch CF, 8-32 x 0.75 in., Quantity 25 Show $23.37
		100889035 Tapped Flange Bolt Set, 3.375 to 4.625 in. CF, 5/16-24 x 1.25 in., Qty 25		Show	$75		100889035 Tapped Flange Bolt Set, 3.375 to 4.625 in. CF, 5/16-24 x 1.25 in., Qty 25 Show $75
		100889032 Tapped Flange Bolt Set, 1.33 inch CF, 8-32 x 0.50 in., Quantity 25		Show	$23.37		100889032 Tapped Flange Bolt Set, 1.33 inch CF, 8-32 x 0.50 in., Quantity 25 Show $23.37
		100889033 Tapped Flange Bolt Set, 2.125 or 2.75 in. CF, 1/4-28 x 1.0 in., Qty 25		Show	$19.96		100889033 Tapped Flange Bolt Set, 2.125 or 2.75 in. CF, 1/4-28 x 1.0 in., Qty 25 Show $19.96
		100889030 Tapped Flange Bolt Set, 1.33 inch CF, 8-32 x 0.62 in., Quantity 25		Show	$23.37		100889030 Tapped Flange Bolt Set, 1.33 inch CF, 8-32 x 0.62 in., Quantity 25 Show $23.37

Viewing5 of 6 Products | View All 6 Products

CF Flange Bolt Sets

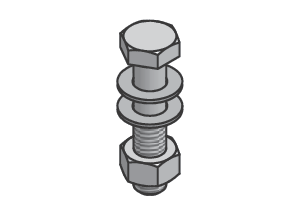

CF Flange Bolt and Nut Sets

Bolt sets for thru hole CF flanges
1 1/3 inch to 4 5/8 inch CF flange size
Sold in packs of 25

Show Top Products

	Compare	Description		Avail.	Price	Qty.
		100889047 Flange Bolt and Nut Set, Thru Hole, 1.33 inch CF, 8-32 x 0.75 in., Qty 25		Show	$47		100889047 Flange Bolt and Nut Set, Thru Hole, 1.33 inch CF, 8-32 x 0.75 in., Qty 25 Show $47
		100889053 Flange Bolt and Nut Set, Thru Hole, 4.5 inch CF, 5/16-24 x 2.0 in., Qty 25		Show	$44		100889053 Flange Bolt and Nut Set, Thru Hole, 4.5 inch CF, 5/16-24 x 2.0 in., Qty 25 Show $44
		100889049 Flange Bolt and Nut Set, Thru Hole, 2.125 or 2.75 in. CF, 1/4-28 x 1.25 in., Qty 25		Show	$21.28		100889049 Flange Bolt and Nut Set, Thru Hole, 2.125 or 2.75 in. CF, 1/4-28 x 1.25 in., Qty 25 Show $21.28
		100889150 Flange Bolt and Nut Set, Thru Hole, 2.125 or 2.75 in. CF, 1/4-28 x 1.38 in., Qty 25		Show	$56		100889150 Flange Bolt and Nut Set, Thru Hole, 2.125 or 2.75 in. CF, 1/4-28 x 1.38 in., Qty 25 Show $56
		100889147 Flange Bolt and Nut Set, Thru Hole, 1.33 inch CF, 8-32 x 0.87 in., Qty 25		Show	$53		100889147 Flange Bolt and Nut Set, Thru Hole, 1.33 inch CF, 8-32 x 0.87 in., Qty 25 Show $53

Viewing5 of 9 Products | View All 9 Products

CF Flange Bolt and Nut Sets

CF Flange Dodecagon Bolt and Nut Sets

Fast and convenient for joining thru-hole flanges
12 point head bolts reduce risk of bolt seizure / breakage
Includes 25 dodecagon bolts, 25 nuts, and 25 washers

Show Top Products

	Compare	Description		Avail.	Price	Qty.
		100889042 Dodecagon Bolt and Nut Set, 1/4-28 x 1.0 in., 2.125 or 2.75 in. CF Flanges		Show	$416		100889042 Dodecagon Bolt and Nut Set, 1/4-28 x 1.0 in., 2.125 or 2.75 in. CF Flanges Show $416
		100889044 Dodecagon Bolt and Nut Set, Silver Plated, 5/16-24 x 1.25 in., Qty 25		Show	$159		100889044 Dodecagon Bolt and Nut Set, Silver Plated, 5/16-24 x 1.25 in., Qty 25 Show $159
		100889068 Dodecagon Bolt and Nut Set, 5/16-24 x 2.25 in., 4.625 in. CF Flange, Qty 25		Show	$99		100889068 Dodecagon Bolt and Nut Set, 5/16-24 x 2.25 in., 4.625 in. CF Flange, Qty 25 Show $99
		100889066 Dodecagon Bolt and Nut Set, 5/16-24 x 2.0 in., 4.5 in. CF Flanges, Qty 25		Show	$71		100889066 Dodecagon Bolt and Nut Set, 5/16-24 x 2.0 in., 4.5 in. CF Flanges, Qty 25 Show $71
		100889062 Dodecagon Bolt and Nut Set, 1/4-28 x 1.25 in., 2.125 or 2.75 in. CF Flanges		Show	$127		100889062 Dodecagon Bolt and Nut Set, 1/4-28 x 1.25 in., 2.125 or 2.75 in. CF Flanges Show $127

Viewing5 of 7 Products | View All 7 Products

CF Flange Dodecagon Bolt and Nut Sets

CF Flange Double-Sided Bolt and Nut Sets

Double-sided bolt sets for tapped hole CF flanges
1 1/3 inch to 4 5/8 inch CF flange size
Sold in packs of 25

Show Top Products

	Compare	Description		Avail.	Price	Qty.
		100889127 Double-Sided Bolt and Nut Set, 4.5 inch CF, 5/16-24 x 2.75 in., Qty 25		Show	$59		100889127 Double-Sided Bolt and Nut Set, 4.5 inch CF, 5/16-24 x 2.75 in., Qty 25 Show $59
		100889153 Double-Sided Bolt and Nut Set, 2.75 inch CF, 1/4-28 x 2.5 in., Qty 25		Show	$49		100889153 Double-Sided Bolt and Nut Set, 2.75 inch CF, 1/4-28 x 2.5 in., Qty 25 Show $49
		100889124 Double-Sided Bolt Set, Silver Plated, 1.33 in. CF, 8-32 x 1.25 in., Qty 25		Show	$93		100889124 Double-Sided Bolt Set, Silver Plated, 1.33 in. CF, 8-32 x 1.25 in., Qty 25 Show $93
		100889130 Double-Sided Bolt and Nut Set, 3.375 inch CF, 5/16-24 x 2.5 in., Qty 25		Show	$50		100889130 Double-Sided Bolt and Nut Set, 3.375 inch CF, 5/16-24 x 2.5 in., Qty 25 Show $50
		100889123 Double-Sided Bolt and Nut Set, 1.33 in. CF Flange, 8-32 x 1.25 in., Qty 25		Show	$49		100889123 Double-Sided Bolt and Nut Set, 1.33 in. CF Flange, 8-32 x 1.25 in., Qty 25 Show $49

Viewing5 of 8 Products | View All 8 Products

CF Flange Double-Sided Bolt and Nut Sets

CF Flange Plate Nut Sets

Fast and convenient for joining thru-hole flanges
Assemble with a single wrench
Sold in packs of 24

Show Top Products

	Compare	Description		Avail.	Price	Qty.
		100889071 Plate Nut Set, 8-32, 1.33 inch CF Flange, Quantity 24		Show	$152		100889071 Plate Nut Set, 8-32, 1.33 inch CF Flange, Quantity 24 Show $152
		100889074 Plate Nut Set, 5/16-24, 4.5 inch CF Flange, Quantity 24		Show	$88		100889074 Plate Nut Set, 5/16-24, 4.5 inch CF Flange, Quantity 24 Show $88
		100889072 Plate Nut Set, 1/4-28, 2.75 inch CF Flange, Quantity 24		Show	$152		100889072 Plate Nut Set, 1/4-28, 2.75 inch CF Flange, Quantity 24 Show $152
		100889073 Plate Nut Set, 5/16-24, 3.375 inch CF Flange, Quantity 24		Show	$88		100889073 Plate Nut Set, 5/16-24, 3.375 inch CF Flange, Quantity 24 Show $88

Viewing4 of 4 Products | View All 4 Products

CF Flange Plate Nut Sets

CF Flange Plate Nut and Bolt Sets

Fast and convenient for joining thru-hole flanges
Includes two bolts and washers per plate nut
12 or 16 plate nuts per pack

Show Top Products

	Compare	Description		Avail.	Price	Qty.
		100889079 Plate Nut and Bolt Set, 1/4-28, 2.75 inch CF Flange, Quantity 12		Show	$106		100889079 Plate Nut and Bolt Set, 1/4-28, 2.75 inch CF Flange, Quantity 12 Show $106
		100889083 Plate Nut and Bolt Set, 5/16-24, 4.5 inch CF Flange, Quantity 16		Show	$101		100889083 Plate Nut and Bolt Set, 5/16-24, 4.5 inch CF Flange, Quantity 16 Show $101
		100889081 Plate Nut and Bolt Set, 5/16-24, 3.375 inch CF Flange, Quantity 16		Show	$95		100889081 Plate Nut and Bolt Set, 5/16-24, 3.375 inch CF Flange, Quantity 16 Show $95
		100889077 Plate Nut and Bolt Set, 8-32, 1.33 inch CF Flange, Quantity 12		Show	$103		100889077 Plate Nut and Bolt Set, 8-32, 1.33 inch CF Flange, Quantity 12 Show $103

Viewing4 of 4 Products | View All 4 Products

CF Flange Plate Nut and Bolt Sets

CF Flange Plate Nut and Dodecagon Bolt Sets

Fast and convenient for joining thru-hole flanges
Includes two dodecagon bolts and washers per plate nut
12 or 16 plate nuts per pack

Show Top Products

	Compare	Description		Avail.	Price	Qty.
		100889090 Plate Nut and Dodecagon Bolt Set, 8-32 x 0.75 in., 1.33 in. CF Flange		Show	$169		100889090 Plate Nut and Dodecagon Bolt Set, 8-32 x 0.75 in., 1.33 in. CF Flange Show $169
		100889096 Plate Nut and Dodecagon Bolt Set, 5/16-24 x 2.0 in., 4.5 in. CF Flange		Show	$136		100889096 Plate Nut and Dodecagon Bolt Set, 5/16-24 x 2.0 in., 4.5 in. CF Flange Show $136
		100889092 Plate Nut and Dodecagon Bolt Set, 1/4-28 x 1.25 in., 2.75 in. CF Flange		Show	$192		100889092 Plate Nut and Dodecagon Bolt Set, 1/4-28 x 1.25 in., 2.75 in. CF Flange Show $192
		100889094 Plate Nut and Dodecagon Bolt Set, 5/16-24 x 1.75 in., 3.375 in. CF Flange		Show	$122		100889094 Plate Nut and Dodecagon Bolt Set, 5/16-24 x 1.75 in., 3.375 in. CF Flange Show $122

Viewing4 of 4 Products | View All 4 Products

CF Flange Plate Nut and Dodecagon Bolt Sets
