CF UHV Flange Thin Wall Metal Vacuum Hose

CF UHV Flange Thin Wall Metal Vacuum Hose

Products
Features
Resources
Contact Us

Overview

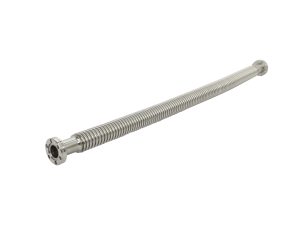

Thin wall metal vacuum hose is made with 0.152 mm thick 321 Stainless Steel for flexibility and can be compressed. They have a rotatable CF flange on one end and a non-rotatable flange on the other end.

Flexible Stainless Steel with thin hose wall
One rotatable and one non-rotatable flange
321 Stainless Steel construction

See All Features

Products

		Compare	Description	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Flange Size	Free Length	Compressed Length	Static Bend Radius	Spring Rate	Availability	Featured Item	Price		Brand
		100881032 Metal Wall Vacuum Hose, 1.33 in. CF Flange, 7.8-11.3 in., 0.006 in. Wall $420 Show	100881032 Metal Wall Vacuum Hose, 1.33 in. CF Flange, 7.8-11.3 in., 0.006 in. Wall	UNIVERSAL	0.0	1.0	0.0		0.0	1.33 in.	11.3 in. (287 mm)	7.8 in. (198 mm)	1.63 in. (41 mm)	27 lb/in.	Show		$420
		100881033 Metal Wall Vacuum Hose, 1.33 in. CF Flange, 13.8-12.2 in., 0.006 in. Wall $293 Show	100881033 Metal Wall Vacuum Hose, 1.33 in. CF Flange, 13.8-12.2 in., 0.006 in. Wall	UNIVERSAL	0.0	1.0	0.0		0.0	1.33 in.	21.2 in. (539 mm)	13.8 in. (351 mm)	1.63 in. (41 mm)	12 lb/in.	Show		$293
		100881034 Metal Wall Vacuum Hose, 1.33 in. CF Flange, 25.6-40.9 in., 0.006 in. Wall $474 Show	100881034 Metal Wall Vacuum Hose, 1.33 in. CF Flange, 25.6-40.9 in., 0.006 in. Wall	UNIVERSAL	0.0	1.0	0.0		0.0	1.33 in.	40.9 in. (1039 mm)	25.6 in. (650 mm)	1.63 in. (41 mm)	9 lb/in.	Show		$474
		100882020 Metal Wall Vacuum Hose, 2.125 in. CF Flange, 7.8-11.3 in., 0.006 in. Wall $249 Show	100882020 Metal Wall Vacuum Hose, 2.125 in. CF Flange, 7.8-11.3 in., 0.006 in. Wall	UNIVERSAL	0.0	1.0	0.0		0.0	2.125 in.	11.3 in. (287 mm)	7.8 in. (198 mm)	1.38 in. (35 mm)	16 lb/in.	Show		$249
		100882021 Metal Wall Vacuum Hose, 2.125 in. CF Flange, 14.7-22.1 in., 0.006 in. Wall $365 Show	100882021 Metal Wall Vacuum Hose, 2.125 in. CF Flange, 14.7-22.1 in., 0.006 in. Wall	UNIVERSAL	0.0	1.0	0.0		0.0	2.125 in.	22.1 in. (561 mm)	14.7 in. (373 mm)	1.38 in. (35 mm)	7 lb/in.	Show		$365
		100882022 Metal Wall Vacuum Hose, 2.125 in. CF Flange, 26.5-41.8 in., 0.006 in. Wall $486 Show	100882022 Metal Wall Vacuum Hose, 2.125 in. CF Flange, 26.5-41.8 in., 0.006 in. Wall	UNIVERSAL	0.0	1.0	0.0		0.0	2.125 in.	41.8 in. (1062 mm)	26.5 in. (673 mm)	1.38 in. (35 mm)	3 lb/in.	Show		$486
		100883032 Metal Wall Vacuum Hose, 2.75 in. CF Flange, 8.7-12.3 in., 0.006 in. Wall $229 Show	100883032 Metal Wall Vacuum Hose, 2.75 in. CF Flange, 8.7-12.3 in., 0.006 in. Wall	UNIVERSAL	0.0	1.0	0.0		0.0	2.75 in.	12.3 in. (312 mm)	8.7 in. (221 mm)	2.50 in. (64 mm)	9 lb/in.	Show		$229
		100883033 Metal Wall Vacuum Hose, 2.75 in. CF Flange, 14.1-22.1 in., 0.006 in. Wall $255 Show	100883033 Metal Wall Vacuum Hose, 2.75 in. CF Flange, 14.1-22.1 in., 0.006 in. Wall	UNIVERSAL	0.0	1.0	0.0		0.0	2.75 in.	22.1 in. (561 mm)	14.1 in. (358 mm)	2.50 in. (64 mm)	4 lb/in.	Show		$255
		100883034 Metal Wall Vacuum Hose, 2.75 in. CF Flange, 25.0-41.9 in., 0.006 in. Wall $360 Show	100883034 Metal Wall Vacuum Hose, 2.75 in. CF Flange, 25.0-41.9 in., 0.006 in. Wall	UNIVERSAL	0.0	1.0	0.0		0.0	2.75 in.	41.9 in. (1064 mm)	25.0 in. (635 mm)	2.50 in. (64 mm)	2 lb/in.	Show		$360
		100884016 Metal Wall Vacuum Hose, 3.375 in. CF Flange, 10.5-13.3 in., 0.006 in. Wall $470 Show	100884016 Metal Wall Vacuum Hose, 3.375 in. CF Flange, 10.5-13.3 in., 0.006 in. Wall	UNIVERSAL	0.0	1.0	0.0		0.0	3.375 in.	13.3 in. (338 mm)	10.5 in. (267 mm)	3.25 in. (83 mm)	13 lb/in.	Show		$470
		100884017 Metal Wall Vacuum Hose, 3.375 in. CF Flange, 17.0-23.2 in., 0.006 in. Wall $570 Show	100884017 Metal Wall Vacuum Hose, 3.375 in. CF Flange, 17.0-23.2 in., 0.006 in. Wall	UNIVERSAL	0.0	1.0	0.0		0.0	3.375 in.	23.2 in. (589 mm)	17.0 in. (432 mm)	3.25 in. (83 mm)	6 lb/in.	Show		$570
		100884018 Metal Wall Vacuum Hose, 3.375 in. CF Flange, 29.8-42.9 in., 0.006 in. Wall $675 Show	100884018 Metal Wall Vacuum Hose, 3.375 in. CF Flange, 29.8-42.9 in., 0.006 in. Wall	UNIVERSAL	0.0	1.0	0.0		0.0	3.375 in.	42.9 in. (1090 mm)	29.8 in. (757 mm)	3.25 in. (83 mm)	3 lb/in.	Show		$675
		100885020 Metal Wall Vacuum Hose, 4.5 in. CF Flange, 9.1-13.8 in., 0.006 in. Wall $690 Show	100885020 Metal Wall Vacuum Hose, 4.5 in. CF Flange, 9.1-13.8 in., 0.006 in. Wall	UNIVERSAL	0.0	1.0	0.0		0.0	4.5 in.	13.8 in. (351 mm)	9.1 in. (231 mm)	6.75 in. (172 mm)	15 lb/in.	Show		$690
		100885021 Metal Wall Vacuum Hose, 4.5 in. CF Flange, 16.2-23.7 in., 0.006 in. Wall $723 Show	100885021 Metal Wall Vacuum Hose, 4.5 in. CF Flange, 16.2-23.7 in., 0.006 in. Wall	UNIVERSAL	0.0	1.0	0.0		0.0	4.5 in.	23.7 in. (602 mm)	16.2 in. (412 mm)	6.75 in. (172 mm)	7 lb/in.	Show		$723
		100885022 Metal Wall Vacuum Hose, 4.5 in. CF Flange, 30.3-43.4 in., 0.006 in. Wall $1,245 Show	100885022 Metal Wall Vacuum Hose, 4.5 in. CF Flange, 30.3-43.4 in., 0.006 in. Wall	UNIVERSAL	0.0	1.0	0.0		0.0	4.5 in.	43.4 in. (1102 mm)	30.3 in. (770 mm)	6.75 in. (172 mm)	3 lb/in.	Show		$1,245

Show All

Specifications

Component Type

Thin Wall Metal Hose
Series

Series 88
Flange Type

CF Ultra High Vacuum
Rotatable Flanges

One

Nonrotatable Flanges

One
Bolt Holes

Thru Holes
Material

321 Stainless Steel
Wall Thickness

0.006 in. (0.152 mm)

Features

Resources

Literature

Series 88 CF UHV Components & Fittings (399.8 kB, PDF)
