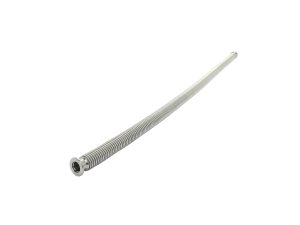

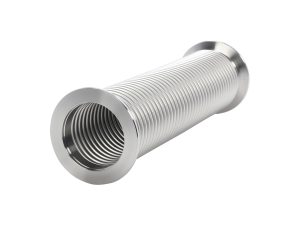

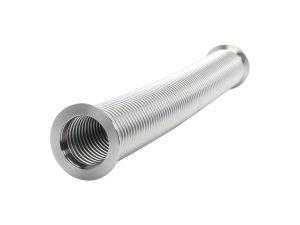

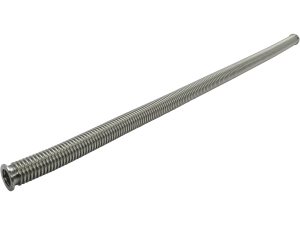

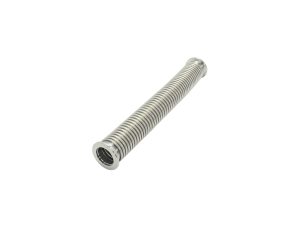

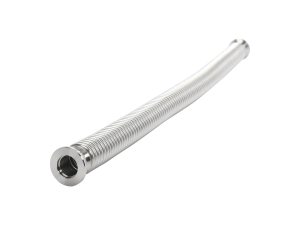

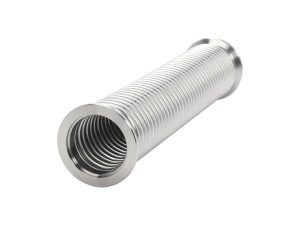

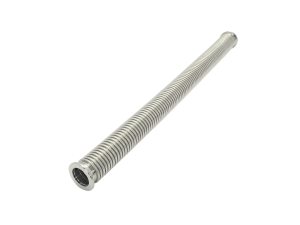

ISO-KF Thin Wall Metal Vacuum Hose

Products
Features
Resources
Contact Us

Overview

Thin wall stainless steel vacuum hose has a 0.15 mm hose wall allowing it to be compressed. Thin wall hose is offered in 250 to 1000 mm unsheathed lengths with NW16 to NW 50 size ISO-KF flanges on each end.

Stainless Steel with 0.15 mm hose wall
250 to 1000 mm lengths
NW16 to NW50 size flanges on both ends

See All Features

Products

Compare	Description	Compatibility	rankScore	Flange Size	Free Length	Compressed Length	Static Bend Radius	Spring Rate	Availability	Price
100317411 Metal Wall Vacuum Hose, NW16 ISO-KF, 250 mm Length, 0.15 mm Hose Wall $124 Show	100317411 Metal Wall Vacuum Hose, NW16 ISO-KF, 250 mm Length, 0.15 mm Hose Wall	UNIVERSAL	1.0	NW16	9.84 in. (250 mm)	6.41 in. (163 mm)	1.625 in.	27 lb/in.	Show	$124
100317413 Metal Wall Vacuum Hose, NW25 ISO-KF, 250 mm Length, 0.15 mm Hose Wall $140 Show	100317413 Metal Wall Vacuum Hose, NW25 ISO-KF, 250 mm Length, 0.15 mm Hose Wall	UNIVERSAL	1.0	NW25	9.84 in. (250 mm)	6.41 in. (163 mm)	1.375 in.	16 lb/in.	Show	$140
100317415 Metal Wall Vacuum Hose, NW40 ISO-KF, 250 mm Length, 0.15 mm Hose Wall $158 Show	100317415 Metal Wall Vacuum Hose, NW40 ISO-KF, 250 mm Length, 0.15 mm Hose Wall	UNIVERSAL	1.0	NW40	9.84 in. (250 mm)	6.23 in. (158 mm)	2.5 in.	8.6 lb/in.	Show	$158
100317416 Metal Wall Vacuum Hose, NW50 ISO-KF, 250 mm Length, 0.15 mm Hose Wall $196 Show	100317416 Metal Wall Vacuum Hose, NW50 ISO-KF, 250 mm Length, 0.15 mm Hose Wall	UNIVERSAL	1.0	NW50	9.84 in. (250 mm)	7.05 in. (179 mm)	3.25 in.	13 lb/in.	Show	$196
100317421 Metal Wall Vacuum Hose, NW16 ISO-KF, 500 mm Length, 0.15 mm Hose Wall $186 Show	100317421 Metal Wall Vacuum Hose, NW16 ISO-KF, 500 mm Length, 0.15 mm Hose Wall	UNIVERSAL	1.0	NW16	19.69 in. (500 mm)	12.30 in. (313 mm)	1.625 in.	12 lb/in.	Show	$186
100317423 Metal Wall Vacuum Hose, NW25 ISO-KF, 500 mm Length, 0.15 mm Hose Wall $219 Show	100317423 Metal Wall Vacuum Hose, NW25 ISO-KF, 500 mm Length, 0.15 mm Hose Wall	UNIVERSAL	1.0	NW25	19.69 in. (500 mm)	12.30 in. (313 mm)	1.375 in.	7.3 lb/in.	Show	$219
100317425 Metal Wall Vacuum Hose, NW40 ISO-KF, 500 mm Length, 0.15 mm Hose Wall $233 Show	100317425 Metal Wall Vacuum Hose, NW40 ISO-KF, 500 mm Length, 0.15 mm Hose Wall	UNIVERSAL	1.0	NW40	19.69 in. (500 mm)	11.70 in. (297 mm)	2.5 in.	3.9 lb/in.	Show	$233
100317426 Metal Wall Vacuum Hose, NW50 ISO-KF, 500 mm Length, 0.15 mm Hose Wall $271 Show	100317426 Metal Wall Vacuum Hose, NW50 ISO-KF, 500 mm Length, 0.15 mm Hose Wall	UNIVERSAL	1.0	NW50	19.69 in. (500 mm)	13.50 in. (342 mm)	3.25 in.	5.9 lb/in.	Show	$271
100317441 Metal Wall Vacuum Hose, NW16 ISO-KF, 1000 mm Length, 0.15 mm Hose Wall $315 Show	100317441 Metal Wall Vacuum Hose, NW16 ISO-KF, 1000 mm Length, 0.15 mm Hose Wall	UNIVERSAL	1.0	NW16	39.40 in. (1000 mm)	24.10 in. (613 mm)	1.625 in.	5.8 lb/in.	Show	$315
100317443 Metal Wall Vacuum Hose, NW25 ISO-KF, 1000 mm Length, 0.15 mm Hose Wall $360 Show	100317443 Metal Wall Vacuum Hose, NW25 ISO-KF, 1000 mm Length, 0.15 mm Hose Wall	UNIVERSAL	1.0	NW25	39.40 in. (1000 mm)	24.10 in. (613 mm)	1.375 in.	3.4 lb/in.	Show	$360
100317445 Metal Wall Vacuum Hose, NW40 ISO-KF, 1000 mm Length, 0.15 mm Hose Wall $370 Show	100317445 Metal Wall Vacuum Hose, NW40 ISO-KF, 1000 mm Length, 0.15 mm Hose Wall	UNIVERSAL	1.0	NW40	39.40 in. (1000 mm)	22.50 in. (571 mm)	2.5 in.	1.9 lb/in.	Show	$370
100317446 Metal Wall Vacuum Hose, NW50 ISO-KF, 1000 mm Length, 0.15 mm Hose Wall $536 Show	100317446 Metal Wall Vacuum Hose, NW50 ISO-KF, 1000 mm Length, 0.15 mm Hose Wall	UNIVERSAL	1.0	NW50	39.40 in. (1000 mm)	26.30 in. (667 mm)	3.25 in.	2.9 lb/in.	Show	$536
100319805 Metal Wall Vacuum Hose, NW16 ISO-KF, 305 mm Length, 0.15 mm Hose Wall $179 Show	100319805 Metal Wall Vacuum Hose, NW16 ISO-KF, 305 mm Length, 0.15 mm Hose Wall	UNIVERSAL	1.0	NW16	12.02 in. (305 mm)	7.82 in. (199 mm)	1.625 in.	21 lb/in.	Show	$179
100319806 Metal Wall Vacuum Hose, NW25 ISO-KF, 305 mm Length, 0.15 mm Hose Wall $185 Show	100319806 Metal Wall Vacuum Hose, NW25 ISO-KF, 305 mm Length, 0.15 mm Hose Wall	UNIVERSAL	1.0	NW25	11.99 in. (305 mm)	7.82 in. (199 mm)	1.375 in.	14 lb/in.	Show	$185
100319807 Metal Wall Vacuum Hose, NW40 ISO-KF, 308 mm Length, 0.15 mm Hose Wall $208 Show	100319807 Metal Wall Vacuum Hose, NW40 ISO-KF, 308 mm Length, 0.15 mm Hose Wall	UNIVERSAL	1.0	NW40	12.12 in. (308 mm)	7.88 in. (200 mm)	2.5 in.	7 lb/in.	Show	$208
100319808 Metal Wall Vacuum Hose, NW16 ISO-KF, 612 mm Length, 0.15 mm Hose Wall $263 Show	100319808 Metal Wall Vacuum Hose, NW16 ISO-KF, 612 mm Length, 0.15 mm Hose Wall	UNIVERSAL	1.0	NW16	24.09 in. (612 mm)	18.12 in. (460 mm)	1.625 in.	9 lb/in.	Show	$263
100319809 Metal Wall Vacuum Hose, NW25 ISO-KF, 610 mm Length, 0.15 mm Hose Wall $221 Show	100319809 Metal Wall Vacuum Hose, NW25 ISO-KF, 610 mm Length, 0.15 mm Hose Wall	UNIVERSAL	1.0	NW25	24.00 in. (610 mm)	18.12 in. (460 mm)	1.375 in.	6.5 lb/in.	Show	$221
100319810 Metal Wall Vacuum Hose, NW40 ISO-KF, 611 mm Length, 0.15 mm Hose Wall $276 Show	100319810 Metal Wall Vacuum Hose, NW40 ISO-KF, 611 mm Length, 0.15 mm Hose Wall	UNIVERSAL	1.0	NW40	24.05 in. (611 mm)	18.12 in. (460 mm)	2.5 in.	3 lb/in.	Show	$276
100319811 Metal Wall Vacuum Hose, NW50 ISO-KF, 612 mm Length, 0.15 mm Hose Wall $282 Show	100319811 Metal Wall Vacuum Hose, NW50 ISO-KF, 612 mm Length, 0.15 mm Hose Wall	UNIVERSAL	1.0	NW50	24.08 in. (612 mm)	18.12 in. (460 mm)	3.25 in	5 lb/in.	Show	$282
100319817 Metal Wall Vacuum Hose, NW50 ISO-KF, 303 mm Length, 0.15 mm Hose Wall $237 Show	100319817 Metal Wall Vacuum Hose, NW50 ISO-KF, 303 mm Length, 0.15 mm Hose Wall	UNIVERSAL	1.0	NW50	11.93 in. (303 mm)	8.64 in. (219 mm)	3.25 in.	12 lb/in.	Show	$237
