CF UHV Flange to Female VCR Adapters

CF UHV Flange to Female VCR Adapters

Products
Features
Resources
Contact Us

Overview

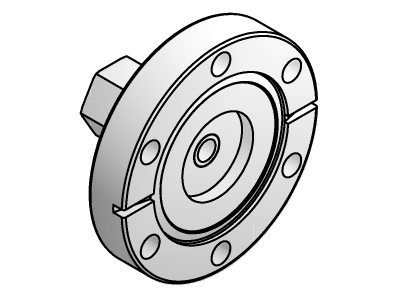

VCR® female adapters are used to connect CF ultrahigh vacuum flanges to VCR vacuum fittings.

Adapt to VCR® compatible components
Fits 1 1/3, 2 1/8, 2 3/4, or 3 3/8 in. flanges
CF flange with bolt thru-holes

See All Features

Products

		Compare	Description	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Flange Size	VCR Fitting Size	Length	Inner Diameter	Availability	Featured Item	Price		Brand
		100881049 CF Flange Adapter, 1.33 in. Flange to 0.25 inch Female VCR Fitting $100 Show	100881049 CF Flange Adapter, 1.33 in. Flange to 0.25 inch Female VCR Fitting	UNIVERSAL	0.0	1.0	0.0		0.0	1.33 in.	4 VCR Female	1.43 in. (36 mm)	0.19 in. (5 mm)	Show		$100
		100882032 CF Flange Adapter, 2.125 in. Flange to 0.25 inch Female VCR Fitting $242 Show	100882032 CF Flange Adapter, 2.125 in. Flange to 0.25 inch Female VCR Fitting	UNIVERSAL	0.0	1.0	0.0		0.0	2.125 in.	4 VCR Female	1.50 in. (38 mm)	0.19 in. (5 mm)	Show		$242
		100882033 CF Flange Adapter, 2.125 in. Flange to 0.50 inch Female VCR Fitting $359 Show	100882033 CF Flange Adapter, 2.125 in. Flange to 0.50 inch Female VCR Fitting	UNIVERSAL	0.0	1.0	0.0		0.0	2.125 in.	8 VCR Female	1.69 in. (43 mm)	0.41 in. (10 mm)	Show		$359
		100882036 CF Flange Adapter, 2.125 in. Flange to 0.75 inch Female VCR Fitting $619 Show	100882036 CF Flange Adapter, 2.125 in. Flange to 0.75 inch Female VCR Fitting	UNIVERSAL	0.0	1.0	0.0		0.0	2.125 in.	12 VCR Female	2.19 in. (56 mm)	0.62 in. (16 mm)	Show		$619
		100883054 CF Flange Adapter, 2.75 in. Flange to 0.25 inch Female VCR Fitting $185 Show	100883054 CF Flange Adapter, 2.75 in. Flange to 0.25 inch Female VCR Fitting	UNIVERSAL	0.0	1.0	0.0		0.0	2.75 in.	4 VCR Female	1.50 in. (38 mm)	0.19 in. (5 mm)	Show		$185
		100883057 CF Flange Adapter, 2.75 in. Flange to 0.50 inch Female VCR Fitting $203 Show	100883057 CF Flange Adapter, 2.75 in. Flange to 0.50 inch Female VCR Fitting	UNIVERSAL	0.0	1.0	0.0		0.0	2.75 in.	8 VCR Female	1.69 in. (43 mm)	0.41 in. (10 mm)	Show		$203
		100883058 CF Flange Adapter, 2.75 in. Flange to 0.75 inch Female VCR Fitting $326 Show	100883058 CF Flange Adapter, 2.75 in. Flange to 0.75 inch Female VCR Fitting	UNIVERSAL	0.0	1.0	0.0		0.0	2.75 in.	12 VCR Female	2.19 in. (56 mm)	0.62 in. (16 mm)	Show		$326
		100884033 CF Flange Adapter, 3.375 in. Flange to 0.25 inch Female VCR Fitting $526 Show	100884033 CF Flange Adapter, 3.375 in. Flange to 0.25 inch Female VCR Fitting	UNIVERSAL	0.0	1.0	0.0		0.0	3.375 in.	4 VCR Female	1.80 in. (46 mm)	0.19 in. (5 mm)	Show		$526
		100884035 CF Flange Adapter, 3.375 in. Flange to 0.50 inch Female VCR Fitting $222 Show	100884035 CF Flange Adapter, 3.375 in. Flange to 0.50 inch Female VCR Fitting	UNIVERSAL	0.0	1.0	0.0		0.0	3.375 in.	8 VCR Female	1.88 in. (48 mm)	0.41 in. (10 mm)	Show		$222
		100884037 CF Flange Adapter, 3.375 in. Flange to 0.75 inch Female VCR Fitting $632 Show	100884037 CF Flange Adapter, 3.375 in. Flange to 0.75 inch Female VCR Fitting	UNIVERSAL	0.0	1.0	0.0		0.0	3.375 in.	12 VCR Female	2.38 in. (60 mm)	0.62 in. (16 mm)	Show		$632

Show All

Specifications

Component Type

VCR Fitting Adapter
Series

Series 88
Flange Type

CF Ultra High Vacuum

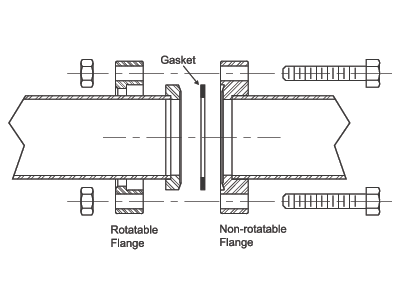

Nonrotatable Flanges

One
Bolt Holes

Thru Holes
Material

304 Stainless Steel

Features

Resources

Literature

Series 88 CF UHV Components & Fittings (399.8 kB, PDF)

Need help?

Contact an Applications Specialist by sending us an email
