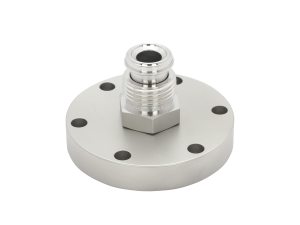

CF Ultra High Vacuum Flange to Male VCR Adapters

CF Ultra High Vacuum Flange to Male VCR Adapters

Products
Features
Resources
Contact Us

Overview

VCR® male adapters are used to connect CF ultrahigh vacuum flanges to VCR vacuum fittings.

Adapt to VCR® compatible components
Fits 1 1/3, 2 1/8, 2 3/4, or 3 3/8 in. flanges
CF flange with bolt thru-holes

See All Features

Products

		Compare	Description	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Flange Size	VCR Fitting Size	Length	Inner Diameter	Availability	Featured Item	Price		Brand
		100881050 CF Flange Adapter, 1.33 in. Flange to 0.25 inch Male VCR Fitting $100 Show	100881050 CF Flange Adapter, 1.33 in. Flange to 0.25 inch Male VCR Fitting	UNIVERSAL	0.0	1.0	0.0		0.0	1.33 in.	4 VCR Male	1.43 in. (36 mm)	0.19 in. (5 mm)	Show		$100
		100882031 CF Flange Adapter, 2.125 in. Flange to 0.25 inch Male VCR Fitting $316 Show	100882031 CF Flange Adapter, 2.125 in. Flange to 0.25 inch Male VCR Fitting	UNIVERSAL	0.0	1.0	0.0		0.0	2.125 in.	4 VCR Male	1.50 in. (38 mm)	0.19 in. (5 mm)	Show		$316
		100882034 CF Flange Adapter, 2.125 in. Flange to 0.50 inch Male VCR Fitting $286 Show	100882034 CF Flange Adapter, 2.125 in. Flange to 0.50 inch Male VCR Fitting	UNIVERSAL	0.0	1.0	0.0		0.0	2.125 in.	8 VCR Male	1.69 in. (43 mm)	0.41 in. (10 mm)	Show		$286
		100882035 CF Flange Adapter, 2.125 in. Flange to 0.75 inch Male VCR Fitting $624 Show	100882035 CF Flange Adapter, 2.125 in. Flange to 0.75 inch Male VCR Fitting	UNIVERSAL	0.0	1.0	0.0		0.0	2.125 in.	12 VCR Male	2.19 in. (56 mm)	0.62 in. (16 mm)	Show		$624
		100883055 CF Flange Adapter, 2.75 in. Flange to 0.25 inch Male VCR Fitting $109 Show	100883055 CF Flange Adapter, 2.75 in. Flange to 0.25 inch Male VCR Fitting	UNIVERSAL	0.0	1.0	0.0		0.0	2.75 in.	4 VCR Male	1.50 in. (38.1 mm)	0.19 in. (5 mm)	Show		$109
		100883056 CF Flange Adapter, 2.75 in. Flange to 0.50 inch Male VCR Fitting $206 Show	100883056 CF Flange Adapter, 2.75 in. Flange to 0.50 inch Male VCR Fitting	UNIVERSAL	0.0	1.0	0.0		0.0	2.75 in.	8 VCR Male	1.69 in. (43 mm)	0.41 in. (10 mm)	Show		$206
		100883059 CF Flange Adapter, 2.75 in. Flange to 0.75 inch Male VCR Fitting $214 Show	100883059 CF Flange Adapter, 2.75 in. Flange to 0.75 inch Male VCR Fitting	UNIVERSAL	0.0	1.0	0.0		0.0	2.75 in.	12 VCR Male	2.19 in. (56 mm)	0.62 in. (16 mm)	Show		$214
		100884032 CF Flange Adapter, 3.375 in. Flange to 0.25 inch Male VCR Fitting $525 Show	100884032 CF Flange Adapter, 3.375 in. Flange to 0.25 inch Male VCR Fitting	UNIVERSAL	0.0	1.0	0.0		0.0	3.375 in.	4 VCR Male	1.80 in. (46 mm)	0.19 in. (5 mm)	Show		$525
		100884034 CF Flange Adapter, 3.375 in. Flange to 0.50 inch Male VCR Fitting $253 Show	100884034 CF Flange Adapter, 3.375 in. Flange to 0.50 inch Male VCR Fitting	UNIVERSAL	0.0	1.0	0.0		0.0	3.375 in.	4 VCR Male	1.88 in. (48 mm)	0.41 in. (10 mm)	Show		$253
		100884036 CF Flange Adapter, 3.375 in. Flange to 0.75 inch Male VCR Fitting $612 Show	100884036 CF Flange Adapter, 3.375 in. Flange to 0.75 inch Male VCR Fitting	UNIVERSAL	0.0	1.0	0.0		0.0	3.375 in.	0.75 in. Male			Show		$612

Show All

Specifications

Component Type

VCR Fitting Adapter
Series

Series 88
Flange Type

CF Ultra High Vacuum

Nonrotatable Flanges

One
Bolt Holes

Thru Holes
Material

304 Stainless Steel

Features

Resources

Literature

Series 88 CF UHV Components & Fittings (399.8 kB, PDF)
