Cirrus™ 3-XD High Sensitivity Atmospheric Systems with V-lens™ Technology
Overview
Designed for researchers and engineers who need to work beyond the limits of conventional quadrupole MS technology, the CirrusTM 3-XD system delivers a unique analytical advantage for eXtreme Detection. The proven Cirrus Quadrupole MS platform utilizes patented-V-lens™ ion optics with a double-focussing and deflection capability to produce a consistently low baseline for any gas species for trace level detection with greater clarity and confidence than ever before. With its versatile, compact design and powerful, automatable software control, the Cirrus 3-XD system provides a new level in performance, robustness, and ease of use for the most challenging trace gas analyses.
- Gas-independent low baseline with robust detection to low ppb levels
- Detection of concentrations from trace levels (low ppb) to high abundance
- Unique oven design offers stable and reliable temperature performance
- Automated variable pressure inlet enables accurate profiling of pure gases and gas mixtures

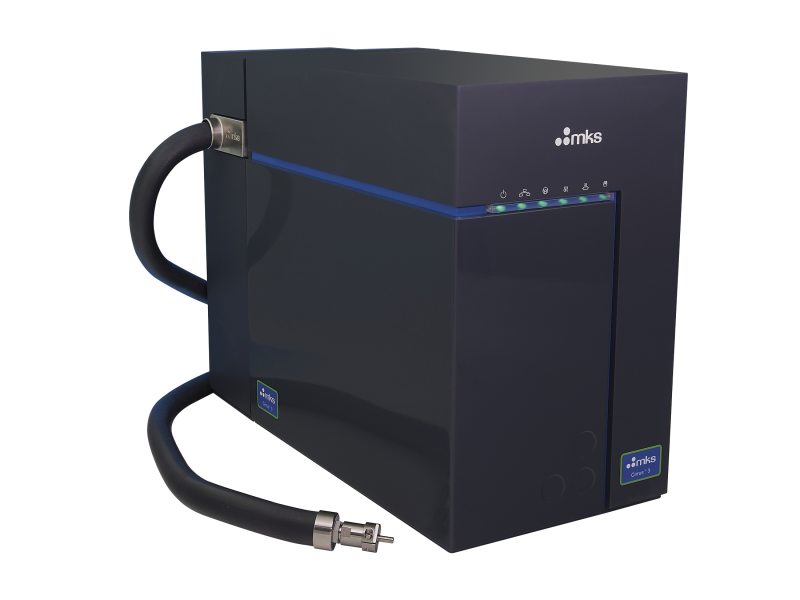

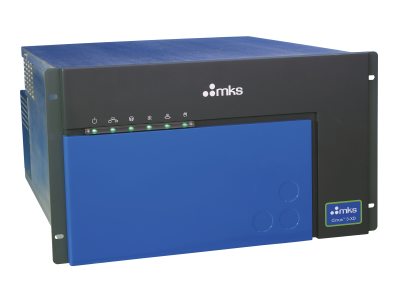

- Convenient benchtop and rack-mount configurations
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
CIRRUS-3-XD Atmospheric Gas Analyzer, Quadrupole Mass Spectrometry, Cirrus 3-XD, V-lens |
|
Specifications
-
Mass Range1 to 100, 100HP, 200 or 300 amu options
-
Minimum Detectable ConcentrationGas & Mass Independent
minimum detectable concentration 3 sigma baseline noise is <15 ppb -
Electron Energy & Emission CurrentOperator variable
-
Operating Temperature5° to 35°C
-
Maximum Operating Conditions20% to 80% RH (non-condensing)
-
Bake Out Temperature180°C
-
Inlet2.0 m long with 1/4 inch Swagelok® end connection, heated to 150°C
-
Gas Consumption20 ml/min
-
Sample Pressure1 bar nominal
-
Pumping SystemHigh compression turbo-molecular pump with internal 4-stage diaphragm backing pump standard, corrosive gas pumping with all internal pumps optional
-
Automated Inlet Pressure ControllerA 640 (Baratron® capacitance manometer based) automated inlet pressure controller is available as an option
-
PC RequirementsMicrosoft® 32 bit or 64 bit Windows® 7 or 10
-
Interfaces1 x LAN port required
-
I/O Capability4 analog inputs (-11 to +11 volt, 22 bit)
2 analog outputs (0-10 volt, 12 bit)
16 TTL digital I/O -
Power Requirements100-240 VAC/50-60 Hz
-
ComplianceCE
