Compare Description Drawings, CAD & Specs Avail. Price

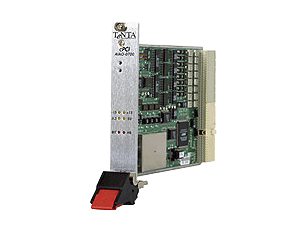

CompactPCI Analog I/O CardsAS00700-02Analog IO Card, 3U, cPCI Card Cage, 32 Inputs, 16 Outputs
$1,125

Specifications

  • Type
    AIAO-0700 3U Analog Input/Output Card
  • IO Type
    Number of I/O: 48 points (32 input, 16 output)
    Input: Single ended
    Output: Single ended, ±5 mA max
    Range: Software-selectable - 0 to 10 V, -5 to +5 V
    Resolution: 12-bit
    Accuracy: Full-scale of ±0.2%, Zero Volt - ±5 mV
  • Bus
    Compact PCI, 32 bit (16 bit data transfer) 33 MHz
  • Plug and Play
    Supports auto-recognition of board on power-on and plug-in; includes Device ID, Vendor ID, and configuration
  • Power Requirements
    Digital Section: +3.3VDC @ 20 mA, +5VDC @ 1.36 mA from J1
    I/O Section: ±15VDC @ 200 mA max generated from on-board 6W DC/DC
  • Form Factor
    Plug in Eurocard, 3U Height, 8 HP Width (1 slot), IEEE (1101.1, 101.10 and P1101.11)
  • Front Panel Dimension
    128.5 mm Height x 20.32 mm Depth x 2.5 mm Thickness.
  • PCB Dimensions
    100 mm (3.9370 in.) Height x 160 mm (6.2992 in.) Depth x 1.6 mm (0.0629 in.) Thickness
  • Rear Connectors
    Metric 2.0mm grid, female connector type A is used for J1 (cPCI BUS) and J2 (Signal distribution).
  • Front Panel Indicators
    3.3V, 5V, -15V, +15V, HB, BIT
  • IO Protection
    2 A fuse on each output driver
  • Protection
    Watchdog Timer: Disables outputs (sets all outputs to inactive 0V on timeout)
  • Response Time
    Write to Output Change - 100 us max
    Input Change to Read - 150 us max
  • Operating Temperature
    0 to 70°C
  • Storage Temperature
    -40 to 85°C
  • Humidity
    5-95% non-condensing
  • Weight
    200 g (0.44 lb)
