CompactPCI Digital I/O Cards

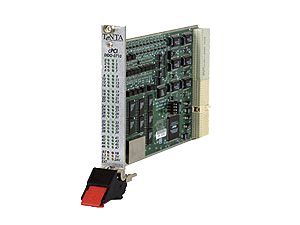

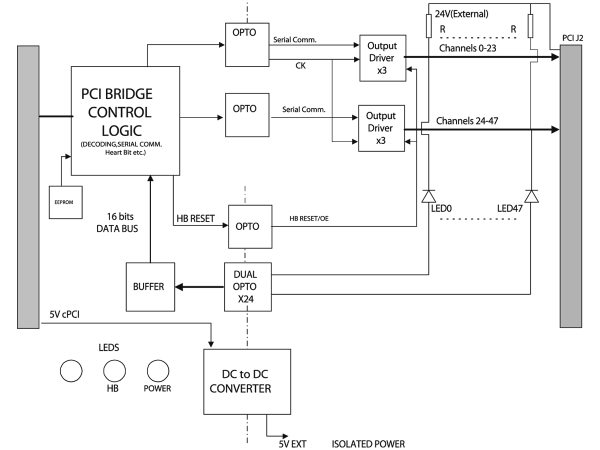

Our 3U digital input/output card is a general-purpose data acquisition control card containing 48 digital I/O points. Each pin can be used as digital input or digital output. If used as an output, the point can be read back in for verification. The I/O and power signals are distributed through J2 rear connector. The board form factor, physical dimensions and BUS interface comply with CompactPCI (cPCI) Specification PICMG® 2.0 R2.1.
- 48 isolated digital input or output points
- 24 VDC, 200 mA per point
- Current sinking, NPN
- Optically-isolated digital I/O
- Isolated power from cPCI bus and external 24 VDC
- LED indication for each I/O point See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | AS00710-01Digital IO Card, 3U, cPCI Card Cage, 48 Sink Inputs or Outputs |
Specifications
- TypeDIDO-0710 3U Digital Input/Output Card
- BusCompact PCI, 32 bit (16 bit data transfer) 33MHz
- OutputsCurrent sinking, active low. Output, 200 mA max
- InputsCurrent sinking, active low. Active input, 6 mA.
- Plug and PlaySupports auto-recognition of board on power-on and plug-in; includes Device ID, Vendor ID, and configuration
- Form FactorPlug in Eurocard, 3U Height, 8 HP Width (1 slot), IEEE (1101.1, 101.10 and P1101.11)
- Front Panel Dimension128.5 mm Height x 20.32 mm Depth x 2.5 mm Thickness.
- PCB Dimensions100 mm (3.9370 in.) Height x 160 mm (6.2992 in.) Depth x 1.6 mm (0.0629 in.) Thickness
- Rear ConnectorsMetric 2.0mm grid, female connector type A is used for J1 (cPCI BUS) and J2 (Signal distribution).
- Front Panel Indicators48 I/O points, 3.3V, 5V, 5V ext, 24V, HB, BIT
- IO Protection2A fuse on each output driver. Suppression diode on each digital I/O port.
- ProtectionWatchdog Timer: Disables outputs (sets all outputs to inactive +24V on timeout)
- Response TimeWrite to Output Change - 100 us max
Input Change to Read - 150 us max - Digital Section+3.3 VDC @ 20 mA, +5 VDC @ 220 mA from J1
- I/O Section+24 VDC from J2, +5 V ExT generated on-board
- Number of I/O48 points (input or output)
- Operating Temperature0 to 70°C
- Storage Temperature-40 to 85°C
- Humidity5-95% non-condensing
- Weight200 g (0.44 lb)
