CompactPCI Digital I/O Cards
Model: AS00710-01
CompactPCI Digital I/O Cards
Model: AS00710-01
Overview
Overview

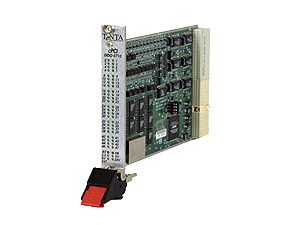

The AS00710-01 Digital Input/Output Card is a general-purpose data acquisition control card containing 48 digital I/O points. Each pin can be used as digital input or digital output. If used as an output, the point can be read back in for verification. The I/O and power signals are distributed through J2 rear connector. The board form factor, physical dimensions and BUS interface comply with CompactPCI (cPCI) Specification PICMG® 2.0 R2.1.
Technical Specs
- TypeDigital I/O Card
- BusCompact PCI, 32 bit (16 bit data transfer) 33MHz
- Outputs48
- Inputs48
- Plug and PlaySupports auto-recognition of board on power-on and plug-in, includes Device ID, Vendor ID, and configuration
- Power RequirementsDigital Section: +3.3 VDC @ 20 mA, +5VDC @ 220 mA from J1, I/O Section: +24VDC from J2, +5V ExT generated on-board
- Form FactorPlug in Eurocard, 3U Height, 8 HP Width (1 slot), IEEE (1101.1, 101.10 and P1101.11)
- Front Panel Dimension128.5 x 20.32 x 2.5 mm (height x depth x thick)
- PCB Dimensions100 x 160 x 1.6 mm (3.9370 x 6.29920.0629 in.) (height x depth x thick)
- Rear ConnectorsMetric 2.0mm grid, female connector type A is used for J1 (cPCI BUS) and J2 (Signal distribution)
- Front Panel Indicators48 I/O points, 3.3V, 5V, 5V ext, 24V, HB, BIT
- IO Protection2A fuse on each output driver. Suppression diode on each digital I/O port
- Operating Temperature0 - 70°C
- Storage Temperature-40 - 85°C
- Humidity5 - 95% non-condensing
- Weight200 g (0.44 lb)
